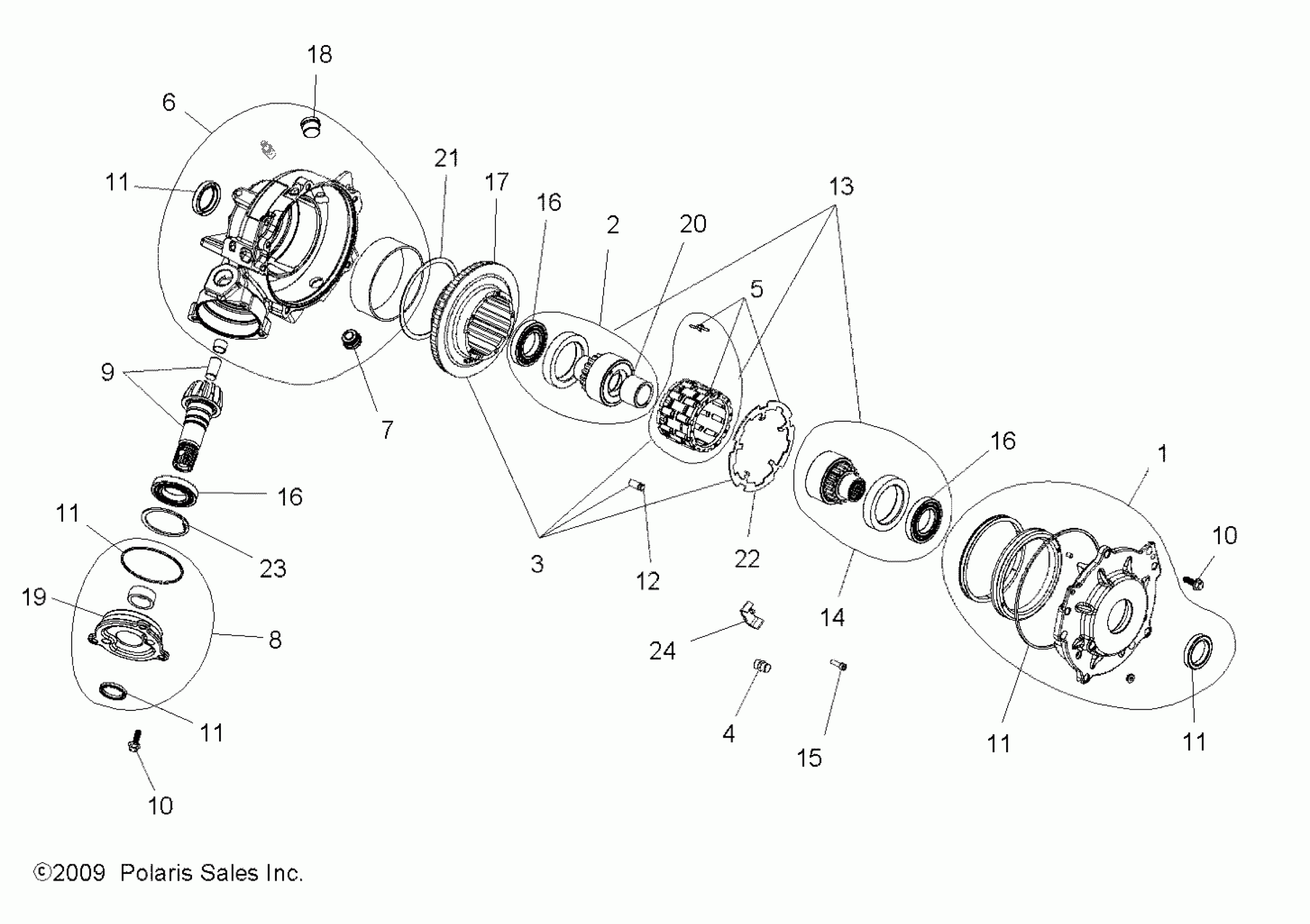

Polaris SPORTSMAN 500 HO - A10MH50AJ/AX/AZ DRIVE TRAIN, FRONT GEARCASE (Built 11/01/09 and Before) - A10MH50AJ/AX/AZ (49ATVGEARCASE1332772) Diagram

Asm., Gearcase, Front [Incl. All]

1332772

Unavailable

Asm., Cover, Output [Incl. Coil, Thrust Plate, O-Ring, Seal, Insert, set Screw]

3234402

Unavailable

Asm., Hub, Race/Output [Incl. Bearing, Hub Asm., Spacer]

-------

Unavailable

Asm., Clutch [Incl. Armature Plate, Clutch Housing/Ring Gear, Roll Cage]

3234897

$414.99

ASM., THRUST BUTTON [INCL. SEAL]

3234594

Unavailable

Asm., Roll Cage [Incl. Roll Cage, Armature Plate]

3234466

$209.99

Asm., Roll Cage, Aluminum, NT [Opt]

3235263

$570.70

Asm., Gearcase [Incl. Bushings, Seal, Vent, Plugs]

3234411

$562.31

Asm., Drain Plug, Magnetic [Incl. Magnet]

3234412

$39.99

Asm., Cover, Input [Incl. Bushing, O-Ring, Seal]

3234463

$115.82

Asm., Gear, Pinion [Incl. Pin]

3234415

$541.25

Kit, Bolt [Incl. All Bolts]

3234405

$27.99

Kit, Bolt [Incl. All Bolts]

3234405

$27.99

Kit, Seal Repair [Incl. All Seals, O-Rings}

3234406

$75.99

Kit, Seal Repair [Incl. All Seals, O-Rings}

3234406

$75.99

Kit, Seal Repair [Incl. All Seals, O-Rings}

3234406

$75.99

Kit, Seal Repair [Incl. All Seals, O-Rings}

3234406

$75.99

Kit, Seal Repair [Incl. All Seals, O-Rings}

3234406

$75.99

Kit, Roller, Oversized [Incl. Complete Set Rollers]

3234836

$99.99

Kit, Cage, Spring/Output Hubs [Incl. Spacer]

3234464

$514.99

Hub, Output RH [Incl. Spacer, Bearing, Hub, Bushing]

3234465

Unavailable

SET, SCREW

3234408

$27.99

Bearing

3234390

$35.99

Bearing

3234390

$35.99

Bearing

3234390

$35.99

Clutch, Housing

3234896

$299.99

PLUG, OIL FILL

3234414

Unavailable

COVER, INPUT

3234418

Unavailable

Bushing

3234436

$27.78

SPACER-RING GEAR

3234437

$19.99

PLATE, ARMATURE

3234407

$107.99

RING, RETAINING

3234416

$10.39

Plate, Thrust

3234595

Unavailable
