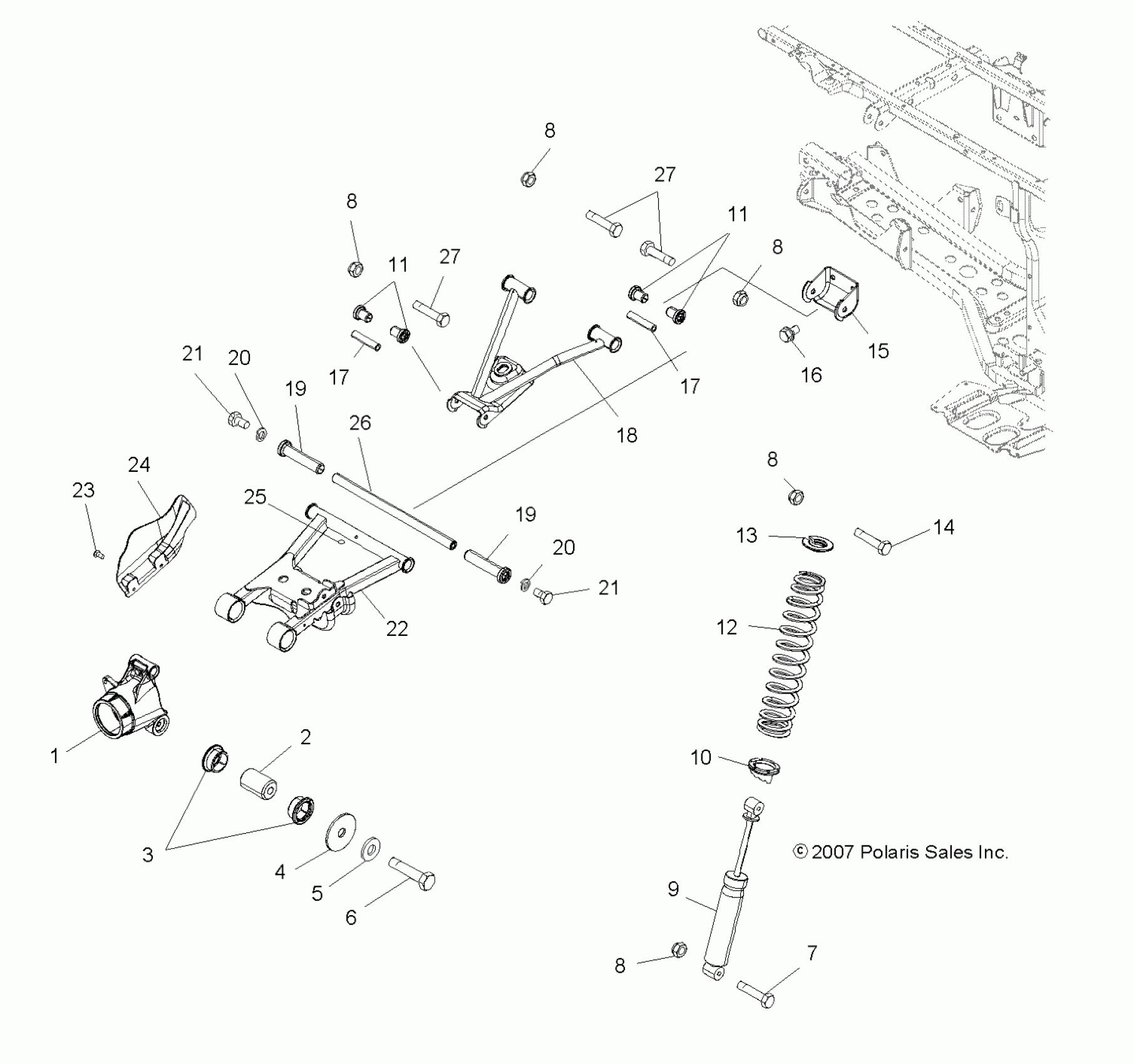

Polaris SPORTSMAN 500 HO - A08MH50AX/AZ SUSPENSION, REAR - A08MH50AX/AZ (49ATVSUSPRR08SP500) Diagram

#

Description
Price

1

CARRIER, WHEEL BEARING

5135563

$71.99

2

Bushing, Bearing Carrier

5631142

$23.16

3

Bushing, Control, Lower

5434550

$4.62

4

WASHER, FLAT

7555740

$1.59

5

WASHER-LOCK, 7/16-B

7552614

$1.59

6

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

7

Screw

7515415

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

9

SHOCK, REAR

7043100

$87.99

10

CAM, ADJUSTING, SPRING

5630551

$31.99

11

Bushing, A-Arm, Short

5434548

$2.38

11

Bushing, A-Arm, Short

5434548

$2.38

12

Spring, Compression, Rear, Black

7043091-067

$97.76

13

RETAINER-SPRING,STEEL

5251753

$10.39

14

Screw

7515433

$1.59

15

Bracket, A-Arm Pivot

5247345

$64.99

16

SCREW

7517632

$5.59

17

SHAFT, A-ARM, SHORT

5020826

$11.99

17

SHAFT, A-ARM, SHORT

5020826

$11.99

18

Arm, Control, Upper, Black, LH

1014320-067

$95.99

18

Arm, Control, Upper, Black, RH

1014321-067

$95.99

19

Bushing, A-Arm, Long

5434551

$5.01

19

Bushing, A-Arm, Long

5434551

$5.01

20

Washer, Spring Lock

7552603

$1.49

20

Washer, Spring Lock

7552603

$1.49

21

Screw

7512492

$1.49

21

Screw

7512492

$1.49

22

CONTROL, LOWER, BLACK, RH

1015889-067

$119.99

22

CONTROL, LOWER, BLACK, LH

1015888-067

$119.99

23

Screw

7512084

$1.49

24

SHIELD, CV REAR, BLACK, LH

5435008-070

$23.99

24

SHIELD, CV REAR, BLACK, RH

5435009-070

$23.99

25

Fitting, Lubrication

7080433

$1.49

26

Shaft, A-Arm

5133806

$30.79

27

BOLT

7515472

$2.39

27

BOLT

7515472

$2.39
