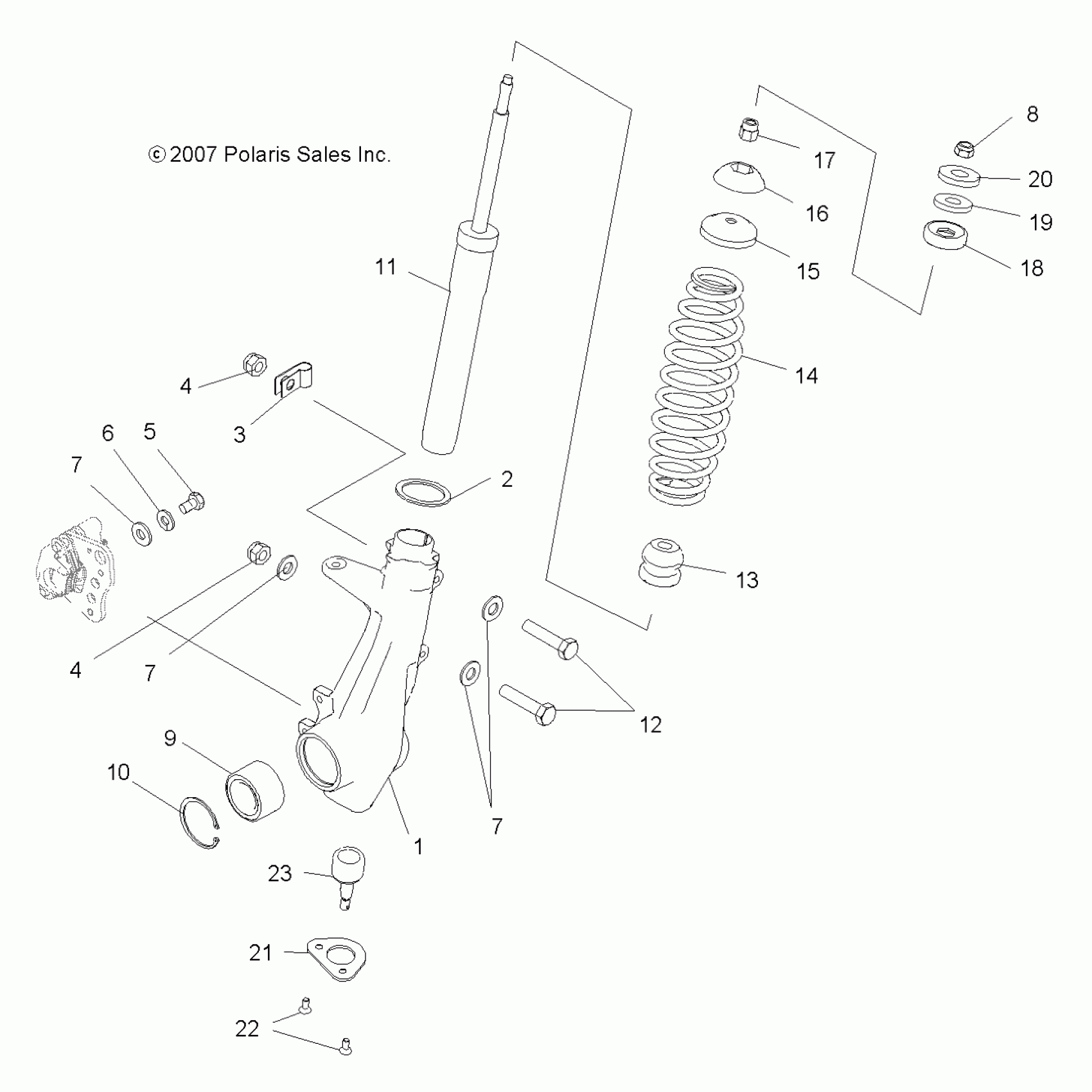

Polaris SPORTSMAN 500 HO - A08MH50AX/AZ SUSPENSION, FRONT STRUT - A08MH50AX/AZ (49ATVSTRUT08SP500) Diagram

ASM., HUBSTRUT, RH [INCL. 9,10,21,22,23]

1822826

$303.99

ASM., HUBSTRUT, LH [INCL. 9,10,21,22,23]

1822825

$303.99

WASHER-2.06X2.62X.105-Y

5211115

$3.99

CLAMP-CABLE

7080367

$2.39

NUT-5/16-18 NYLOK-Y

7542324

$1.49

NUT-5/16-18 NYLOK-Y

7542324

$1.49

SCREW, CAP

7512365

$1.49

WASHER, SPRING LOCK

7552901

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

Bearing, Axle Tube, Hubstrut [Built 6/30/08 and Before]

3514342

Unavailable

BEARING-WHEEL, 35X64X37MM [Built 7/01/08 and After]

3514634

$39.99

RING, RETAINING

7710507

$2.39

STRUT, FRONT

7041762

$123.99

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

BUMPER-MCU,17.8MM ID

5412665

$6.39

SPRING, COMPRESSION, BLACK

7043247-067

$91.99

RETAINER-SPRING,STRUT

5243364

$19.99

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

SPACER

5132062

$19.99

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

SPACER-RUBBER

5810291

$3.99

WASHER

7555749

$1.49

BRACKET-BALL JOINT

5211121

$31.99

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

BALL-JOINT,GREASELESS,STRUT

7061158

$75.99
