ENGINE, COOLING SYSTEM - A08MH50AX/AZ (49ATVCOOL08SP500)

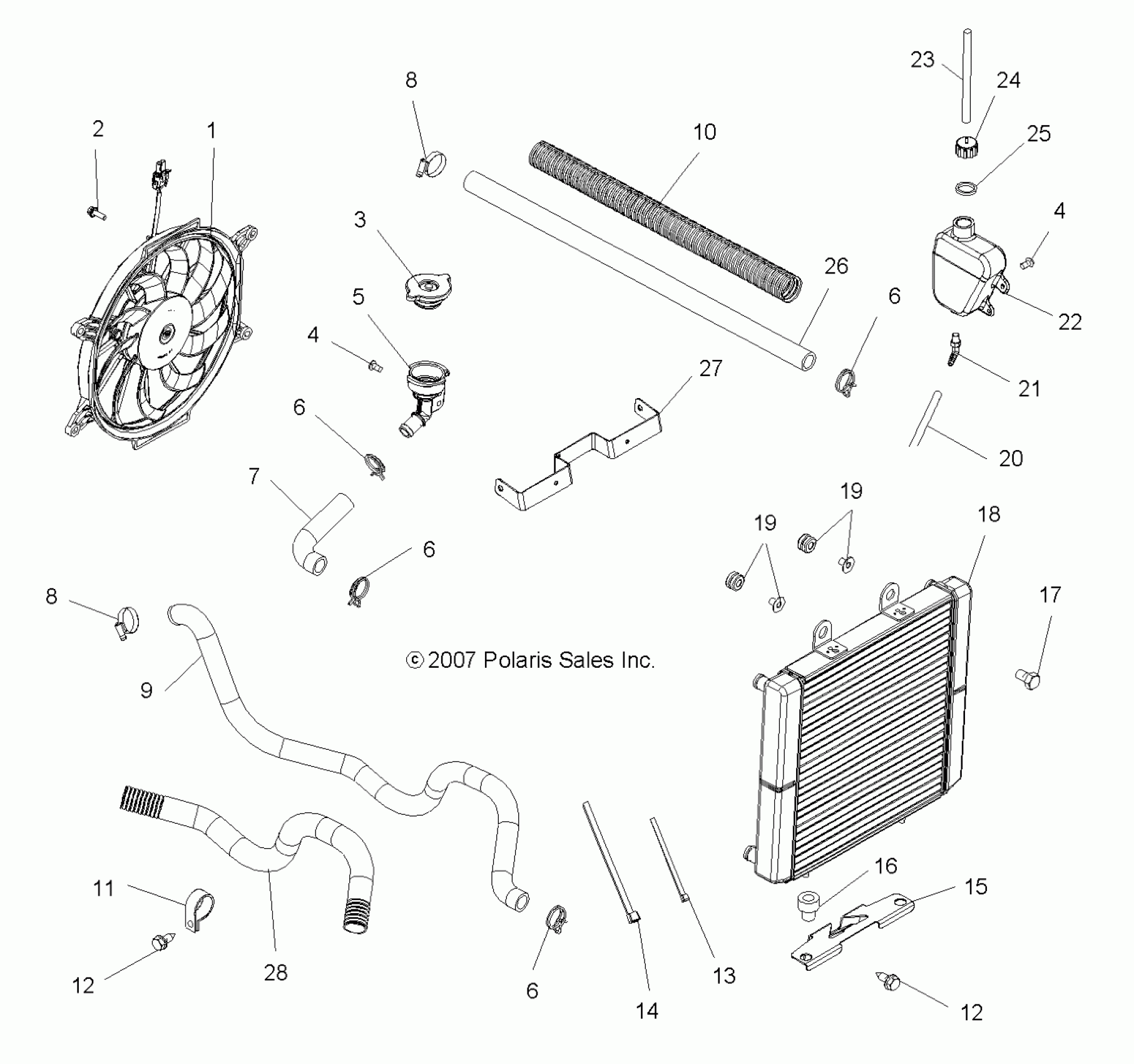

Polaris SPORTSMAN 500 HO - A08MH50AX/AZ ENGINE, COOLING SYSTEM - A08MH50AX/AZ (49ATVCOOL08SP500) Diagram
#
Description
Price
1
Asm., Fan and Motor
2410383
$189.59
2
Bolt
7517975
$5.59
3
Cap, Pressure
1240044
Unavailable
4
Screw
7512084
$1.49
4
Screw
7512084
$1.49
5
NECK, FILLER
5412402
$23.99
6
Clamp
7080826
$4.79
6
Clamp
7080826
$4.79
6
Clamp
7080826
$4.79
6
Clamp
7080826
$4.79
7
Hose, Filler Neck
5412405
Unavailable
8
CLAMP, HOSE
7080696
$5.59
8
CLAMP, HOSE
7080696
$5.59
9
Hose, Engine, Lower
5412404
$61.77
10
Guard, Hose, Plastic
5521550
Unavailable
11
Clamp, Hose
7080908
$8.99
12
SCREW
7517386
$1.49
12
SCREW
7517386
$1.49
13
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
14
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
$2.41
15
Bracket, Radiator, Lower, Black
5247047-067
$74.99
16
BUSHING-MOUNT,LOWER RADIATOR
5410584
$5.59
17
Screw
7515179
$2.39
18
Radiator, Crossflow
1240305
$409.26
19
ASM., GROMMET AND INSERT
5411975
$3.19
19
ASM., GROMMET AND INSERT
5411975
$3.19
20
Line, Fuel
8450003-1525
$84.99
21
FITTING, 90 DEGREE
7052065
$7.19
22
TANK-SURGE
5436936
$75.99
23
LINE, FUEL
8360009-600
Unavailable
24
CAP, OVERFLOW BOTTLE W/FITTING
5437635
$4.79
25
GASKET-OVERFLOW CAP
5810279
$2.41
26
Hose, Engine, Upper
5412403
$54.04
27
Bracket, Radiator, Upper, Black
5246754-067
$54.99
28
Guard, Hose
5521750
Unavailable
