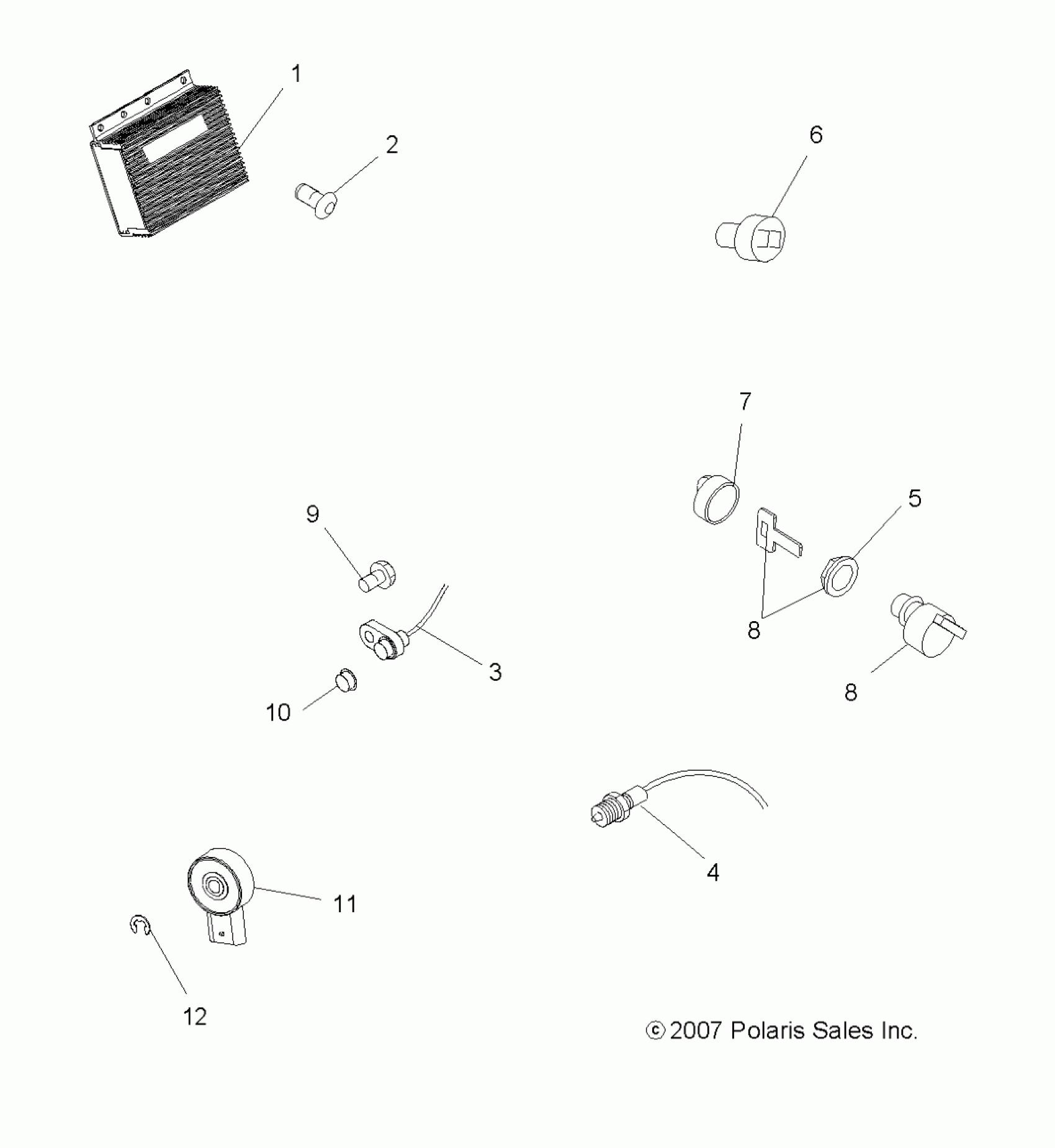

Polaris SPORTSMAN 500 HO - A08MH50AX/AZ ELECTRICAL, SWITCHES, SENSORS and ECM - A08MH50AX/AZ (49ATVELECT08SP500) Diagram

Control, Module

4011568

$586.65

SCREW

7512024

$4.76

Sensor, Hall Effect

4010298

$117.37

Sensor, Thermo [Engine Thermal]

3089246

Unavailable

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

SWITCH [BRAKE PRESSURE]

4110164

$204.24

KEY SWITCH KEY COVER

5433534

$13.75

SWITCH, KEY, 3 POSITION [INCL. 5,7, AND KEY]

4012165

$109.27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

SWITCH, KEY, 3 POSITION [INCL. 5,7, AND KEY]

4012165

$109.27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

Screw

7517658

$5.56

CAP

5132382

$24.27

SWITCH [GEAR POSITION]

3233835

$142.49

RING, RETAINING

3233834

$10.32
