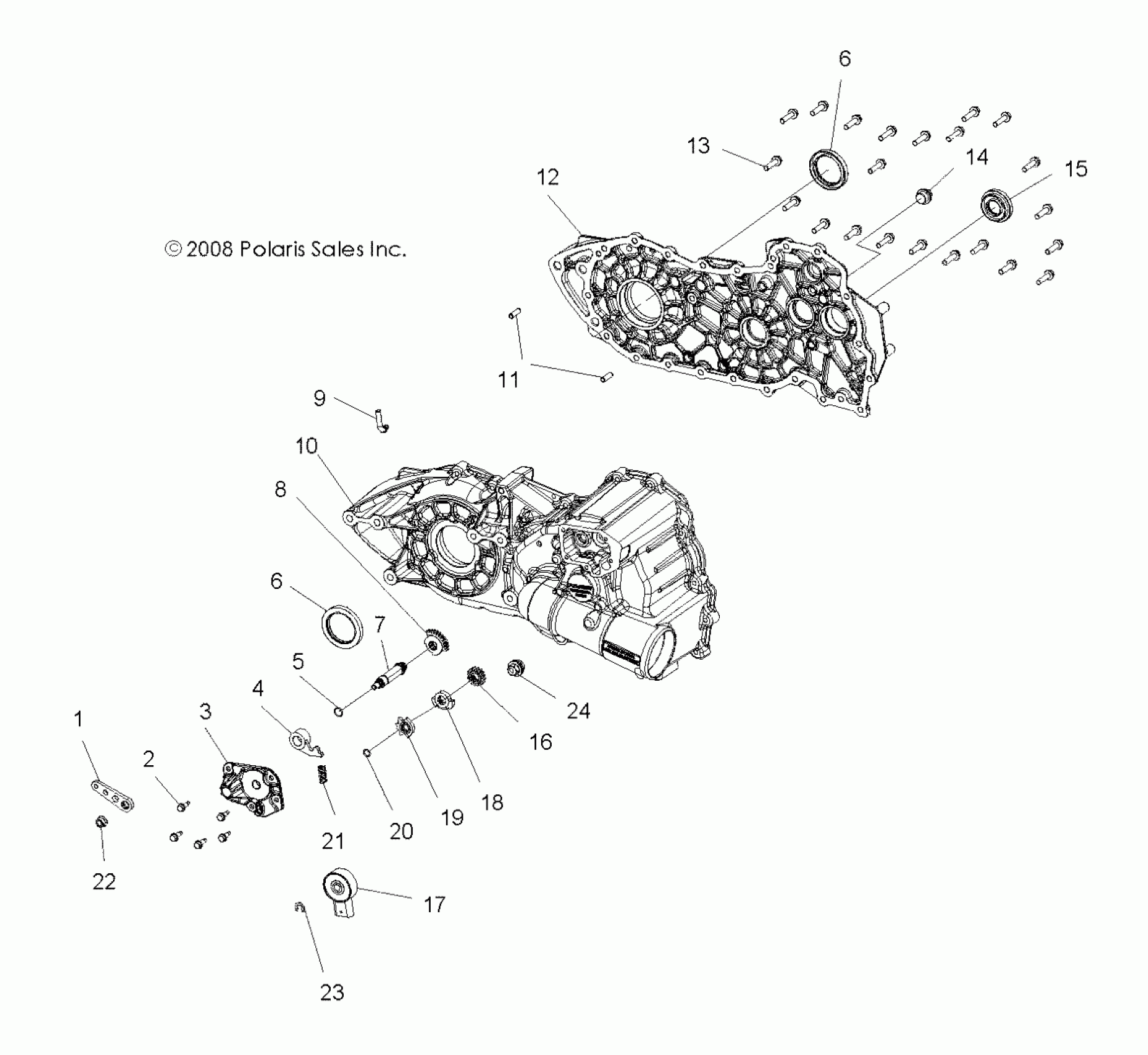

Polaris SPORTSMAN 500 HO - A08MH50AX/AZ DRIVE TRAIN, MAIN GEARCASE - A08MH50AX/AZ (49ATVGEARCASE09SP500) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1332626

Unavailable

1

BELLCRANK

3234584

$23.99

2

SCREW

3233826

$9.59

3

Cover, Gear

3234188

$107.99

4

Pawl, Detent

3233829

$31.99

5

O-RING

3233869

$5.59

6

SEAL, TRIPLE LIP

3233878

$32.37

6

SEAL, TRIPLE LIP

3233878

$32.37

7

SHAFT, SHIFT

3233831

$59.99

8

GEAR-SECTOR,31T

3233832

$31.99

9

TUBE, VENT

3234230

$9.59

10

Gearcase, RH

3234242

$609.99

11

PIN, DOWEL

3233247

$7.19

12

Gearcase, LH

3234056

Unavailable

13

SCREW

3234114

$7.19

14

PLUG

3233794

$15.19

15

Seal, Dual Lip

3233874

$31.99

16

GEAR, 16T

3233839

$31.99

17

SWITCH

3233835

Unavailable

18

DISC, LOCKOUT

3234081

Unavailable

19

Star, Detent

3233909

$23.99

20

O-RING

3233076

$6.39

21

SPRING, COMPRESSION

3234578

$12.79

22

NUT, LOCK

3233961

$2.79

23

RING, RETAINING

3233834

$10.39

24

PLUG, MAGNETIC

3234529

Unavailable
