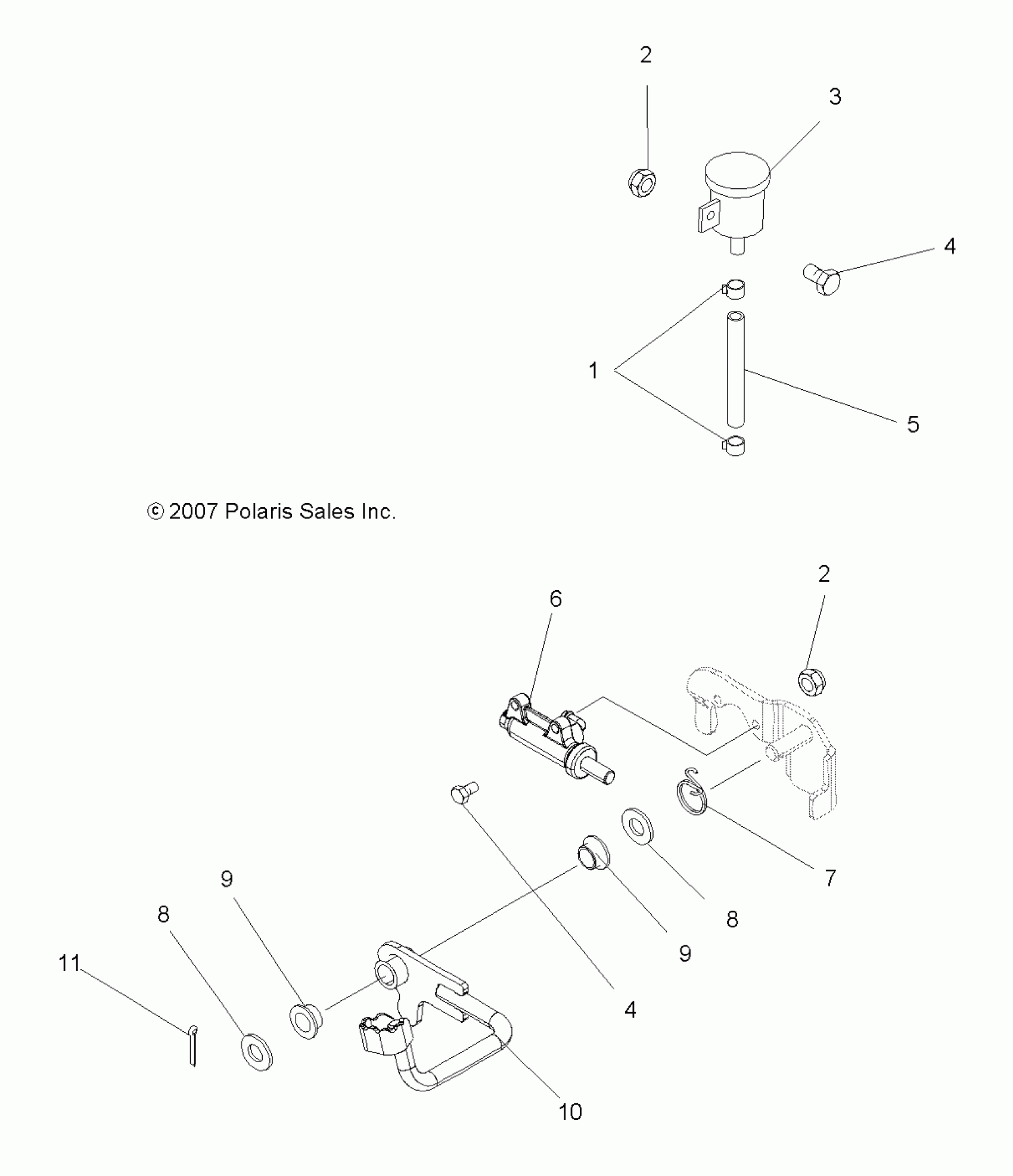

Polaris SPORTSMAN 500 HO - A08MH50AX/AZ BRAKES, PEDAL and REAR MASTER CYLINDER - A08MH50AX/AZ (49ATVBRAKEFOOT08SP500) Diagram

#

Description
Price

1

HOSE CLAMP, RED

7080003

$1.19

2

NUT, NYLOK, FLANGED

7542153

$1.59

2

NUT, NYLOK, FLANGED

7542153

$1.59

3

Asm., Reservoir, Brake, Rear [Incl. Cap, Diaphragm]

1930854

Unavailable

4

Bolt

7512247

Unavailable

4

Bolt

7512247

Unavailable

5

Hose, Reservoir

1910315

$14.51

6

Asm., Master Cylinder, Brake, Rear

1911113

$174.03

7

SPRING-TORSION,BRAKE

7041750

$8.89

8

WASHER

7555919

$4.99

8

WASHER

7555919

$4.99

9

BUSHING, PIVOT, PEDAL

5433189

$3.97

9

BUSHING, PIVOT, PEDAL

5433189

$3.97

10

Pedal, Brake, Black

1911047-067

$53.17

11

PIN, COTTER

7661401

$0.79
