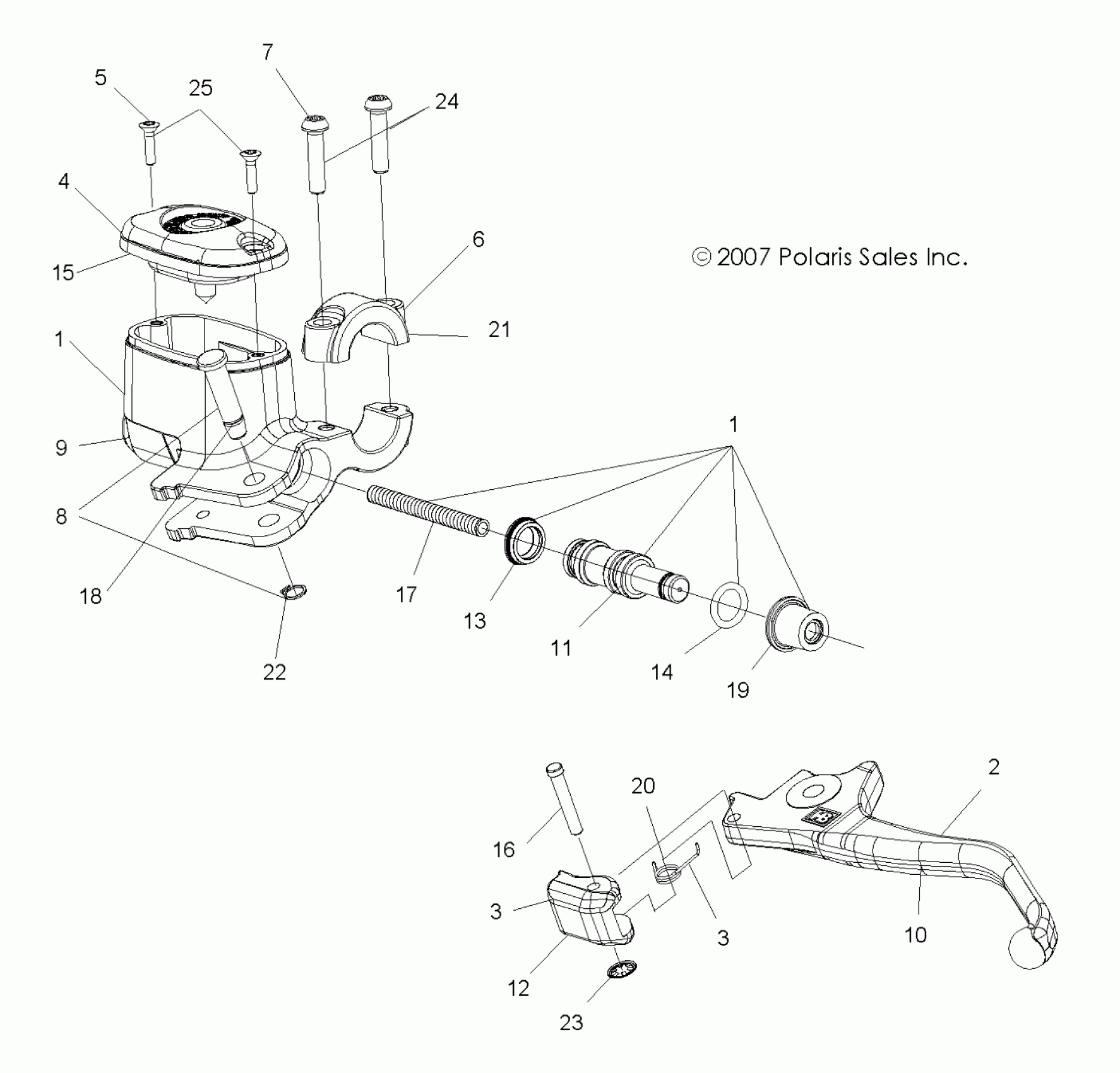

Polaris SPORTSMAN 500 HO - A08MH50AX/AZ BRAKES, FRONT LEVER and MASTER CYLINDER - A08MH50AX/AZ (49ATVMCLH08SP500) Diagram

Kit, Asm., Master Cylinder [Incl. 1-25]

2203280

Unavailable

Kit, Piston and Reservoir Body [Incl. 1,9,11,13,14,17,19]

2203052

$155.54

Kit, Piston and Reservoir Body [Incl. 1,9,11,13,14,17,19]

2203052

$155.54

Kit, Brake Lever and Park Lever [Incl. 2,12,16,18,20,22,23]

2203281

$60.70

Kit, Park Lever [Incl. 12,16,20,23]

2203054

$36.41

Kit, Park Lever [Incl. 12,16,20,23]

2203054

$36.41

Kit, Master Cylinder Cover [Incl. 15]

2203055

$84.43

Kit, Master Cylinder Cover Screws [Incl. 25]

2203056

$27.78

Kit, Clamp [Incl. 21]

2203093

$51.59

Kit, Screws and Clamp [Incl. 24]

2203058

$35.71

Kit, Pivot Pin [Incl. 18,22]

2203059

$39.68

BODY

----

Unavailable

Lever

----

Unavailable

Piston

----

Unavailable

Lever, Park Brake

----

Unavailable

Cup, Primary

----

Unavailable

O-RING

----

Unavailable

Subasm., Reservoir Cover

----

Unavailable

Pin, Pivot, Park Lever

----

Unavailable

Spring, Piston Return

----

Unavailable

Pin, Pivot

----

Unavailable

BOOT, DUST

----

Unavailable

Spring, Park Brake Lever Return

----

Unavailable

CLAMP

----

Unavailable

Ring, Retaining, Lever

----

Unavailable

Push-On, Self Locking

----

Unavailable

Screw, Torx Button Head Cap

----

Unavailable

Screw, Cover

----

Unavailable
