- SPORTSMAN 500 HO - A08MH50AX/AZ
BODY, REAR CAB, SEAT and FOOTWELLS - A08MH50AX/AZ (49ATVCABRR08SP500)

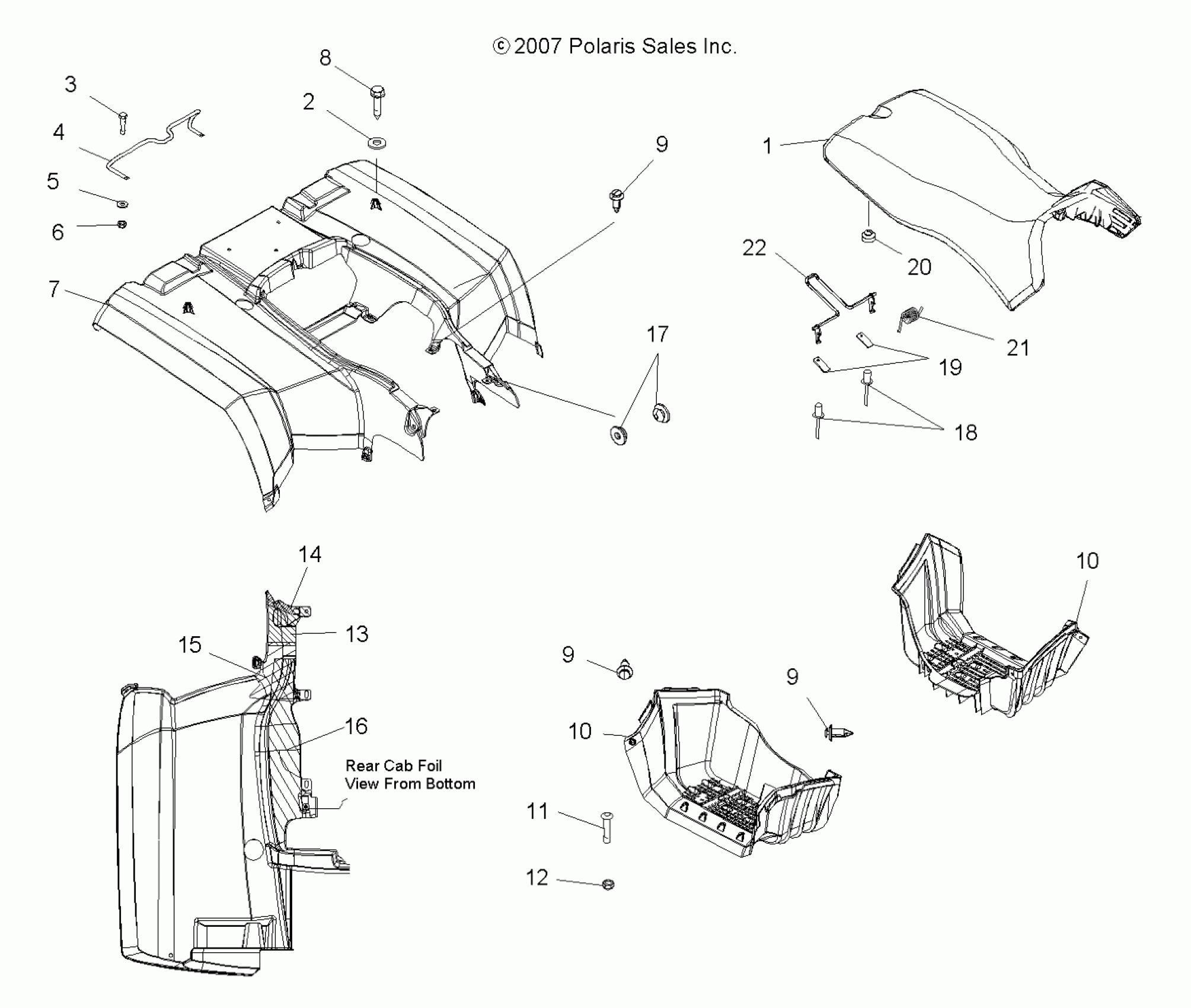

Polaris SPORTSMAN 500 HO - A08MH50AX/AZ BODY, REAR CAB, SEAT and FOOTWELLS - A08MH50AX/AZ (49ATVCABRR08SP500) Diagram
#
Description
Price
1
Asm., Seat, Black [Incl. 18-22]
2683433-070
Unavailable
1
Covering, Seat, Black
2683434-070
Unavailable
2
Washer
7555798
$1.49
3
Screw
7511930
$2.39
4
RETAINER, SEAT LATCH
5250745
Unavailable
5
WASHER
7555792
$4.79
6
Nut, Nylok
7541925
$1.49
7
CAB, REAR, INDY RED [AZ]
5436319-293
$391.99
7
CAB, REAR, SAGE BRUSH GREEN METALLIC [AX]
5436319-498
$391.99
8
Screw
7512095
$4.79
9
Rivet
7661855
$1.49
9
Rivet
7661855
$1.49
9
Rivet
7661855
$1.49
10
FOOTWELL, BLACK, LH
5436931-070
$227.99
10
FOOTWELL, BLACK, RH
5436932-070
$227.99
10
FOOTWELL, BLACK, LH
5436931-070
$227.99
10
FOOTWELL, BLACK, RH
5436932-070
$227.99
11
SCREW
7517230
$1.49
12
Nut, Nylok
7542122
$1.49
13
FOIL, FRONT
5813177
Unavailable
14
FOIL, CAB, REAR, EDGE
5813029
$48.39
15
FOIL, CAB, REAR, MIDDLE
5813030
Unavailable
16
FOIL, CAB, REAR
5813043
$31.99
17
GROMMET, RUBBER, MOUNT
5412623
$2.39
18
RIVET
7621403
$1.49
19
BRACKET, LEVER RETAINER
5211033
$29.25
20
BUMPER-RUBBER
5412067
$3.99
21
SPRING, LATCH
7041370
$9.59
22
LATCH, SEAT
1040387
$47.99
