Description

Price

1

SCREW

7515399

$1.49

1

SCREW

7515399

$1.49

2

Support, Rack, Black, RH

1014592-067

Unavailable

2

Support, Rack, Black, LH

1014591-067

$204.99

2

Support, Rack, Black, RH

1014592-067

Unavailable

2

Support, Rack, Black, LH

1014591-067

$204.99

3

BOLT, FLANGE

7518341

$4.79

3

BOLT, FLANGE

7518341

$4.79

4

PLUG, FRAME

5810467

Unavailable

5

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

6

Guard, Brush, Black

1015033-067

$304.98

7

Cover, Radiator, Front [If built after 8/01/06]

5413189

Unavailable

7

Cover, Radiator [If built before 8/01/06]

5435629

$48.56

8

Seal, Radiator Cover

5812778

Unavailable

9

Latch, RH

7081242

Unavailable

9

Latch, LH

7081241

$23.99

10

SCREW

7512076

$1.49

11

Latch, Wire

5334257

$10.03

11

Latch, Wire

5334257

$10.03

12

Shield, Side, Radiator, LH

5434314

$44.99

12

Shield, Side, Radiator, RH

5434315

Unavailable

12

Shield, Side, Radiator, LH

5434314

$44.99

12

Shield, Side, Radiator, RH

5434315

Unavailable

13

Rivet

7661855

$1.49

14

Grommet, Rubber Mount

5412504

$3.99

15

Cover, Radiator

5435046

$47.99

16

Grill, Brush Guard, Black

5247507-067

$64.99

17

Screw

7518046

$4.79

18

Panel, Bumper, Front, Black

5435357-070

$52.60

19

Screw

7518383

$3.99

20

Bolt

7518382

$4.79

21

Washer, Flat

7556341

$1.64

22

Asm., Bumper, Front, Black [Incl. Warning Decal]

2633271-070

$224.99

23

Asm., Box, Lower, Front

1202838

$364.99

24

Plug, Compartment

5412352

Unavailable

25

Cover, Strut

5435628

$35.99

26

WASHER, FLAT

7555960

$3.99

27

SCREW

7517208

$1.99

28

Seal

5521693

$27.99

29

Seal, Lid/Bumper

5521706

$28.32

30

Asm., Front Cover [Incl. 28,29 and Warning Decal]

2633162

$147.99

31

Nut, Nylok

7542122

$1.49

32

Screw

7518427

$1.49

33

Channel, Lid, Front, Flat Black Wrinkle

5247653-418

$72.60

34

Pin, Hinge, Front

5134576

$6.39

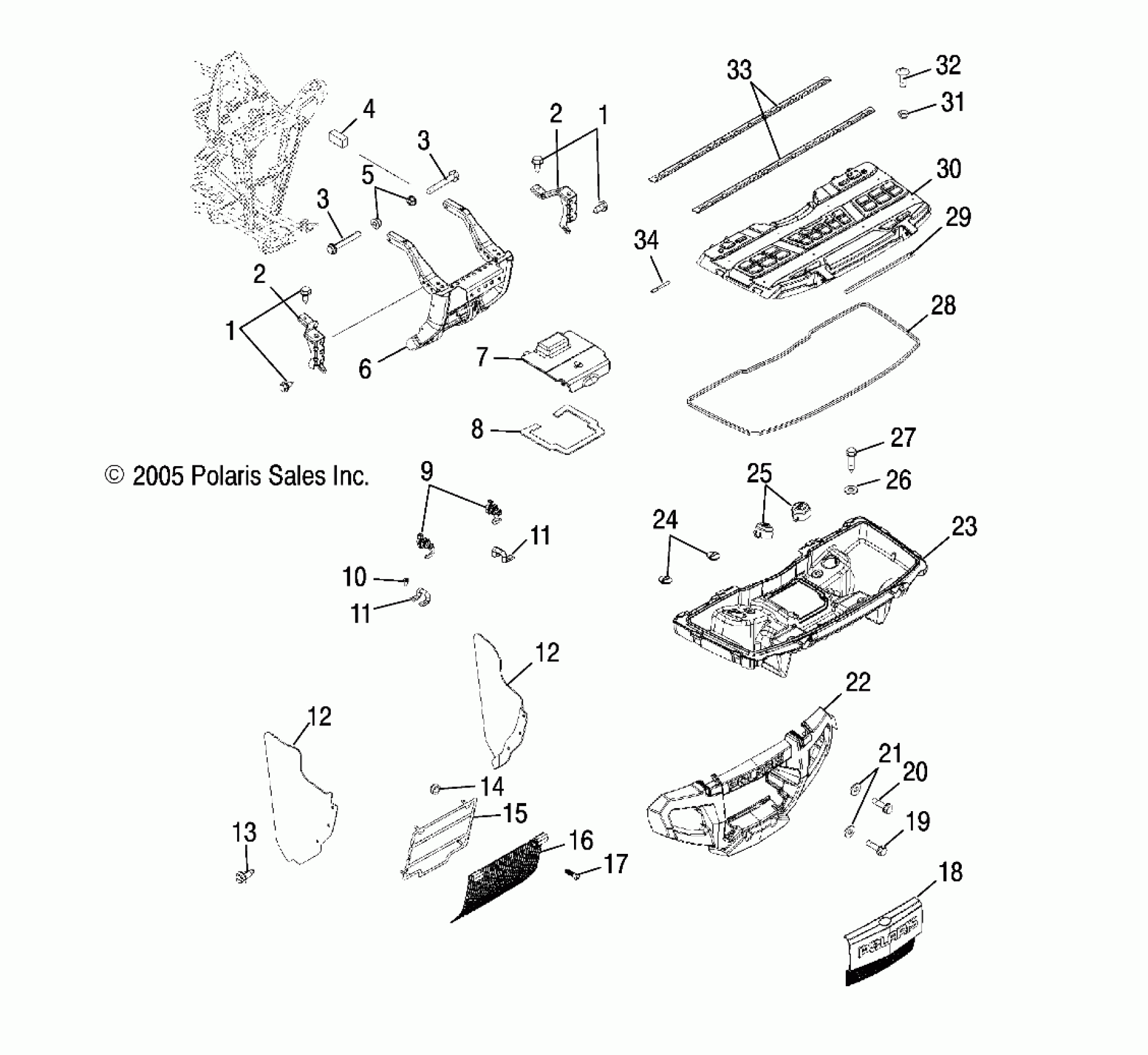

Polaris SPORTSMAN 500 HO - A06MH50AA STORAGE, FRONT and BUMPER MOUNTING - A06MH50AA/AB/AD/AF (4999200099920009A06) Diagram

SCREW

SCREW

Support, Rack, Black, RH

Support, Rack, Black, LH

Support, Rack, Black, RH

Support, Rack, Black, LH

BOLT, FLANGE

BOLT, FLANGE

PLUG, FRAME

NUT-5/16-18 HX FLG NL-Y

Guard, Brush, Black

Cover, Radiator, Front [If built after 8/01/06]

Cover, Radiator [If built before 8/01/06]

Seal, Radiator Cover

Latch, RH

Latch, LH

SCREW

Latch, Wire

Latch, Wire

Shield, Side, Radiator, LH

Shield, Side, Radiator, RH

Shield, Side, Radiator, LH

Shield, Side, Radiator, RH

Rivet

Grommet, Rubber Mount

Cover, Radiator

Grill, Brush Guard, Black

Screw

Panel, Bumper, Front, Black

Screw

Bolt

Washer, Flat

Asm., Bumper, Front, Black [Incl. Warning Decal]

Asm., Box, Lower, Front

Plug, Compartment

Cover, Strut

WASHER, FLAT

SCREW

Seal

Seal, Lid/Bumper

Asm., Front Cover [Incl. 28,29 and Warning Decal]

Nut, Nylok

Screw

Channel, Lid, Front, Flat Black Wrinkle

Pin, Hinge, Front
