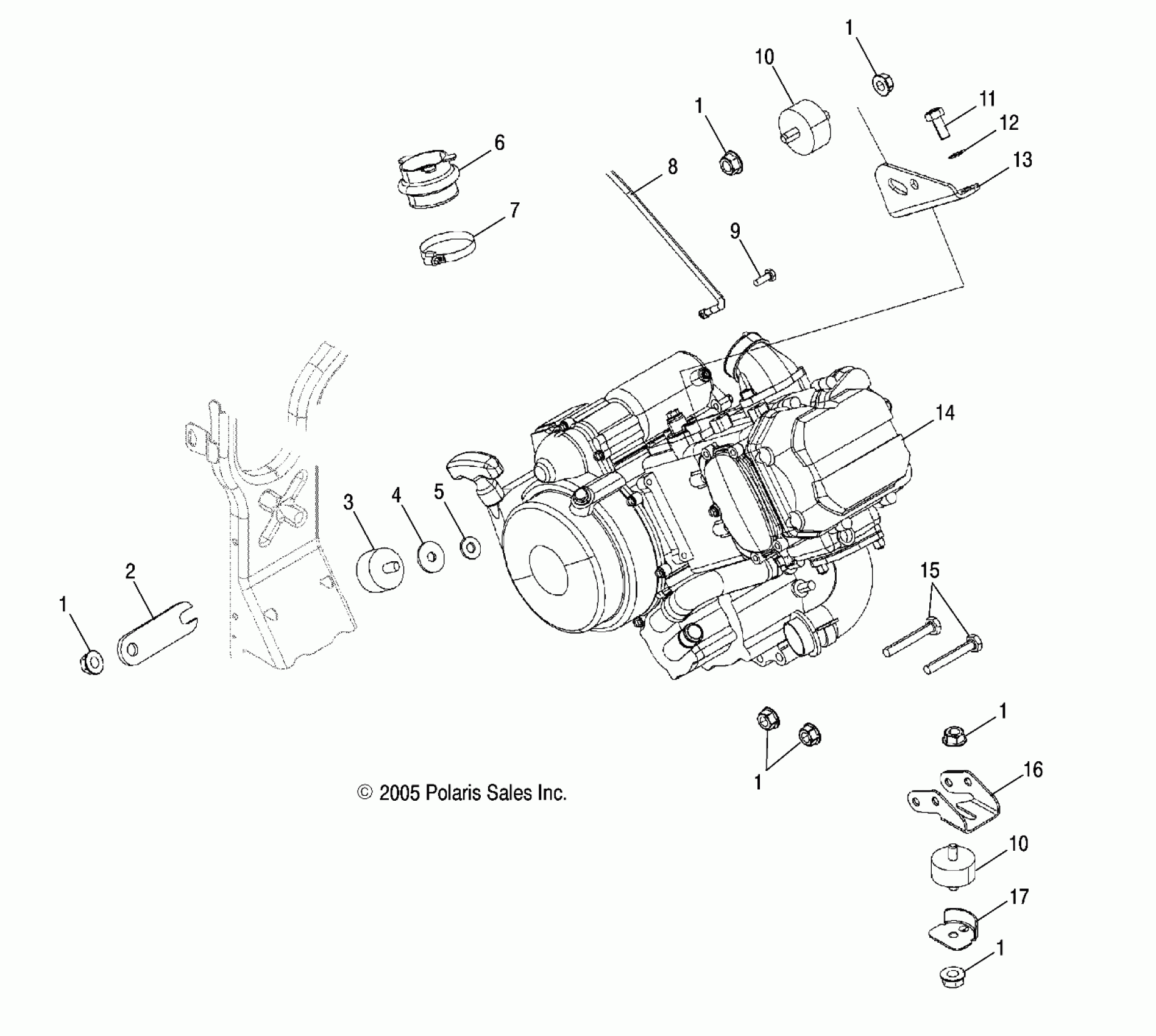

Polaris SPORTSMAN 500 HO - A06MH50AA ENGINE MOUNTING - A06MH50AA/AB/AD/AF (4999200099920009A11) Diagram

#

Description
Price

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

2

STRAP, FRAME SUPPORT, BLACK

5224658-067

Unavailable

3

Mount, Rubber, Front

3110046

Unavailable

4

WASHER, FLAT

7555815

$3.99

5

Washer, Flat

7555797

$3.99

6

BOOT, CLUTCH INTAKE

5412487

Unavailable

7

Clamp, Narrow Band

7080511

$4.79

8

CABLE, FRAME/ENGINE

4010895

$27.99

9

ASM., BOLT AND WASHER

3082038

$3.99

10

Mount, Rubber, Top

3110044

Unavailable

10

Mount, Rubber, Top

3110044

Unavailable

11

BOLT

7512315

$4.79

12

WASHER, SPRING LOCK

7552901

$1.49

13

Mount, Engine, Top

5241453

$7.99

14

Engine, Short Block, EH500PLE137 NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f

1203069

Unavailable

15

BOLT

7518415

$4.79

16

Mount, Engine, Front [If built before 7/25/05]

5241150

Unavailable

16

Mount, Engine, Front [If built after 7/25/05]

5249873

$31.35

17

BRACKET, TORQUE STOP

5245043

$15.83
