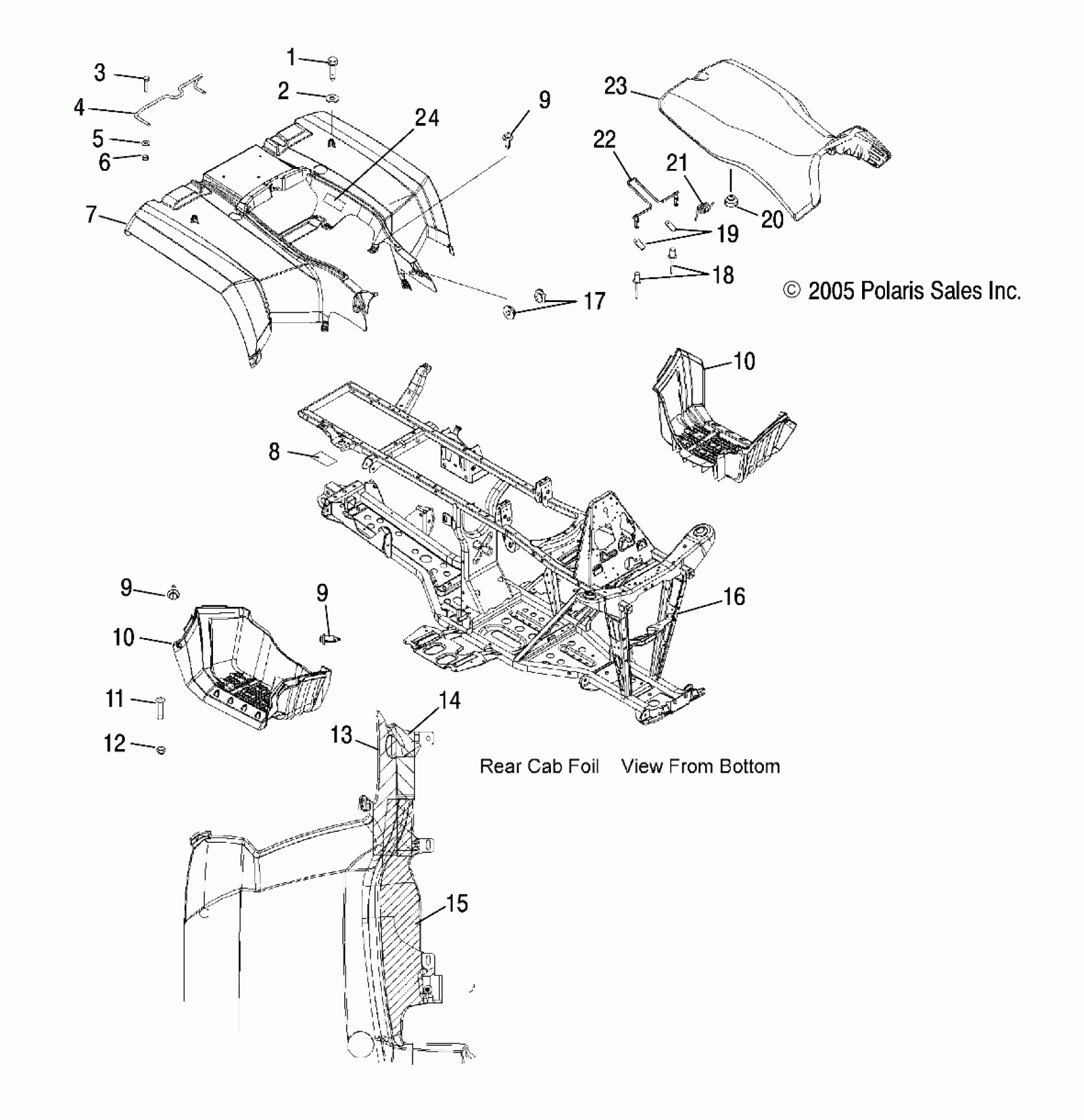

Polaris SPORTSMAN 500 HO - A06MH50AA CAB, REAR and SEAT - A06MH50AA/AB/AD/AF (4999200099920009A03) Diagram

#

Description
Price

1

Screw

7512095

$4.79

2

Washer

7555798

$1.49

3

Screw

7511930

$2.39

4

Retainer, Seat Latch

5246076

Unavailable

5

WASHER

7555792

$4.79

6

Nut, Nylok

7541925

$1.49

7

Cab, Rear, Indy Red [AB]

5436319-293

$391.99

7

CAB, REAR, MEDIUM YELLOW [AD]

5436319-053

$399.99

7

Cab, Rear, Sonic Blue [AF]

5436319-341

Unavailable

7

Cab, Rear, Camo Green Metallic [AA]

5436319-400

Unavailable

8

Decal, Hitch

7170911

Unavailable

9

Rivet

7661855

$1.49

9

Rivet

7661855

$1.49

9

Rivet

7661855

$1.49

10

Footwell, Black, LH

5435354-070

Unavailable

10

Footwell, Black, RH

5435355-070

Unavailable

10

Footwell, Black, LH

5435354-070

Unavailable

10

Footwell, Black, RH

5435355-070

Unavailable

11

SCREW

7517230

$1.49

12

Nut, Nylok

7542122

$1.49

13

Foil, Front, Top

5812703

Unavailable

14

Foil, Front, Bottom

5812702

Unavailable

15

Foil

5812701

Unavailable

16

Frame, Main, Black [If built after 7/25/05]

1015389-067

$961.89

16

Frame, Main, Black If built before 7/25/05]

1014536-067

$961.89

17

GROMMET, RUBBER, MOUNT

5412623

$2.39

18

RIVET

7621403

$1.49

19

BRACKET, LEVER RETAINER

5211033

$29.25

20

BUMPER-RUBBER

5412067

$3.99

21

SPRING, LATCH

7041370

$9.59

22

LATCH, SEAT

1040387

$47.99

23

Asm., Seat, Black

2683433-070

Unavailable

23

Covering, Seat, Black

2683434-070

Unavailable

24

Decal, Carburetor/Filter Information

7079902

Unavailable
