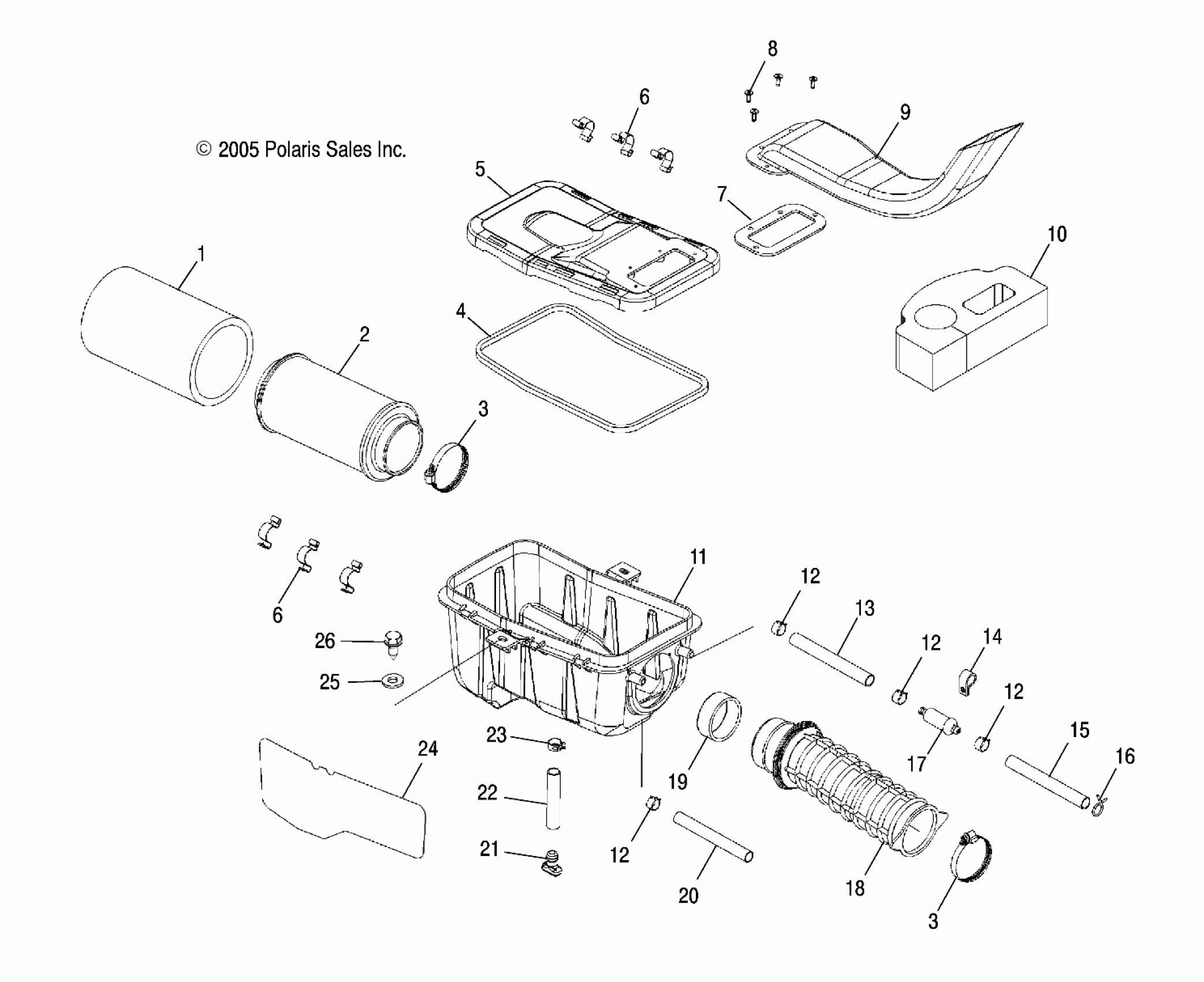

Polaris SPORTSMAN 500 HO - A06MH50AA AIR BOX - A06MH50AA/AB/AD/AF (4999200099920009A13) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.90

2

Filter, Air

7080595

$27.78

3

Clamp, Narrow Band

7080413

$3.17

3

Clamp, Narrow Band

7080413

$3.17

4

Seal, Cover

5811482

$28.32

5

Cover, Air Box

5432868

$56.65

6

CLIP-AIR BOX

5242044

$9.52

6

CLIP-AIR BOX

5242044

$9.52

7

Gasket, Intake

5411422

$6.59

8

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

9

Duct, Air Inlet

5433293

$69.99

10

Seal, Foam

5811626

$32.37

11

Box, Air

5433387

$137.60

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

13

Line, Breather

8450073-600

Unavailable

14

P-Clamp

7080913

$5.56

15

Hose, Breather

5411858

Unavailable

16

Clamp, Hose

7080694

$6.64

17

Filter, Breather

2530029

$6.35

18

Boot, Carburetor

5412562

$53.32

19

Sleeve, Inner

5433847

$14.56

20

Line, Breather

5413003

Unavailable

21

Plug, Trap

5432377

Unavailable

22

Line, Fuel

8450059-150

Unavailable

23

Clamp, Hose

7080650

$3.97

24

Foil

5811650

Unavailable

25

Washer, Flat

7558301

$1.19

26

Screw

7515179

$2.38
