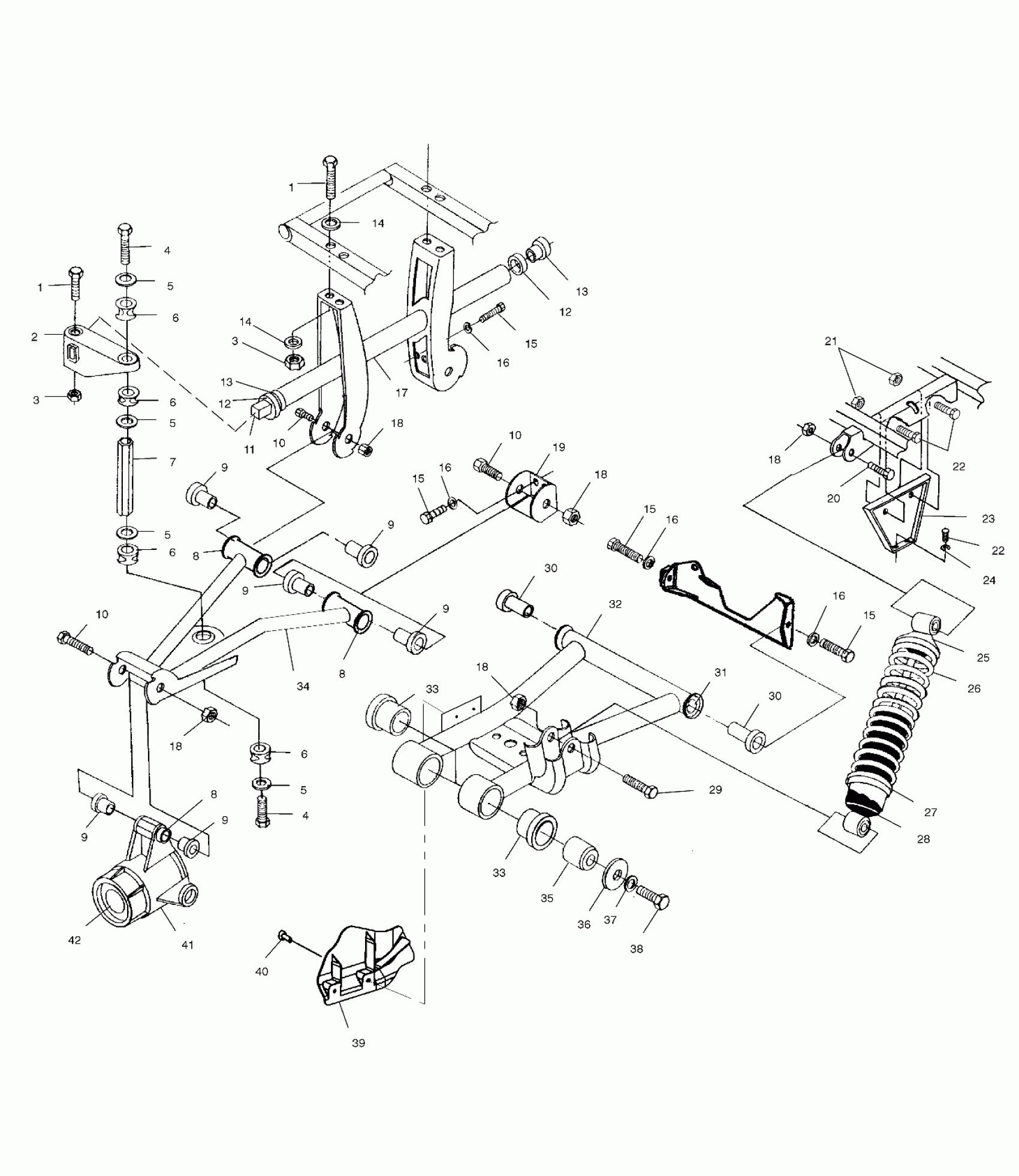

Polaris SPORTSMAN 500 HO - A03CH50AA/AB/AC/AD/AE/AH/AJ REAR SUSPENSION - A03CH50AA/AB/AC/AD/AE/AH/AJ (4975417541C05) Diagram

#

Description
Price

1

Bolt

7512329

$3.99

1

Bolt

7512329

$3.99

2

Arm, Stabilizer Bar

1580107-067

$62.92

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

SCREW

7517231

$7.19

4

SCREW

7517231

$7.19

5

Washer, Flat

7555761

$2.39

5

Washer, Flat

7555761

$2.39

5

Washer, Flat

7555761

$2.39

5

Washer, Flat

7555761

$2.39

6

BUSHING, STABILIZER

5432598

$6.39

6

BUSHING, STABILIZER

5432598

$6.39

6

BUSHING, STABILIZER

5432598

$6.39

6

BUSHING, STABILIZER

5432598

$6.39

7

ROD, LINKAGE, STABILIZER

5020827

$47.99

8

SHAFT, A-ARM, SHORT

5020826

$11.99

8

SHAFT, A-ARM, SHORT

5020826

$11.99

8

SHAFT, A-ARM, SHORT

5020826

$11.99

9

Bushing, A-Arm, Short

5434548

$2.38

9

Bushing, A-Arm, Short

5434548

$2.38

9

Bushing, A-Arm, Short

5434548

$2.38

9

Bushing, A-Arm, Short

5434548

$2.38

9

Bushing, A-Arm, Short

5434548

$2.38

9

Bushing, A-Arm, Short

5434548

$2.38

10

SCREW

7515472

$2.39

10

SCREW

7515472

$2.39

10

SCREW

7515472

$2.39

11

Bar, Stabilizer Tube

5334114-067

$111.33

12

Washer

7555939

Unavailable

12

Washer

7555939

Unavailable

13

Bushing, Stabilizer Tube

5434549

$8.48

13

Bushing, Stabilizer Tube

5434549

$8.48

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

Screw

7512492

$1.49

15

Screw

7512492

$1.49

15

Screw

7512492

$1.49

15

Screw

7512492

$1.49

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

17

Support, Stabilizer

1541802-067

Unavailable

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

19

Bracket, A-Arm Pivot

5242077-067

Unavailable

20

Screw

7515433

$1.59

21

Nut, Flange

7542321

$1.49

22

Bolt

7515321

$1.49

22

Bolt

7515321

$1.49

23

Support, Transmission, Upper

5224667-067

$74.99

24

WASHER, SPRING LOCK

7552901

$1.49

25

Retainer, Spring

5630885

$10.03

26

Spring, Compression, Rear, Black

7041453-067

$94.99

26

Spring, Compression, Rear, Red

7041453-293

$94.99

27

CAM, ADJUSTING, SPRING

5631014

$31.99

27

Sleeve, Shock Protector

5433551

$39.99

28

Shock, Rear

7041959

$123.99

29

Screw

7515415

$1.49

30

Bushing, A-Arm, Long

5434551

$5.01

30

Bushing, A-Arm, Long

5434551

$5.01

31

Shaft, A-Arm

5133806

$30.79

32

Arm, Control, Lower, Red, LH

1014174-293

Unavailable

32

Arm, Control, Lower, Red, RH

1014175-293

Unavailable

32

Arm, Control, Lower, Black, LH

1013220-067

Unavailable

32

Arm, Control, Lower, Black, RH

1013221-067

Unavailable

33

Bushing, Control, Lower

5434550

$4.62

33

Bushing, Control, Lower

5434550

$4.62

34

Arm, Control, Upper, Red, LH

1014320-293

Unavailable

34

Arm, Control, Upper, Red, RH

1014321-293

$121.02

34

Arm, Control, Upper, Black, LH

1013766-067

Unavailable

34

Arm, Control, Upper, Black, RH

1013767-067

Unavailable

35

Bushing, Bearing Carrier

5631142

$23.16

36

WASHER-LOCK, 7/16-B

7552614

$1.59

37

WASHER, FLAT

7555740

$1.59

38

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

39

Shield, Rear, LH (If built after 8/12/02)

5435008-070

$23.99

39

Shield, Rear, RH (If built after 8/12/02)

5435009-070

$23.99

39

Shield, Rear, RH (If built before 8/12/02)

5433099-070

Unavailable

39

Shield, Rear, LH (If built before 8/12/02)

5433098-070

Unavailable

40

Screw

7512084

$1.49

41

Carrier, Wheel Bearing [RH]

5133664

$111.96

41

Carrier, Wheel Bearing, LH

5133663

$111.96

42

Bearing, Wheel Carrier

3585502

Unavailable
