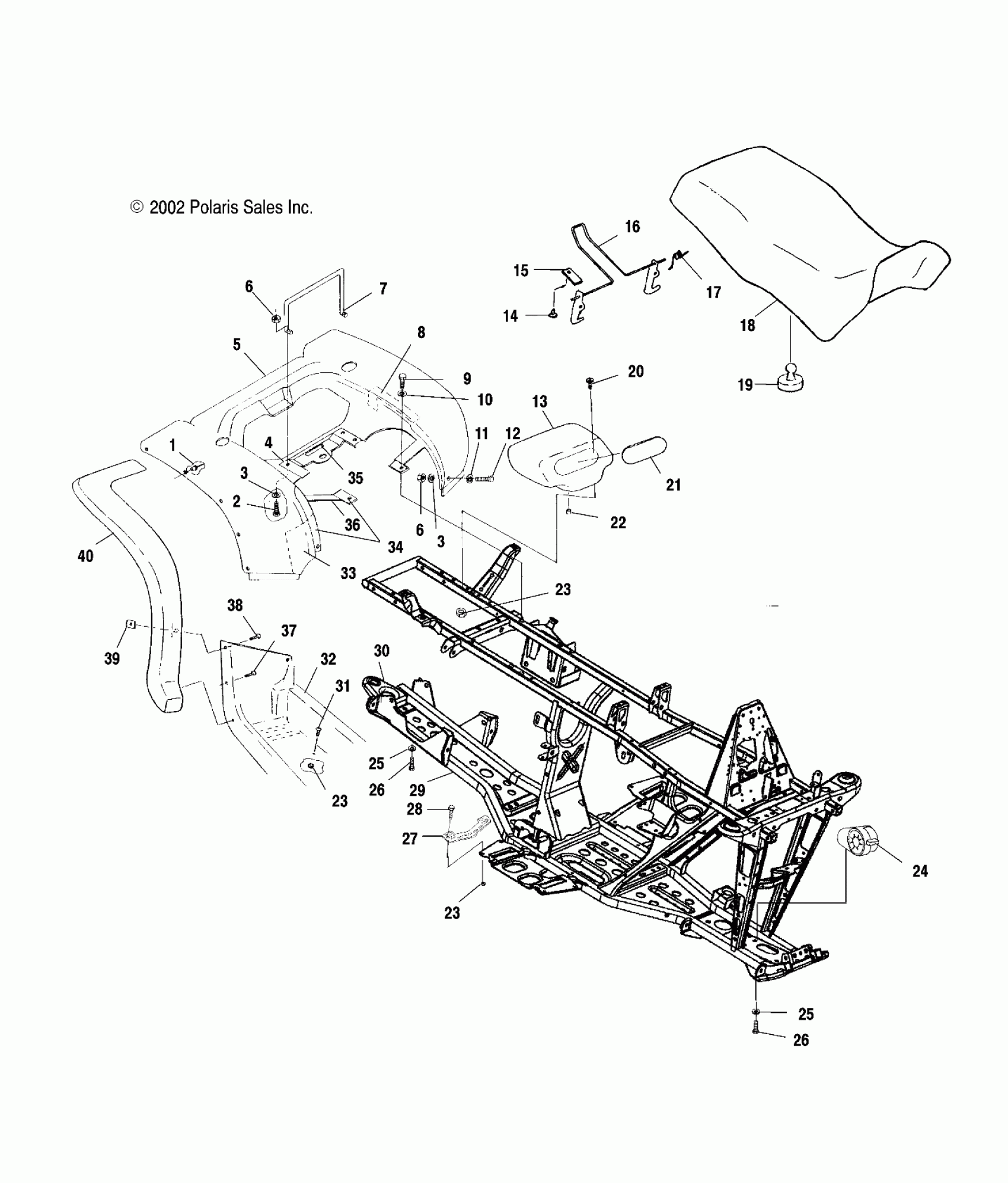

Polaris SPORTSMAN 500 HO - A03CH50AA/AB/AC/AD/AE/AH/AJ REAR CAB AND SEAT - A03CH50AA/AB/AC/AD/AE/AH/AJ (4975417541A03) Diagram

#

Description
Price

1

Rivet, T-Lock

7661645

Unavailable

2

Bolt

7511930

$2.38

3

WASHER

7555792

$4.76

3

WASHER

7555792

$4.76

4

Foil, Rear Cab, Rear

5811107

Unavailable

5

Cab, Rear, Camo Green Metallic [AA]

5432117-400

Unavailable

5

Cab, Rear, Med Yellow [AE]

5432117-053

Unavailable

5

Cab, Rear, Blazing Red [AB]

5432117-288

Unavailable

5

Cab, Rear, New Break-Up [AC](AU)

5434852-419A

$579.99

5

Cab, Rear, Shadow Grass [AD]

5434862-420A

Unavailable

5

Cab, Rear, Sterling Spruce [AH]

5432117-333

Unavailable

6

Nut, Nylok

7541925

$0.79

6

Nut, Nylok

7541925

$0.79

7

Retainer, Seat Latch

5224592

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.94

9

SCREW

7512242

$2.38

10

Washer, Flat

7555859

$1.19

11

WASHER

7556034

$2.38

12

Screw

7512085

Unavailable

13

Box, Tool

5431786

$53.17

14

RIVET

7621403

$1.19

15

BRACKET, LEVER RETAINER

5211033

$34.99

16

LATCH, SEAT

1040387

$48.56

17

SPRING, LATCH

7041370

$9.52

18

Covering, Seat, Black [AA][AB][AC][AE][AH](AJ)(AU)

2682958-070

$149.75

18

Asm., Seat, Black [AA][AB][AC][AE][AH](AJ)(AU)

2682441-070

$445.22

18

Foil, Seat Base, Large

5811104

Unavailable

18

Foil, Seat Base, Small

5811105

$9.84

18

Asm., Seat, Delta Marsh [AD]

2682441-316

$445.22

18

Covering, Seat, Delta Marsh [AD]

2681747-316

$149.75

19

BUMPER-RUBBER

5412067

$3.97

20

Screw

7517375

$1.19

21

Cover, Tool Box

5431787

Unavailable

22

Cap, Drain

5410896

$5.65

23

Nut, Nylok

7542122

$1.19

23

Nut, Nylok

7542122

$1.19

23

Nut, Nylok

7542122

$1.19

24

FRONT HOUSING [SEE FRONT HOUSING PG. D1 FOR DETAILS]

----

Unavailable

25

Washer, Spring Lock

7552603

$0.79

25

Washer, Spring Lock

7552603

$0.79

26

Screw

7512492

$1.19

26

Screw

7512492

$1.19

27

Spacer, Footwell

5432280

$8.73

28

SCREW

7517377

$4.76

29

Frame, Main, Black

1013966-067

Unavailable

30

Decal, Hitch

7170911

Unavailable

31

Screw

7517376

$0.79

32

Footwell, Black, LH

5432221-070

$230.70

32

Footwell, Black, RH

5433219-070

$230.70

33

Foil, Foam, Rear Fender

5811111

Unavailable

34

Foil, Rear Cab, Front

5811106

Unavailable

35

Decal, Carb/Filter Information

7079902

Unavailable

36

Foil, Foam

5811087

Unavailable

37

SCREW

7512232

$1.19

38

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.19

39

NUT, U-TYPE SPEED

7670057

$1.19

40

Guard, Mud, Rear, LH

5431796-070

Unavailable

40

Guard, Mud, Rear, RH

5431797-070

Unavailable
