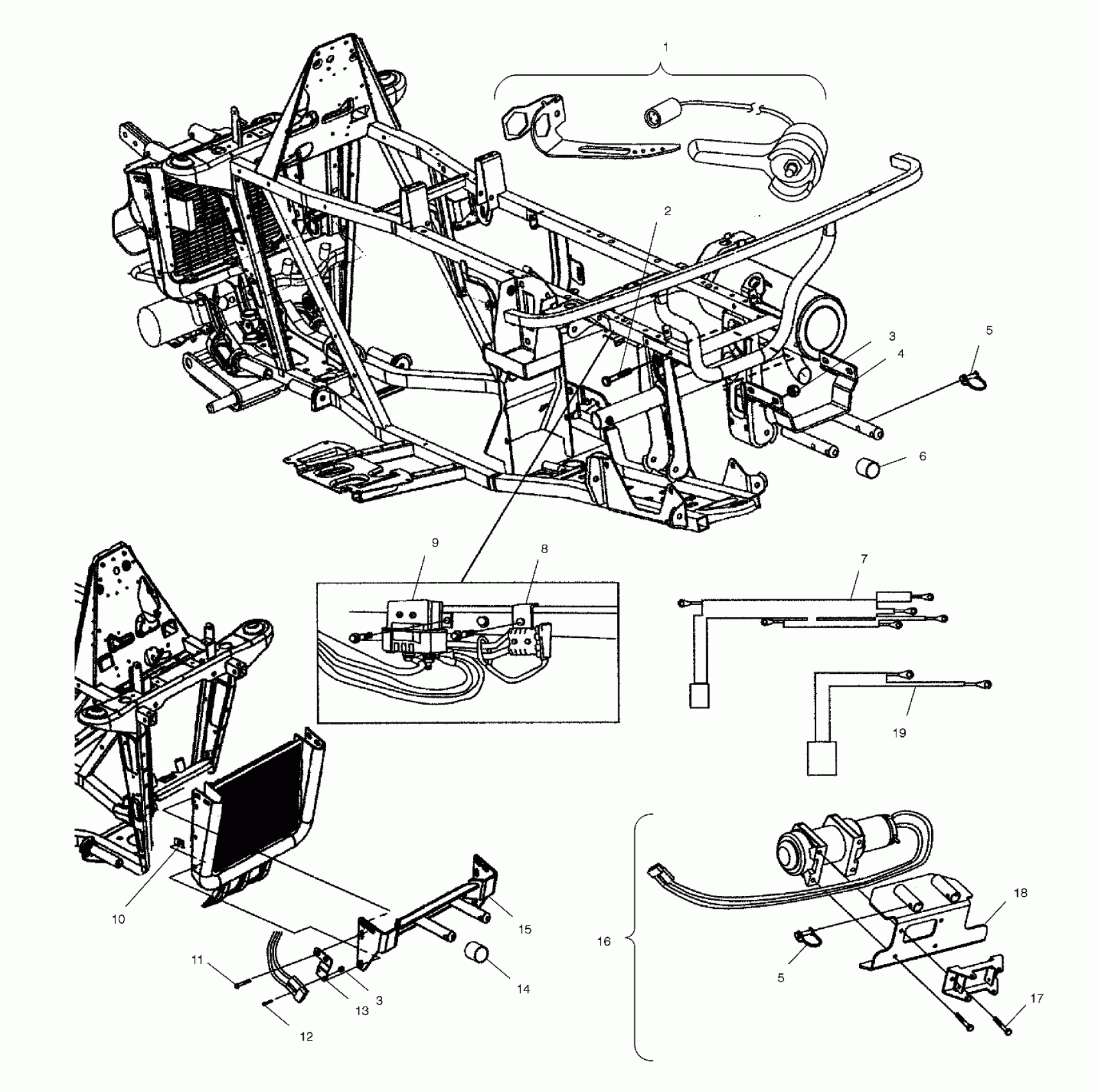

Polaris SPORTSMAN 500 HO - A03CH50AA/AB/AC/AD/AE/AH/AJ MULTI MOUNT WINCH - A03CH50AH (4975417541E03) Diagram

#

Description
Price

1

Kit, Winch Remote Holster Wire

2202140

Unavailable

2

BOLT

7515319

$4.76

3

Nut

7541602

$1.43

3

Nut

7541602

$1.43

4

Mount, Receiver, Rear

1541536-067

Unavailable

5

Pin

7661114

Unavailable

5

Pin

7661114

Unavailable

6

Hose, Bumper, Rear

5412208

$1.67

7

Harness, Battery

2460916

Unavailable

8

Plate, Rear

1541637-067

$11.51

9

Kit, Winch Contractor and Bracket

2202139

Unavailable

10

NUT, CHIMNEY

7670096

$1.59

11

SCREW

7517208

$1.98

12

Screw

7515180

Unavailable

13

Plate, Front

1541636-067

$11.51

14

Hose, Bumper, Front

5412207

$1.19

15

Mount, Receiver, Front

1541537-067

Unavailable

16

Kit, Winch Asm., 2500 LB Cable

2202142

Unavailable

17

Bolt

7517914

$1.98

18

Mount, Winch

1541535-067

Unavailable

19

Harness, Main

2460929

$73.81
