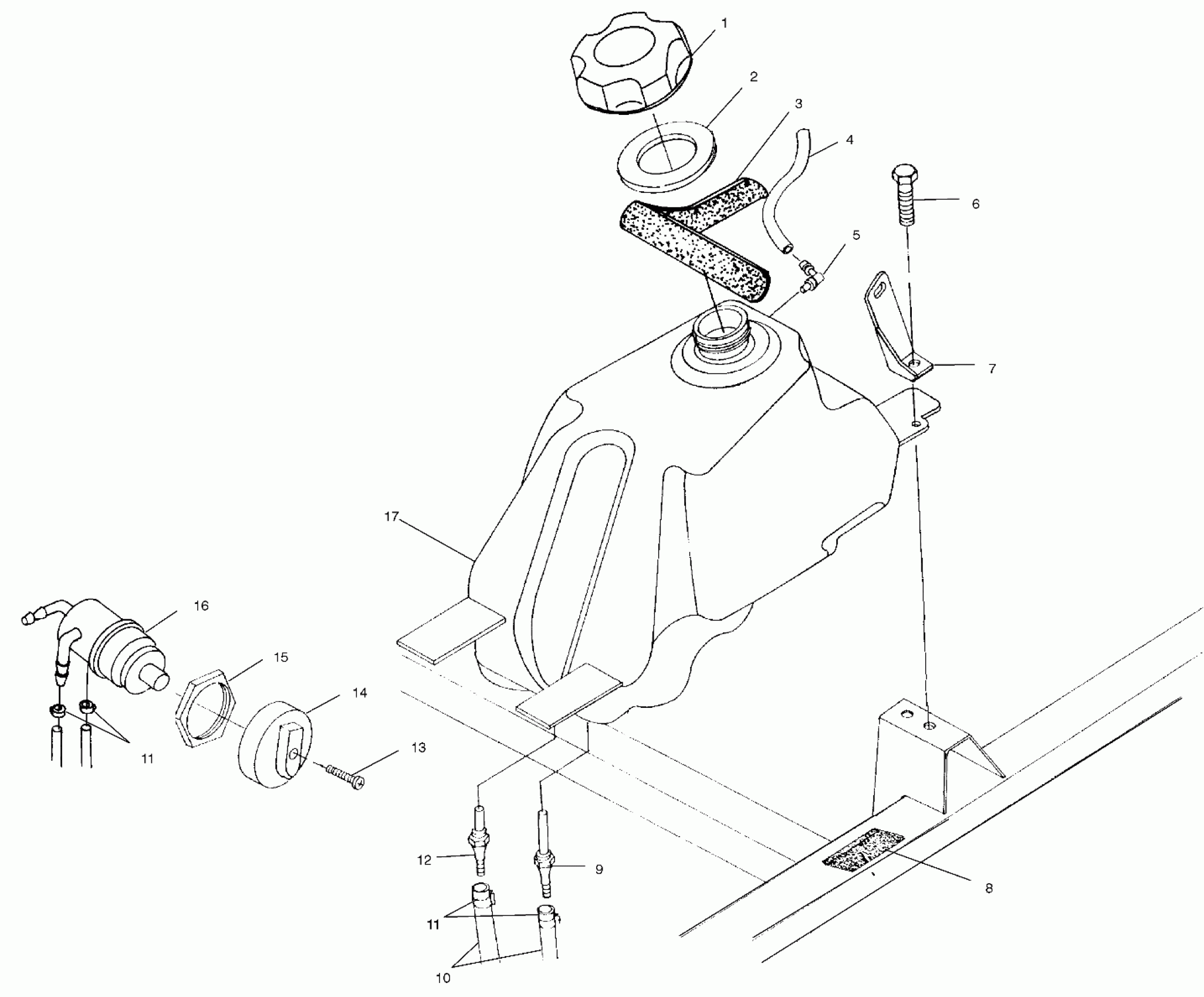

Polaris SPORTSMAN 500 HO - A03CH50AA/AB/AC/AD/AE/AH/AJ FUEL TANK - A03CH50AA/AB/AC/AD/AE/AH/AJ (4975417541A12) Diagram

#

Description
Price

1

Cap, Gas Tank

5433687

$20.22

2

Gasket, Fuel Cap

5812123

$5.65

3

Seal, Foam

5812210

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

SCREW

7517685

$1.59

7

Bracket, Mounting, Rear, LH

5246069-067

Unavailable

7

Bracket, Mounting, Rear, RH

5246070-067

Unavailable

8

Pad, Fuel Tank Bracket [FA]

5810317

Unavailable

9

Fitting, Fuel Outlet, Main

7052150

$27.99

10

Hose, Fuel

8450103

Unavailable

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

12

Fitting, Fuel Outlet, Reserve

7052149

$23.99

13

Screw

7517505

$1.59

14

Knob, Fuel Valve

5432559

$10.39

15

Nut, Fuel Valve

5432733

Unavailable

16

Valve, 3-Way

7052161

$39.99

17

Asm., Fuel Tank [Incl. 9,12]

2520144

Unavailable
