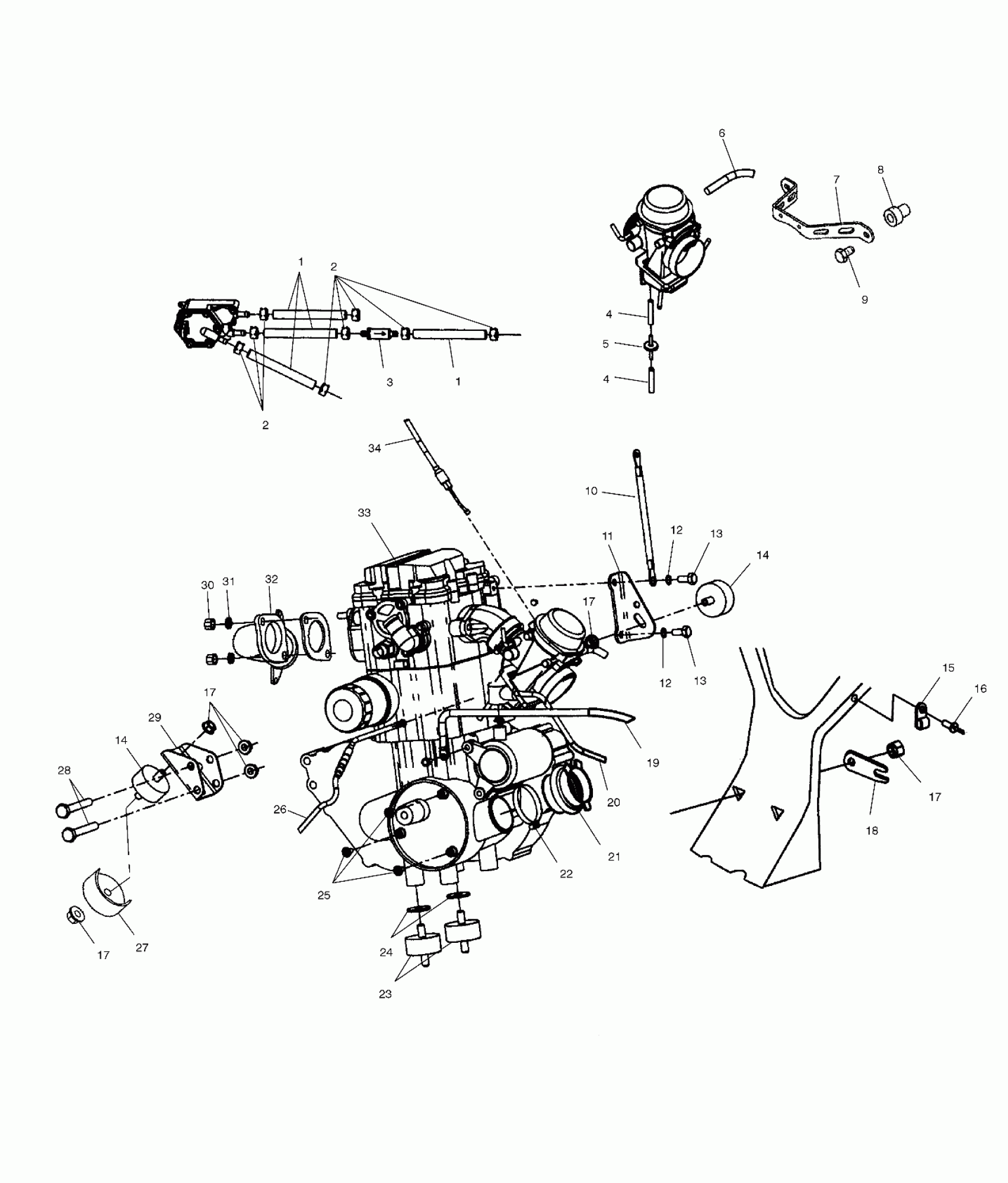

Polaris SPORTSMAN 500 HO - A03CH50AA/AB/AC/AD/AE/AH/AJ ENGINE MOUNTING - A03CH50AA/AB/AC/AD/AE/AH/AJ (4975417541A13) Diagram

#

Description
Price

1

Line, Fuel

8450040-600

Unavailable

1

Line, Fuel

8450040-600

Unavailable

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

3

FILTER

2530009

$5.65

4

LINE, FUEL

8360009-600

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

VALVE, CHECK

7051011

Unavailable

6

Line, Fuel

8450003-1525

Unavailable

7

Strap, Carburetor Mount

5246551

Unavailable

8

Nut, Well

7541923

$5.59

9

Bolt

7512247

$2.39

10

Cable, Ground, Engine

4010132

Unavailable

11

Mount, Engine, Top

5241453

$7.99

12

WASHER, SPRING LOCK

7552901

$1.49

12

WASHER, SPRING LOCK

7552901

$1.49

13

BOLT

7512315

$4.79

13

BOLT

7512315

$4.79

14

Mount, Rubber, Top

3110044

Unavailable

14

Mount, Rubber, Top

3110044

Unavailable

15

Clamp, Nylon

7080539

$4.79

16

Rivet

7621462

$1.49

17

NUT, FLANGE LOCK

7547108

$4.79

17

NUT, FLANGE LOCK

7547108

$4.79

17

NUT, FLANGE LOCK

7547108

$4.79

17

NUT, FLANGE LOCK

7547108

$4.79

18

Strap, Frame Support

5224658-067

Unavailable

19

Cable, Black, Battery/Engine

4010095

Unavailable

20

Cable, Solenoid/Starter

4010093

$47.99

21

Boot, Clutch Intake

5410421

$11.19

22

Clamp, Narrow Band

7080511

$4.79

23

Mount, Rubber, Front

3110046

Unavailable

24

Washer

7555815

$3.99

25

Screw and Washer

3084205

$3.99

26

Cable, Choke

7081008

$79.99

27

BRACKET, TORQUE STOP

5245043

$15.83

28

SCREW

7515417

$4.79

29

Mount, Engine, Front

5241150

Unavailable

30

Nut

3080285

Unavailable

31

Washer, Lock

3080530

$3.19

32

Manifold

1261043-029

Unavailable

33

Engine, Short Block [EH50PLE013] NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f

3085822

Unavailable

34

Cable, Throttle

7080967

$55.99
