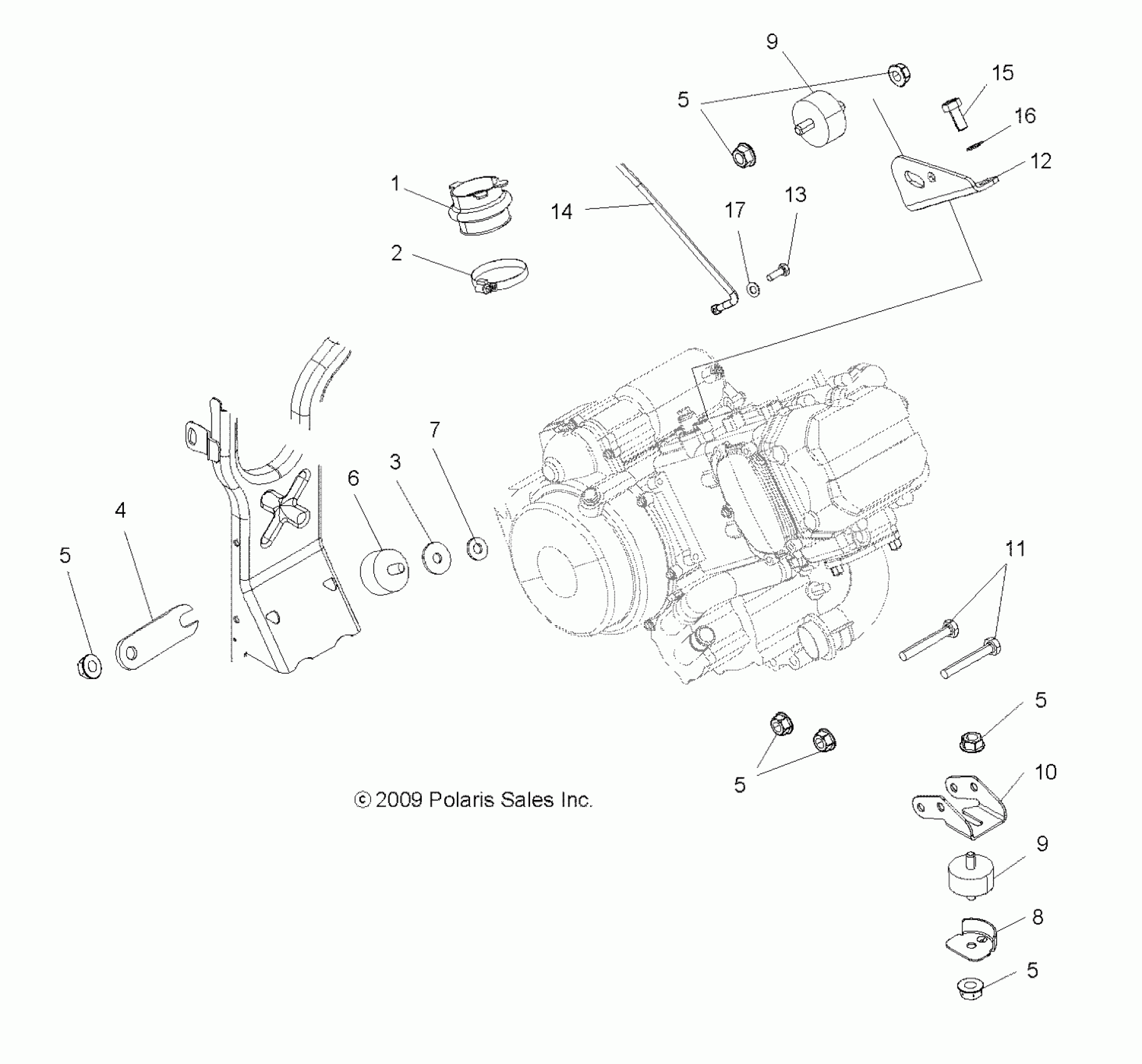

Polaris SPORTSMAN 500 EFI TRACTOR - A10MN50ET ENGINE, MOUNTING - A10MN50ET (49ATVENGINEMTG10SP500) Diagram

#

Description
Price

1

BOOT, CLUTCH INTAKE

5412487

Unavailable

2

Clamp, Narrow Band

7080511

$4.76

3

WASHER, FLAT

7555815

$3.97

4

STRAP, FRAME SUPPORT, BLACK

5224658-067

Unavailable

5

NUT

7547108

$4.76

5

NUT

7547108

$4.76

5

NUT

7547108

$4.76

5

NUT

7547108

$4.76

5

NUT

7547108

$4.76

6

Isolator

3022072

Unavailable

7

Washer, Flat [Built 11/2/09 and Before]

7555797

$3.97

8

BRACKET, TORQUE STOP

5245043

$17.99

9

ISOLATOR

3022071

$44.51

9

ISOLATOR

3022071

$44.51

10

Mount, Engine, Front

5249873

$21.55

11

BOLT

7518415

$5.22

12

Mount, Engine, Top

5241453

Unavailable

13

ASM., BOLT AND WASHER

3082038

$3.97

14

CABLE, FRAME/ENGINE

4010895

Unavailable

15

BOLT

7512315

$4.76

16

WASHER, SPRING LOCK

7552901

$1.19

17

Washer, Flat

7558301

$1.19
