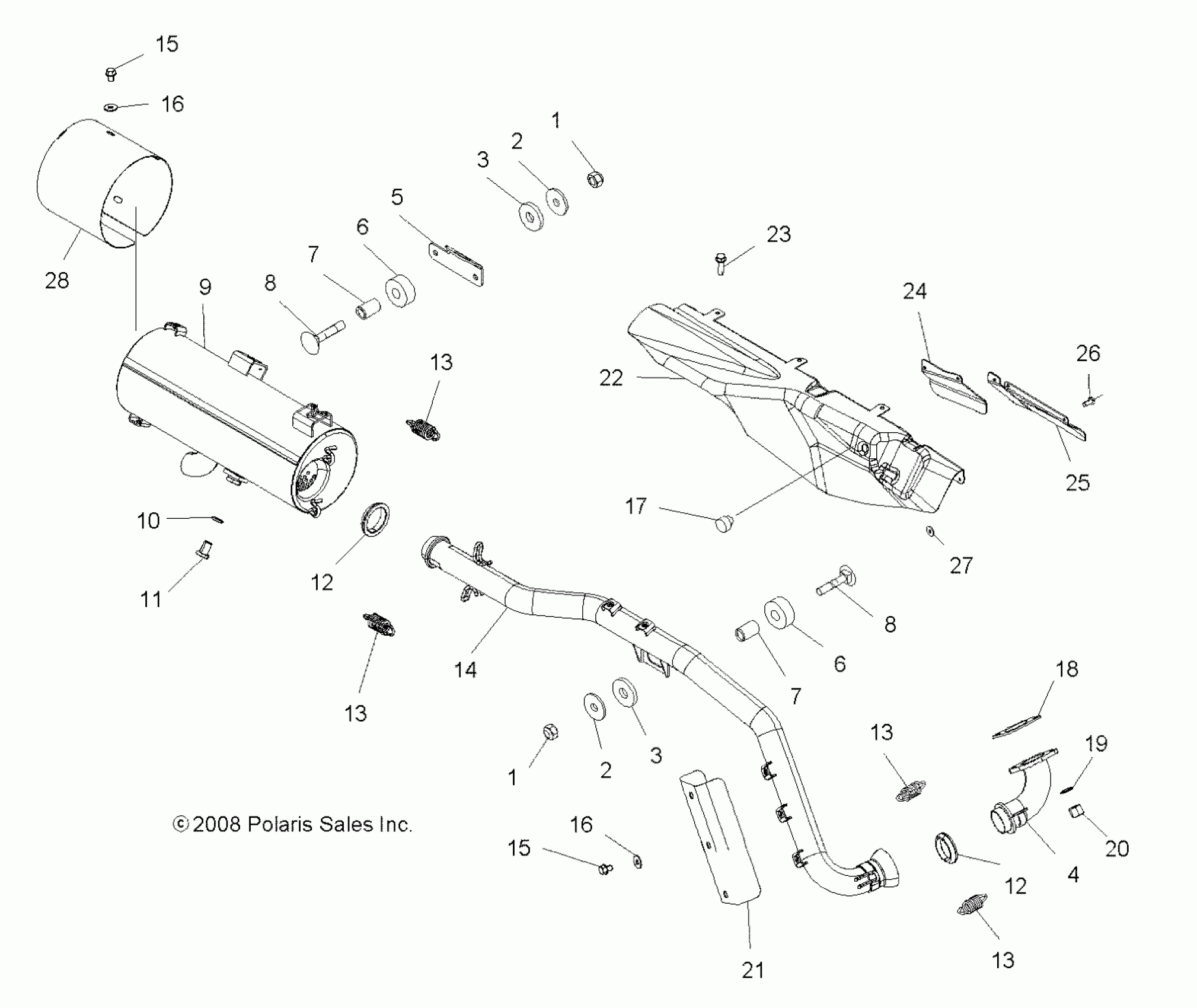

Polaris SPORTSMAN 500 EFI TRACTOR - A10MN50ET ENGINE, EXHAUST - A10MN50ET (49ATVEXHAUST09SP500TR) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER

7555716

$1.59

2

WASHER

7555716

$1.59

3

WASHER, RUBBER

5410436

$1.59

3

WASHER, RUBBER

5410436

$1.59

4

Manifold, Black

1261688-489

$171.59

5

BRACKET, SILENCER, FRAME

5241663

$10.39

6

DAMPENER, VIBRATION

5412659

$3.99

6

DAMPENER, VIBRATION

5412659

$3.99

7

BUSHING

5010192

$6.39

7

BUSHING

5010192

$6.39

8

BOLT

7515316

$2.39

8

BOLT

7515316

$2.39

9

Silencer, Exhaust, Black

1261996-489

Unavailable

10

WASHER, CLEAN OUT

7556230

$1.49

11

BOLT

7512666

$2.39

12

Seal, Exhaust

5243518

$27.99

12

Seal, Exhaust

5243518

$27.99

13

SPRING

7041804

$7.99

13

SPRING

7041804

$7.99

13

SPRING

7041804

$7.99

13

SPRING

7041804

$7.99

14

PIPE, EXHAUST, BLACK

1261898-489

$197.99

15

Screw

7515197

$1.49

15

Screw

7515197

$1.49

16

Washer

7555935

$2.39

16

Washer

7555935

$2.39

17

BUMPER-RUBBER

5412067

$3.99

18

GASKET

3085075

$39.99

19

Washer, Spring

3080051

Unavailable

20

Nut

3087199

Unavailable

21

SHIELD, HEAT

5250184

$33.43

22

Shield, Exhaust, Outer

5251237

$111.33

23

SCREW

7517386

$1.49

24

Shield, Inner [Rear]

5251535

Unavailable

25

Shield, Inner [Front]

5251533

Unavailable

26

RIVET

7621330

$1.49

27

WASHER

7555727

$1.49

28

Shield, Silencer, Black

1262010-489

Unavailable
