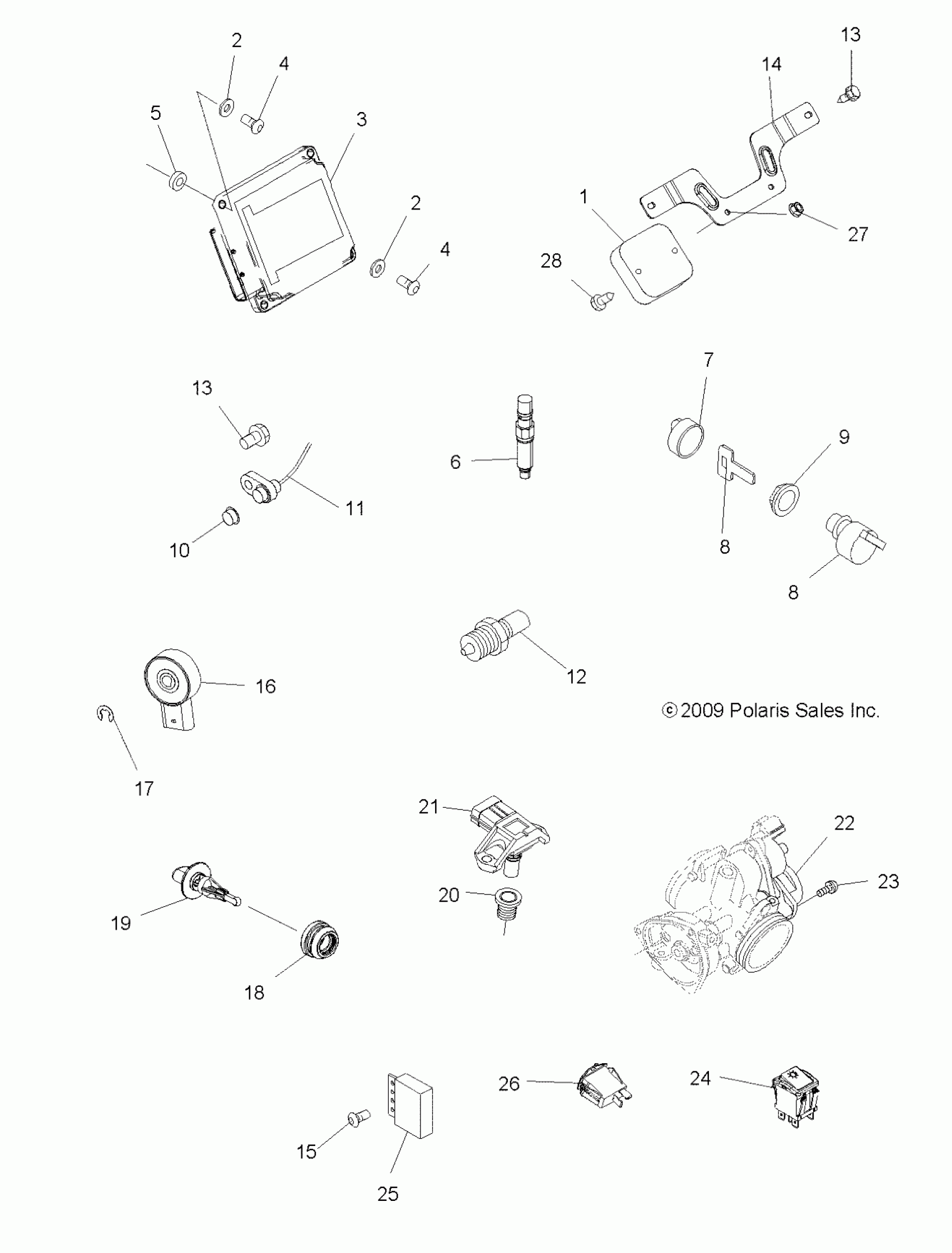

Polaris SPORTSMAN 500 EFI TRACTOR - A10MN50ET ELECTRICAL, SWITCHES and SENSORS and ECM - A10MN50ET (49ATVELECT10SP500TR) Diagram

#

Description
Price

1

Regulator

4012384

$271.99

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Module, Engine Control, Service

4012443

Unavailable

4

Screw

7518552

$3.99

4

Screw

7518552

$3.99

5

Washer, Nylon

7555932

$2.39

6

Switch, Brake Pressure [Brake Lights]

4011478

Unavailable

7

KEY SWITCH KEY COVER

5433534

$12.35

8

SWITCH-KEY,4 POS,ATV,MT SLV [Incl. Key]

4012166

Unavailable

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

8

SWITCH-KEY,4 POS,ATV,MT SLV [Incl. Key]

4012166

Unavailable

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

9

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

10

CAP

5132382

$23.99

11

Sensor, Hall Effect

4011640

$111.99

12

Sensor, Water Temperature

3089892

$99.99

13

SCREW

7517386

$1.49

13

SCREW

7517386

$1.49

14

Bracket, Mount, Voltage Regulator, Plated

5253219

$10.51

15

SCREW

7512024

$4.79

16

SWITCH, ROTARY

3233835

Unavailable

17

RING, RETAINING

3233834

$10.39

18

Grommet, Air Temp Sensor

5436346

$4.79

19

Sensor, Air Temp

2410687

$143.99

20

Grommet

3089902

Unavailable

21

Sensor, Air Pressure

3089895

Unavailable

22

SENSOR, THROTTLE POSITION

3140173

Unavailable

23

SCREW

3131628

$5.27

24

Switch, Master Lighting

4012487

$75.99

25

Module, Flash/Turn

4012545

Unavailable

26

Switch, Hazard

4011761

$68.79

27

Nut, Nylok, Flange

7542153

$1.59

28

Screw

7515179

$2.39
