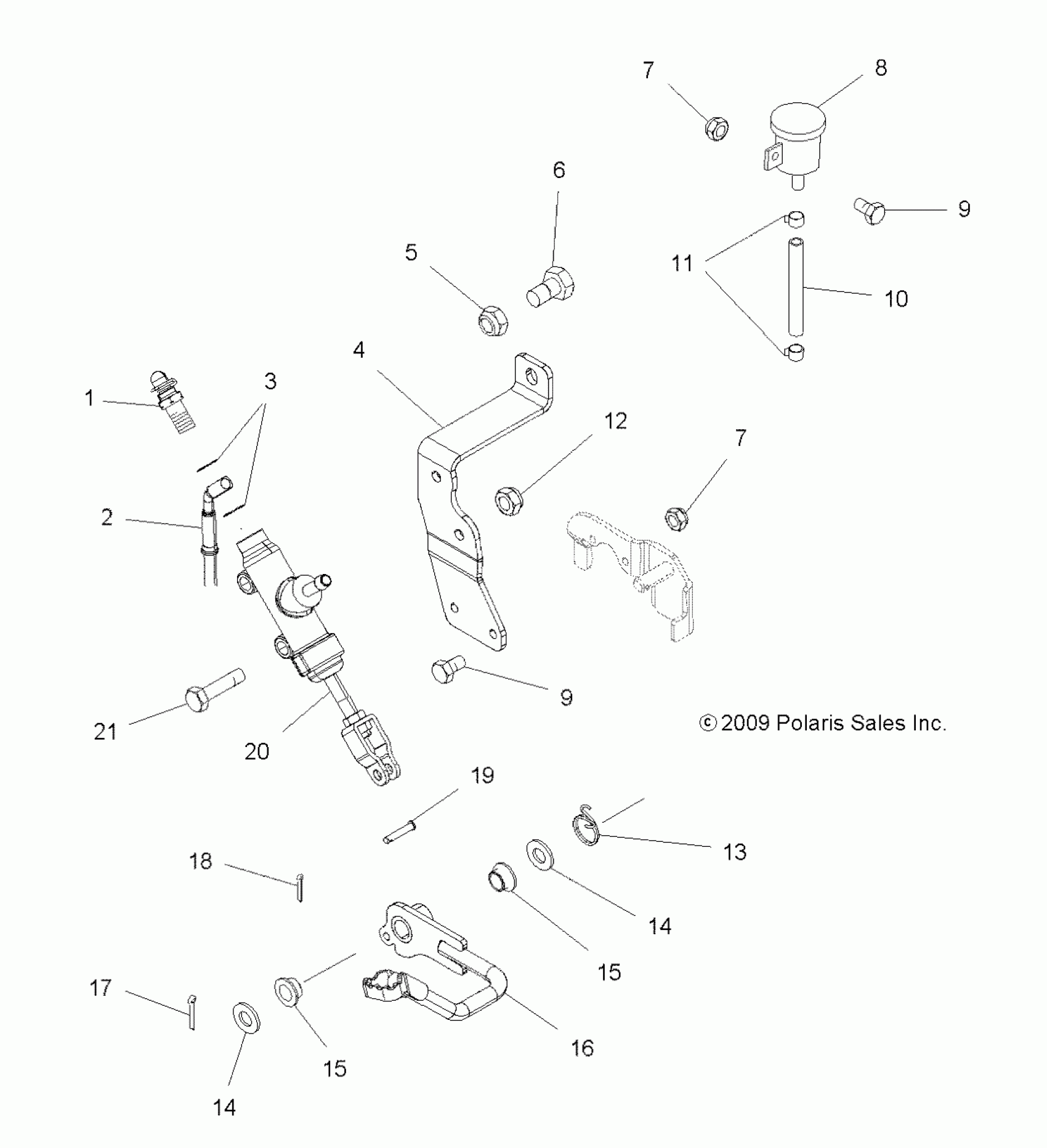

Polaris SPORTSMAN 500 EFI TRACTOR - A10MN50ET BRAKES, FOOT BRAKE - A10MN50ET (49ATVBRAKEFOOT10SP500TR) Diagram

#

Description
Price

1

Bolt, Banjo w/Bleeder

1910886

$10.39

2

Line, Foot to J/B

1911137

$59.99

3

SEAL

5413212

$4.79

4

Plate, Brake, Mount, Black [Built 6/22/09 and Before]

5249946-067

$24.79

4

Plate, Brake, Mount, Black [Built 6/23/09 and After]

5253932-067

$39.67

5

NUT-3/8-24 FLG LOC

7547263

$3.19

6

Screw

7517289

$4.79

7

Nut, Nylok

7542122

$1.49

7

Nut, Nylok

7542122

$1.49

8

Asm., Reservoir, Brake, Rear

1910674

$35.99

9

Screw

7512240

$3.99

9

Screw

7512240

$3.99

10

Hose, Reservoir

1911004

$4.95

11

HOSE CLAMP, RED

7080003

$1.49

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

SPRING-TORSION,BRAKE

7041750

$8.79

14

WASHER

7555919

$4.99

14

WASHER

7555919

$4.99

15

Bushing, Pedal, Pivot

5433189

$3.99

15

Bushing, Pedal, Pivot

5433189

$3.99

16

Pedal, Brake

1015492-067

$47.99

17

PIN, COTTER

7661900

$3.19

18

PIN, COTTER

7661401

$1.49

19

PIN, CLEVIS

7661830

$3.99

20

Asm., Master Cylinder, Foot [Built 6/23/09 and After]

1911551

$107.99

20

Asm., Master Cylinder, Foot [Built 6/22/09 and Before]

1910995

$174.03

21

Screw

7515306

Unavailable
