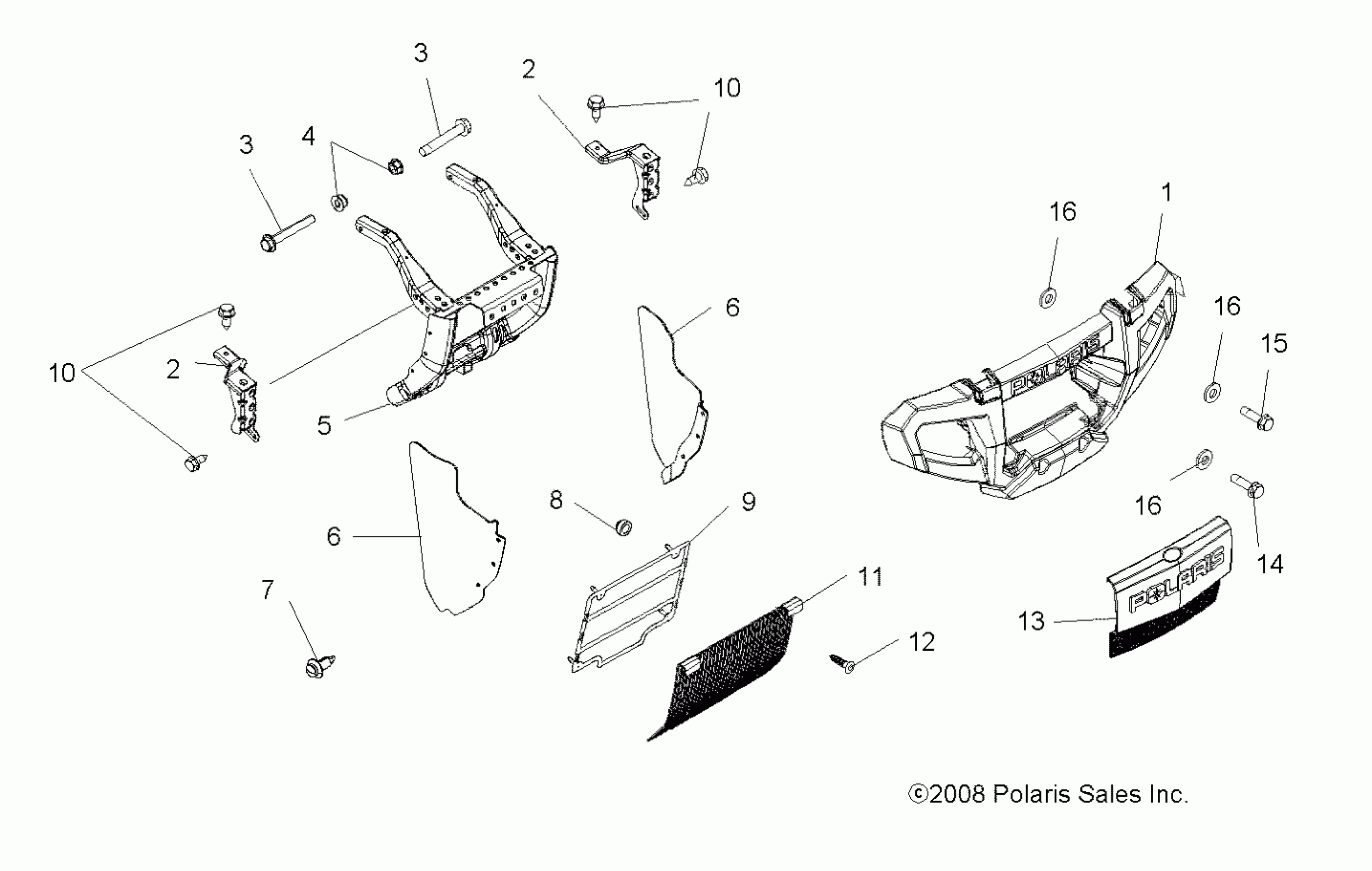

Polaris SPORTSMAN 500 EFI TRACTOR - A10MN50ET BODY, FRONT BUMPER and MOUNTING - A10MN50ET (49ATVBUMPER09SP500TR) Diagram

#

Description
Price

1

Bumper, Front, Black

5437086-070

$224.99

2

Support, Rack, Black, RH

1014592-067

Unavailable

2

Support, Rack, Black, LH

1014591-067

$204.99

2

Support, Rack, Black, RH

1014592-067

Unavailable

2

Support, Rack, Black, LH

1014591-067

$204.99

3

BOLT, FLANGE

7518341

$4.79

3

BOLT, FLANGE

7518341

$4.79

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

5

Guard, Brush w/Receiver, Front, Black

1017051-067

$199.98

6

Shield, Side, Radiator, LH

5434314

$44.99

6

Shield, Side, Radiator, RH

5434315

Unavailable

6

Shield, Side, Radiator, LH

5434314

$44.99

6

Shield, Side, Radiator, RH

5434315

Unavailable

7

Rivet

7661855

$1.49

8

Grommet, Rubber Mount

5412504

$3.99

9

Cover, Radiator

5435046

$47.99

10

SCREW

7515399

$1.49

10

SCREW

7515399

$1.49

11

Grill, Brush Guard, Black

5247507-067

$64.99

12

Screw

7518046

$4.79

13

Panel, Bumper, Front, Black

5435357-070

$52.60

14

Screw

7518383

$3.99

15

Bolt

7518382

$4.79

16

Washer, Flat

7556341

$1.64

16

Washer, Flat

7556341

$1.64

16

Washer, Flat

7556341

$1.64
