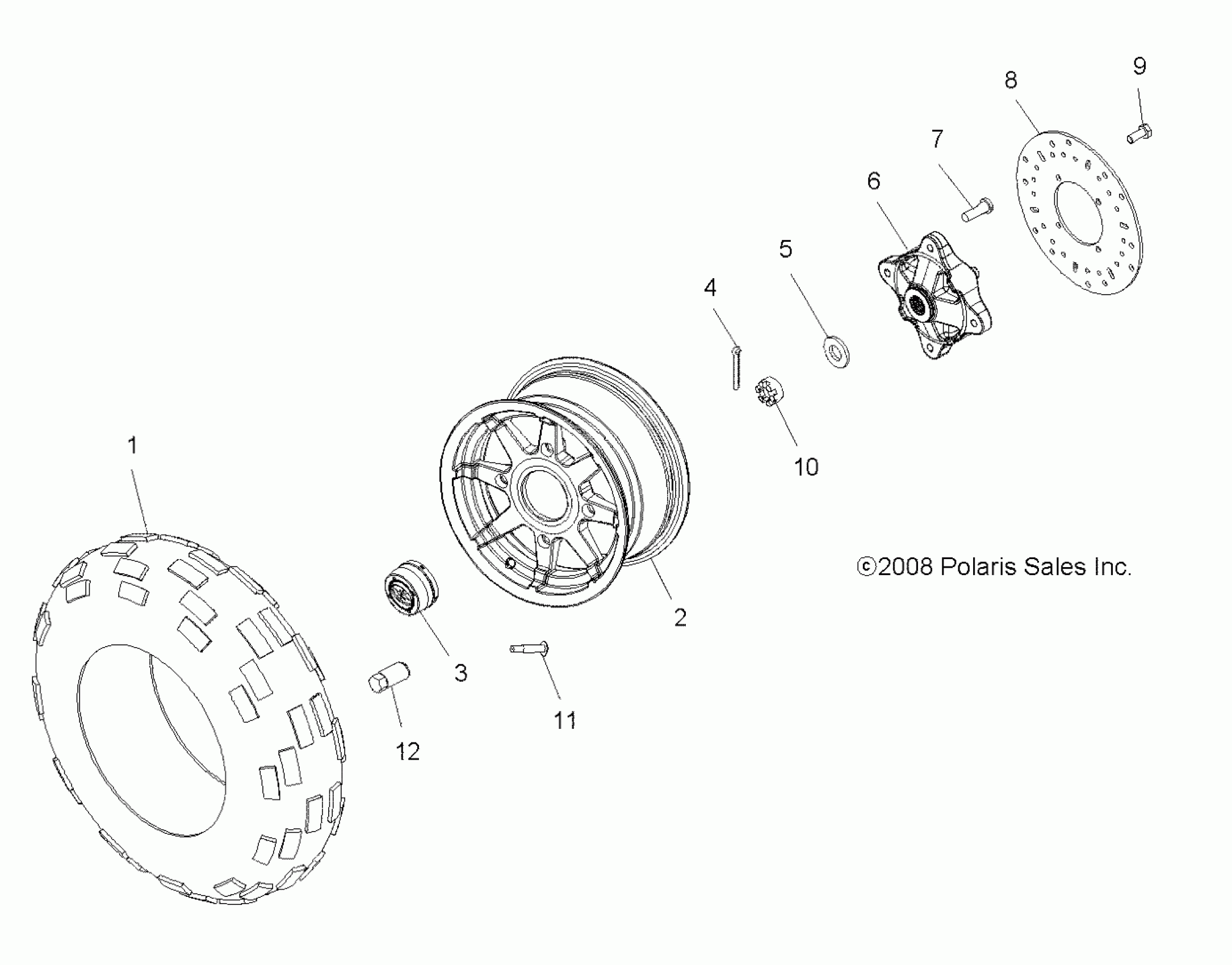

Polaris SPORTSMAN 500 EFI TRACTOR - A09MN50ET WHEELS, FRONT - A09MN50ET (49ATVWHEELFRT09500TR) Diagram

#

Description
Price

1

Tire, Front, 25x8-12

5412516

Unavailable

2

Rim, Front, Cast

1521106

Unavailable

3

CAP-RIM

1521128

$20.39

4

PIN, COTTER

7661402

$1.86

5

WASHER

7556004

$7.19

6

HUB, WHEEL

5134310

Unavailable

7

STUD

7518378

$1.59

8

DISC-BRAKE,8.95 OD,.158

5244314

$75.99

9

BOLT

7512325

$2.39

10

NUT, SLOTTED

7542810

$3.19

11

VALVE-RIM

1525017

$5.59

12

NUT, WHEEL

7547309

$3.59
