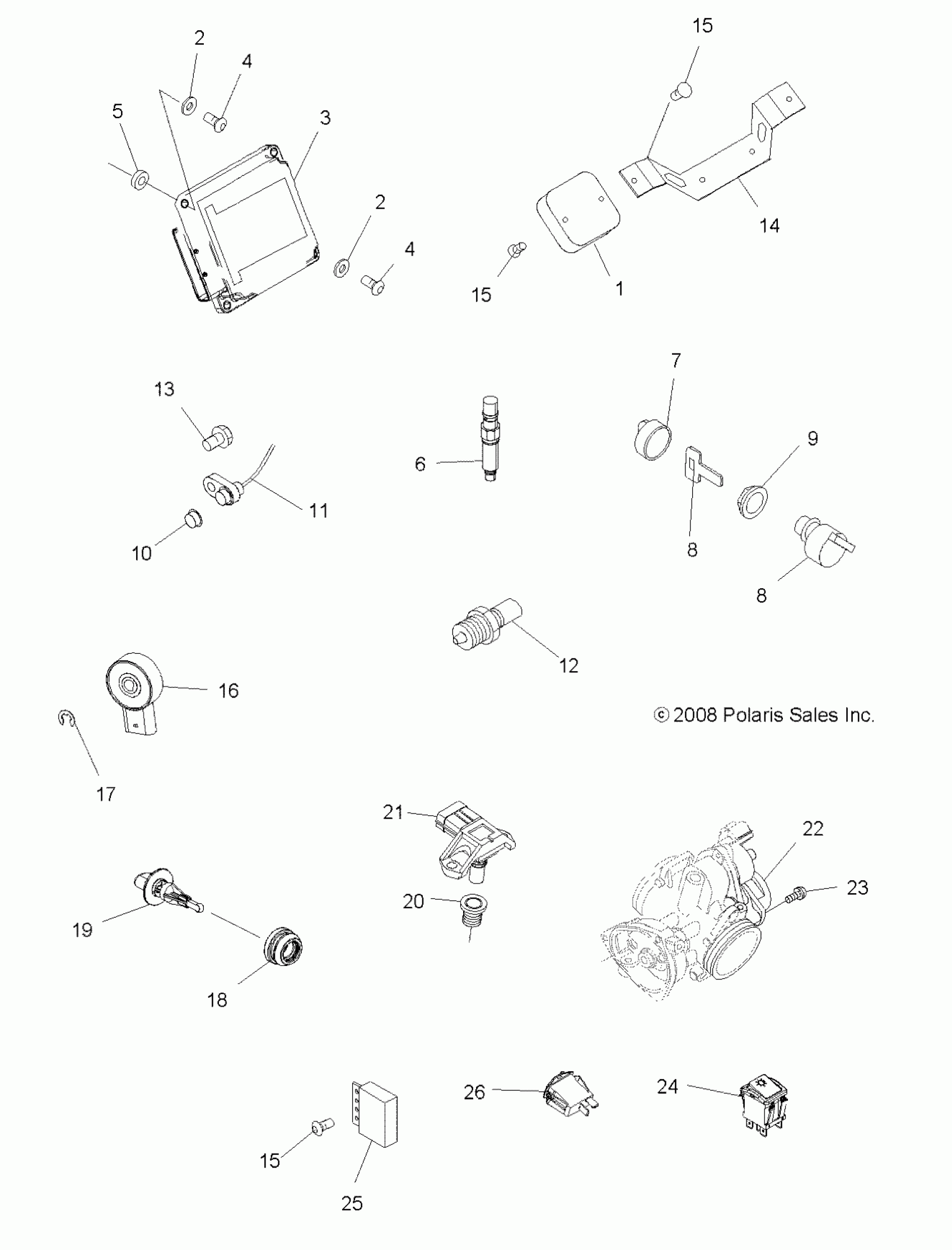

Polaris SPORTSMAN 500 EFI TRACTOR - A09MN50ET ELECTRICAL, SWITCHES and SENSORS and ECM - A09MN50ET (49ATVELECT09SP500TR) Diagram

#

Description
Price

1

Regulator

4012384

$337.24

2

WSHR-.194X.475X.049 ZTB

7555746

$0.79

2

WSHR-.194X.475X.049 ZTB

7555746

$0.79

3

Module, Engine Control, Service

4012443

Unavailable

4

Screw

7518552

$3.97

4

Screw

7518552

$3.97

5

Washer, Nylon

7555932

$2.38

6

Switch, Brake Pressure [Brake Lights]

4011478

Unavailable

7

KEY SWITCH KEY COVER

5433534

$13.75

8

SWITCH-KEY,4 POS,ATV,MT SLV [Incl. Key]

4012166

$109.27

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

8

SWITCH-KEY,4 POS,ATV,MT SLV [Incl. Key]

4012166

$109.27

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

9

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

10

CAP

5132382

$24.27

11

Sensor, Hall Effect

4011640

$117.37

12

Sensor, Water Temperature

3089892

$105.22

13

SCREW

7517386

$1.19

14

Bracket, Voltage Regulator

5248725

Unavailable

15

SCREW

7512024

$4.76

15

SCREW

7512024

$4.76

15

SCREW

7512024

$4.76

16

SWITCH, ROTARY

3233835

$142.49

17

RING, RETAINING

3233834

$10.32

18

Grommet, Air Temp Sensor

5436346

$4.76

19

Sensor, Air Temp

2410687

$153.79

20

Grommet

3089902

Unavailable

21

Sensor, Air Pressure

3089895

$199.49

22

SENSOR, THROTTLE POSITION

3140173

$232.74

23

SCREW

3131628

$5.69

24

Switch, Master Lighting

4012487

$76.89

25

Module, Flash/Turn

4012545

$175.99

26

Switch, Hazard

4011761

$68.79
