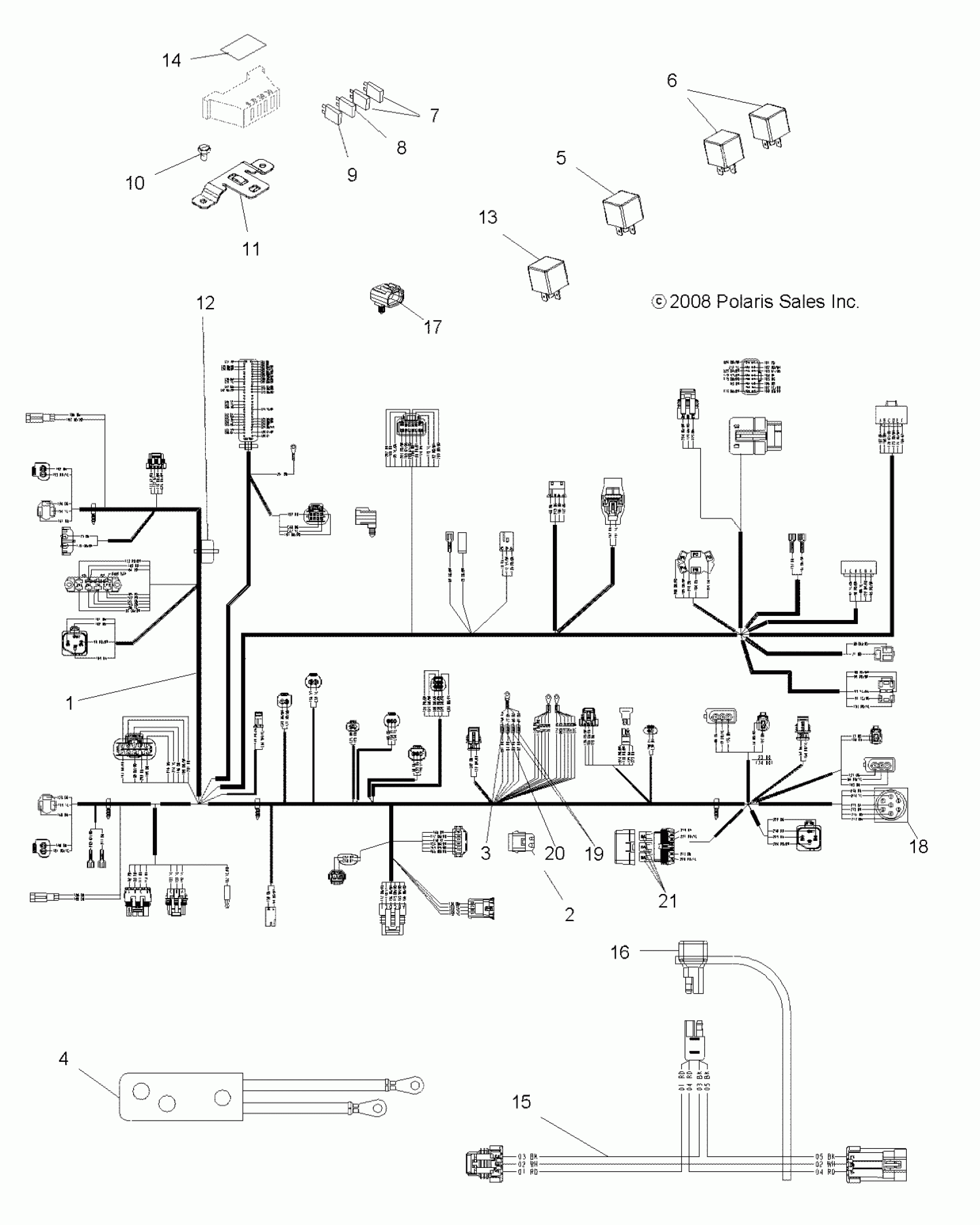

Polaris SPORTSMAN 500 EFI TRACTOR - A09MN50ET ELECTRICAL, HARNESSES - A09MN50ET (49ATVHARNESS09SP500TR) Diagram

#

Description
Price

1

Harness, Main [Incl. 1-3,7-9, 12-21, All Kits]

2411149

$529.99

2

Kit, Harness, Resistor Module

2204890

$127.99

3

Kit, Fusible Link, .5MM

2202147

$79.99

3

KIT, HARNESS, TPS

2878498

$113.32

3

Kit, Harness, Engine Air Temp

2875900

$123.19

3

Kit, Harness, Engine Map Sensor

2876315

$139.99

3

Kit, Harness, Engine Injector

2875901

$123.19

4

Harness, Winch

2410837

$93.08

5

RELAY

4011141

$71.99

6

Relay

4011998

$48.56

7

FUSE, 20 AMP

4011683

$8.79

8

FUSE, 15 AMP

4011682

$7.19

9

FUSE, 5 AMP

4011681

$7.91

10

SCREW

7512024

$4.79

11

BRACKET, FUSE BLOCK

5250236

$7.03

12

Breaker, Circuit, Sealed, 10 Amp

2410692

$24.27

13

Relay

4010725

$48.87

14

DECAL, FUSE BLOCK

7171032

Unavailable

15

Harness, Jumper, Capacitor

2411322

$46.39

16

CAPACITOR-FILTER

4011441

$121.02

17

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

18

Connector, 7-Way, Trailer

4012558

$61.59

19

KIT, FUSIBLE LINK, .8MM

2202607

$39.99

20

Kit, Fusible Link, 1.0mm

2202670

$35.99

21

FUSE-5A,MINI BLADE

4011652

Unavailable
