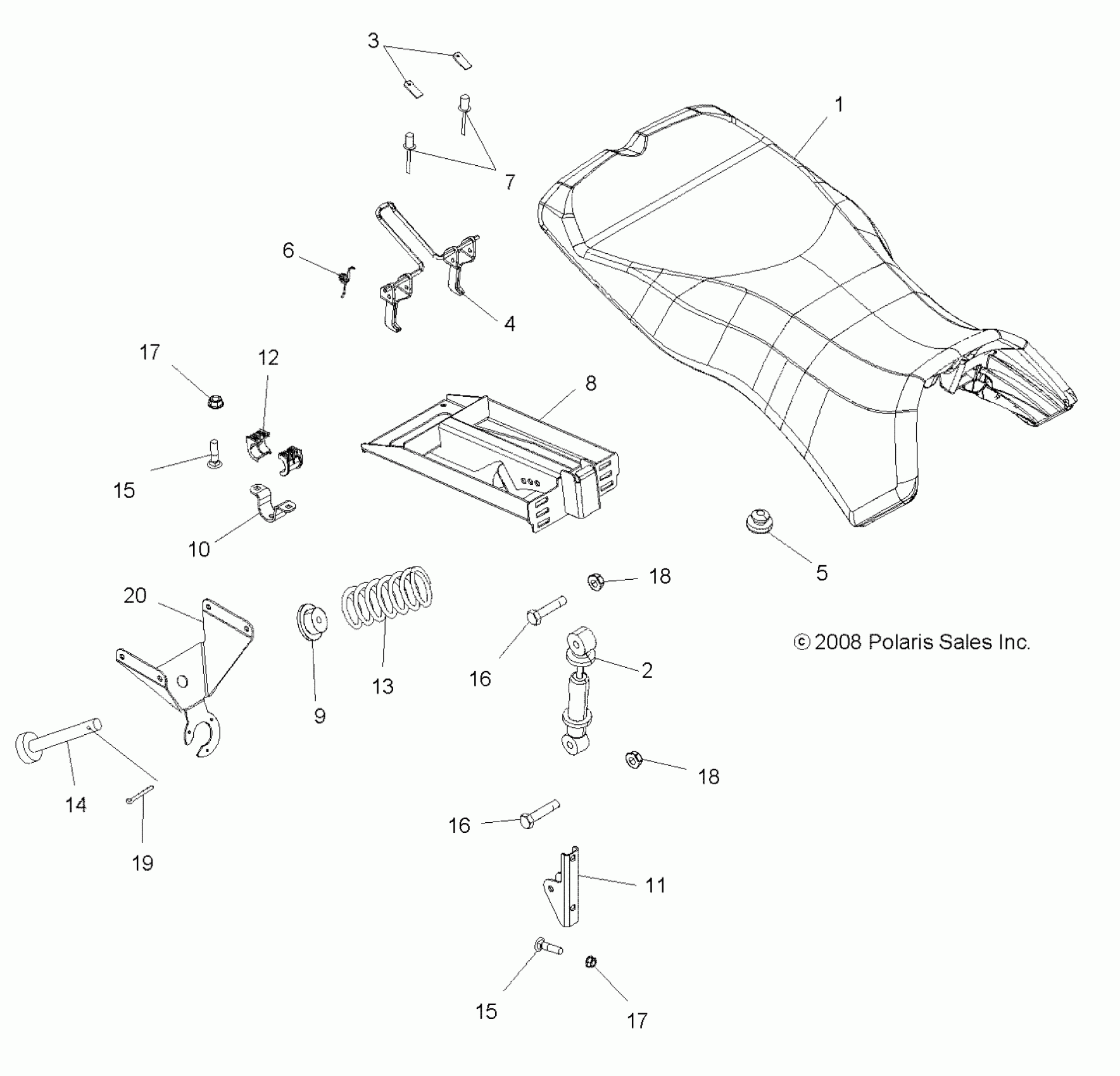

Polaris SPORTSMAN 500 EFI TRACTOR - A09MN50ET BODY, SEAT - A09MN50ET (49ATVSEAT09SP500TR) Diagram

#

Description
Price

1

Covering, Seat

2684341

$148.79

1

Asm., Seat [Incl. Covering, Base, 3-7]

2684232

Unavailable

2

Shock, Seat

1500797

$39.99

3

BRACKET, LEVER RETAINER

5211033

$29.25

4

Latch, Seat

1016733

$62.39

5

BUMPER-RUBBER

5412067

$3.99

6

SPRING, LATCH

7041370

$9.59

7

RIVET

7621403

$1.49

8

Suspension, Seat, Black

1016876-067

$198.39

9

Mount, Spring, Lowered

5136874

Unavailable

10

Bracket, Bushing, Upper Steering

5246732

$32.37

11

Bracket, Shock, Lower, Black

5252925-067

$30.55

12

Bushing, Upper Steering

5433866

Unavailable

13

Spring, Compression, Black

7042050-067

$106.49

14

Knob, Spring Adjust

7081572

Unavailable

15

Bolt, Carriage

7517428

$2.39

15

Bolt, Carriage

7517428

$2.39

16

Screw

7518278

$8.99

16

Screw

7518278

$8.99

17

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

17

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

18

Nut, Flange

7547180

$2.39

18

Nut, Flange

7547180

$2.39

19

Pin, Cotter

7661203

$1.49

20

Bracket, Spring Adjust

1017077-067

Unavailable
