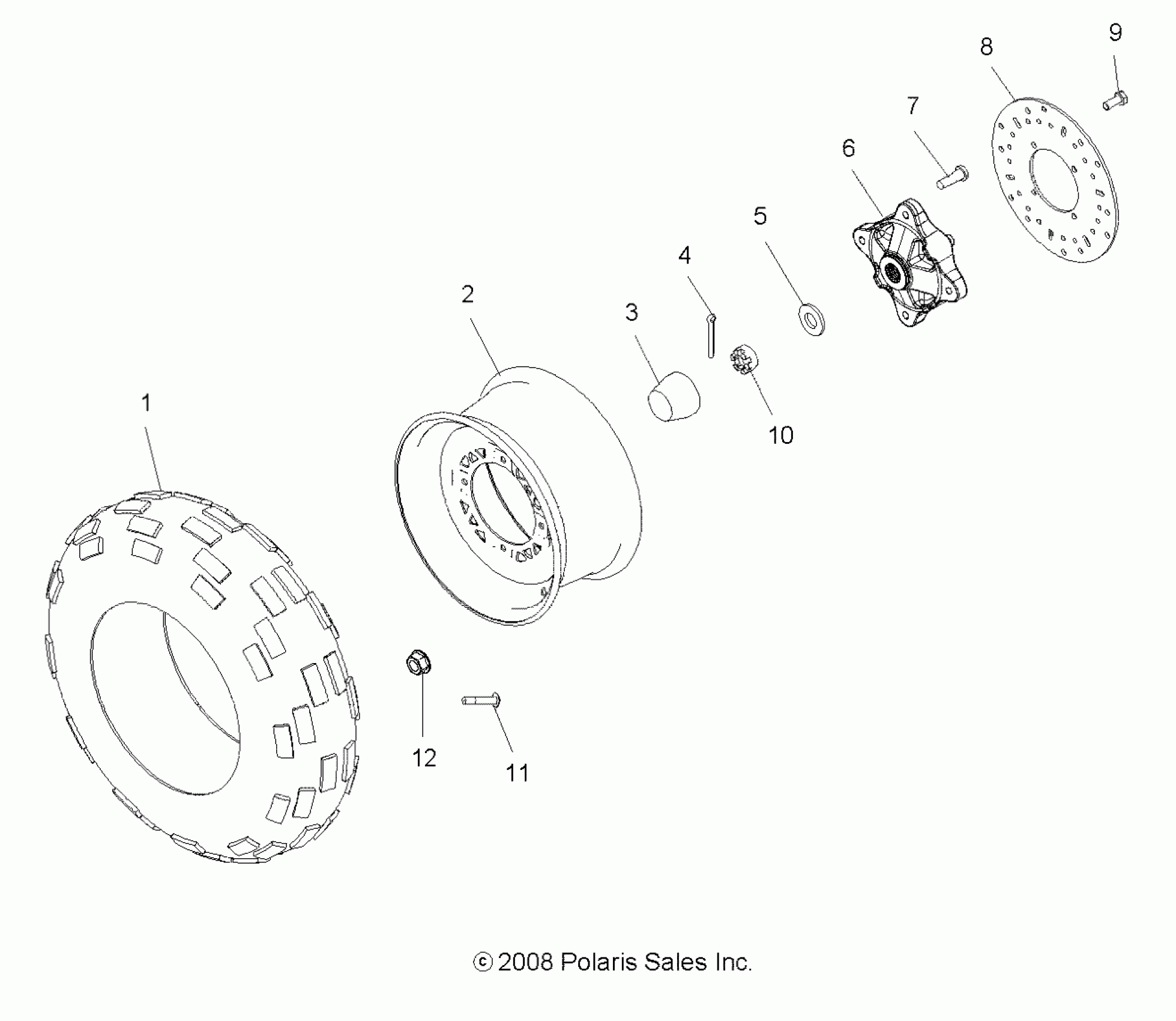

Polaris SPORTSMAN 500 EFI - A09MN50AN/AX WHEELS, FRONT - A09MN50AN/AX (49ATVWHEELFRT096X6) Diagram

#

Description
Price

1

Tire, Front, 26x8R12

5412660

$184.99

2

Rim, Front, Black [AX]

1520269-067

$90.87

2

Rim, Front, Silver [AN]

1520269-486

$90.87

3

COVER, DUST, HUB

5413427

$28.32

4

PIN, COTTER

7661402

$1.99

5

WASHER

7556004

$7.14

6

HUB, WHEEL

5134310

$93.32

7

STUD

7518378

$1.59

8

DISC-BRAKE,8.95 OD,.158

5244314

$76.89

9

BOLT

7512325

$2.38

10

NUT, SLOTTED

7542810

$3.17

11

VALVE-RIM

1525017

$6.46

12

NUT, FLANGE

7547237

$2.38
