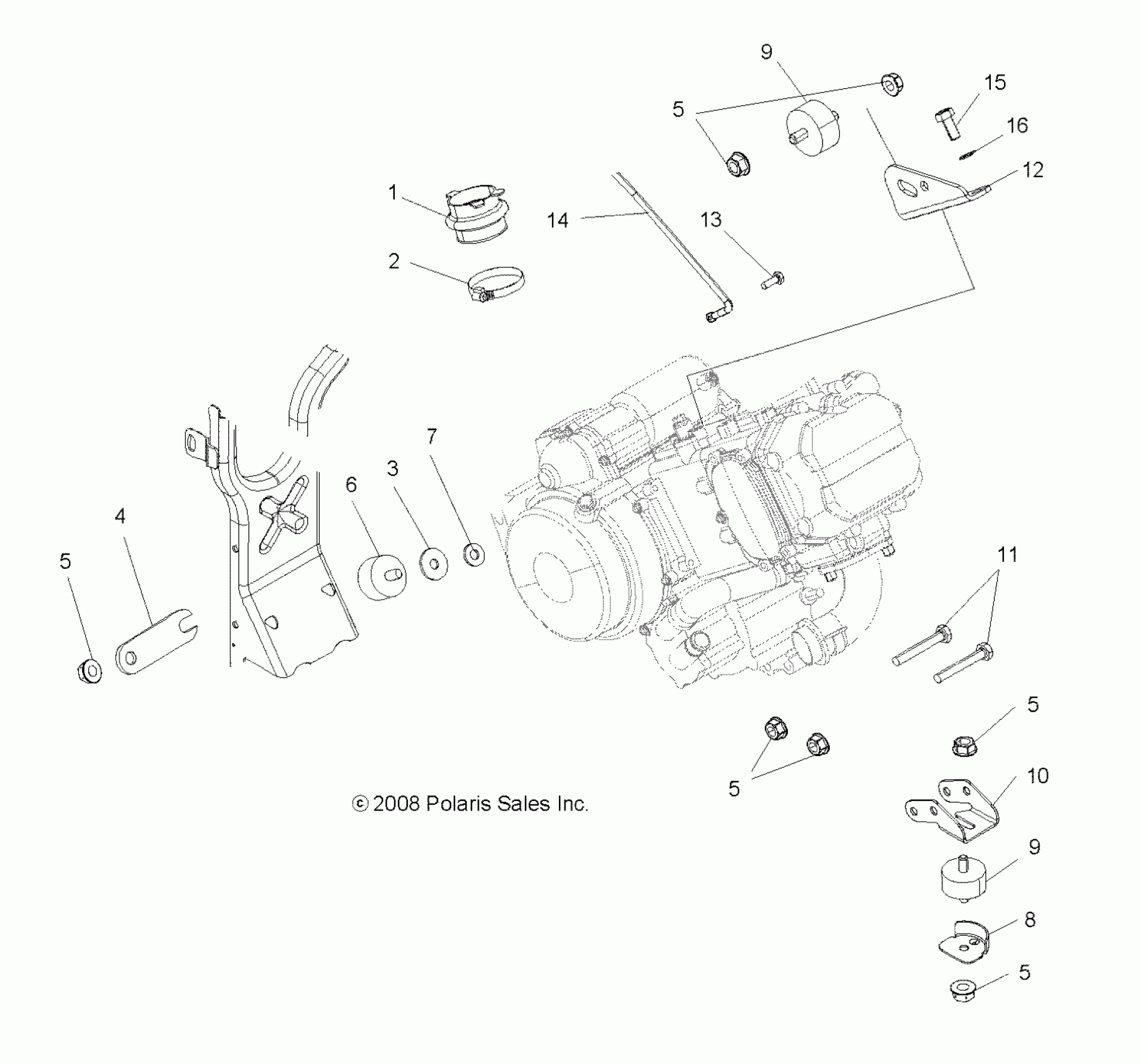

Polaris SPORTSMAN 500 EFI - A09MN50AN/AX ENGINE, MOUNTING - A09MN50AN/AX (49ATVENGINEMTG09SP500) Diagram

#

Description
Price

1

BOOT, CLUTCH INTAKE

5412487

Unavailable

2

Clamp, Narrow Band

7080511

$4.79

3

WASHER, FLAT

7555815

$3.99

4

STRAP, FRAME SUPPORT, BLACK

5224658-067

Unavailable

5

NUT

7547108

$4.79

5

NUT

7547108

$4.79

5

NUT

7547108

$4.79

5

NUT

7547108

$4.79

5

NUT

7547108

$4.79

6

Isolator

3022072

Unavailable

7

Washer, Flat

7555797

$3.99

8

BRACKET, TORQUE STOP

5245043

$15.83

9

ISOLATOR

3022071

$38.60

9

ISOLATOR

3022071

$38.60

10

Mount, Engine, Front

5249873

$31.35

11

BOLT

7518415

$4.79

12

Mount, Engine, Top

5241453

$7.99

13

BOLT, FLANGE

3084874

Unavailable

14

CABLE, FRAME/ENGINE

4010895

$27.99

15

BOLT

7512315

$4.79

16

WASHER, SPRING LOCK

7552901

$1.49
