Description

Price

1

Regulator

4012384

$271.99

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

ECM, Service

4012443

Unavailable

4

Screw

7518552

$3.99

4

Screw

7518552

$3.99

5

Washer, Nylon

7555932

$2.39

6

SWITCH [BRAKE LIGHTS]

4110164

Unavailable

7

KEY SWITCH KEY COVER

5433534

$12.35

8

Switch, Key, 3 Position [Incl. Key]

4012165

$104.24

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

8

Switch, Key, 3 Position [Incl. Key]

4012165

$104.24

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

9

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

10

CAP

5132382

$23.99

11

Sensor, Hall Effect

4011640

$111.99

12

Sensor, Water Temperature

3089892

$99.99

13

Screw

7517658

$5.59

14

Bracket, Voltage Regulator [Built 1/05/09 and Before]

5248725

$10.51

15

Screw [Built 1/05/09 and Before]

7512024

$4.79

15

Screw [Built 1/05/09 and Before]

7512024

$4.79

16

SWITCH, ROTARY

3233835

Unavailable

17

RING, RETAINING

3233834

$10.39

18

Grommet, Air Temp Sensor

5436346

$4.79

19

Sensor, Air Temp

2410687

$143.99

20

Grommet

3089902

Unavailable

21

Sensor, Air Pressure

3089895

Unavailable

22

SENSOR, THROTTLE POSITION

3140173

Unavailable

23

SCREW

3131628

$5.27

24

Bracket, Voltage Regulator [Built 1/06/09 and After]

5253219

$10.51

25

Screw [Built 1/06/09 and After]

7515179

$2.39

25

Screw [Built 1/06/09 and After]

7515179

$2.39

26

Nut, Flange [Built 1/06/09 and After]

7542153

$1.59

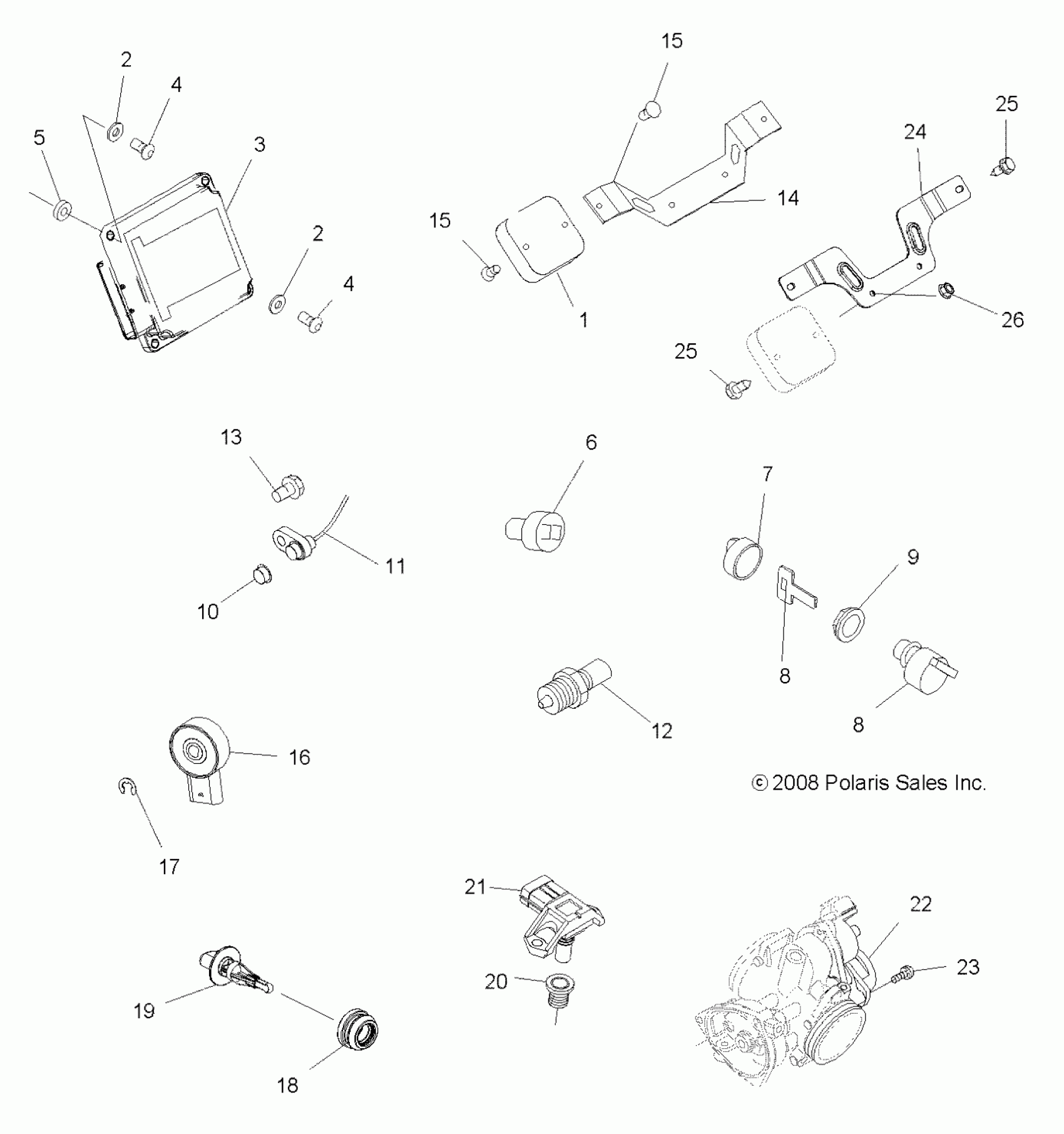

Polaris SPORTSMAN 500 EFI - A09MN50AN/AX ELECTRICAL, SWITCHES and SENSORS and ECM - A09MN50AN/AX (49ATVELECT09SP500EFI) Diagram

Regulator

WSHR-.194X.475X.049 ZTB

WSHR-.194X.475X.049 ZTB

ECM, Service

Screw

Screw

Washer, Nylon

SWITCH [BRAKE LIGHTS]

KEY SWITCH KEY COVER

Switch, Key, 3 Position [Incl. Key]

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

Switch, Key, 3 Position [Incl. Key]

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

NUT-IGNITION SWITCH,HOBBS

CAP

Sensor, Hall Effect

Sensor, Water Temperature

Screw

Bracket, Voltage Regulator [Built 1/05/09 and Before]

Screw [Built 1/05/09 and Before]

Screw [Built 1/05/09 and Before]

SWITCH, ROTARY

RING, RETAINING

Grommet, Air Temp Sensor

Sensor, Air Temp

Grommet

Sensor, Air Pressure

SENSOR, THROTTLE POSITION

SCREW

Bracket, Voltage Regulator [Built 1/06/09 and After]

Screw [Built 1/06/09 and After]

Screw [Built 1/06/09 and After]

Nut, Flange [Built 1/06/09 and After]
