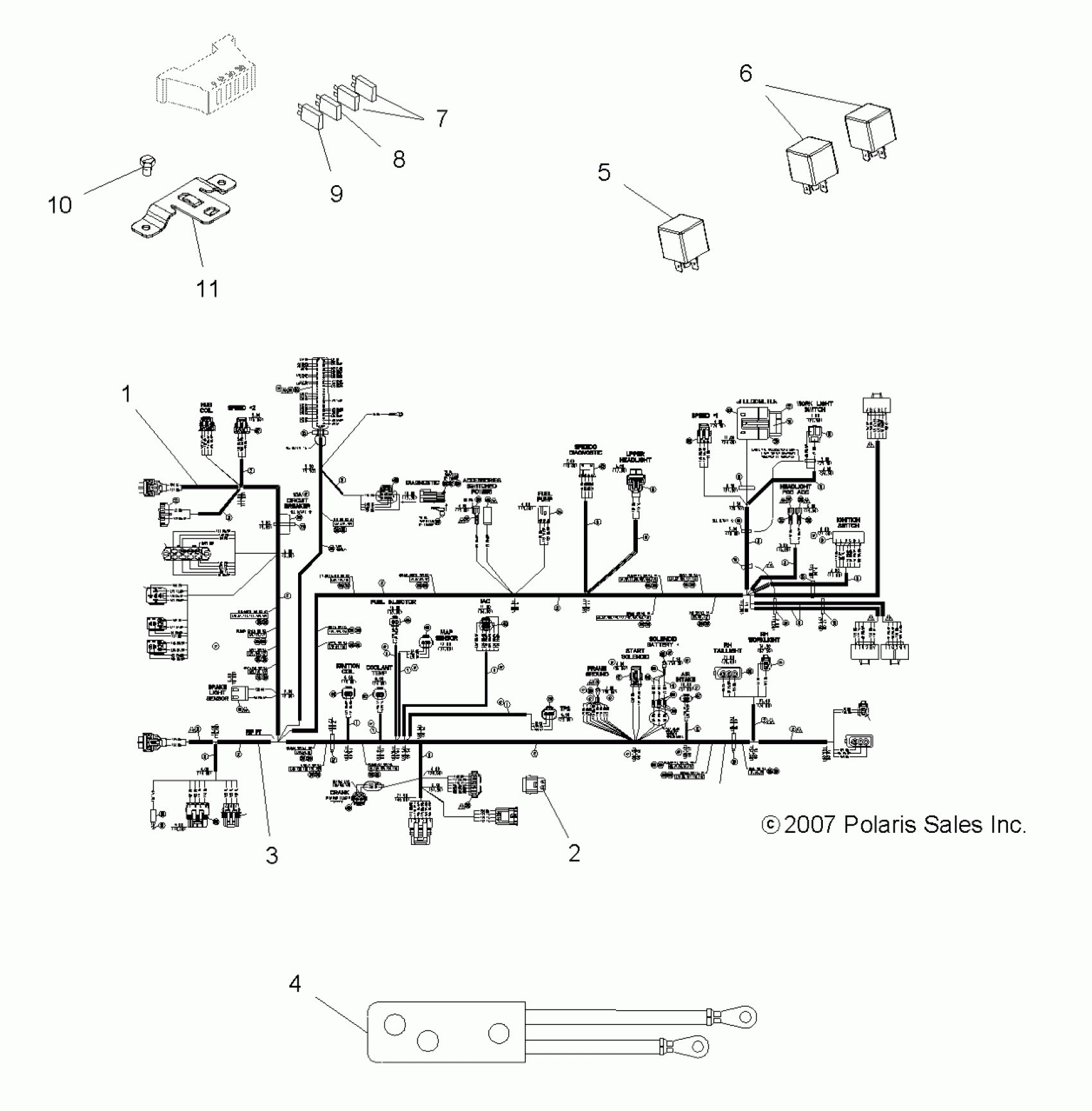

Polaris SPORTSMAN 500 EFI - A09MN50AN/AX ELECTRICAL, HARNESSES - A09MN50AN/AX (49ATVHARNESS08SP500EFI) Diagram

#

Description
Price

1

DECAL, FUSE BLOCK

7171032

Unavailable

1

Harness, Main [Incl. 1-3,7-9, All Kits, Decal]

2410975

Unavailable

2

Kit, Harness, Resistor Module

2204890

$127.99

3

KIT, FUSIBLE LINK, 1.MM

2202670

$35.99

3

Kit, Fusible Link, .5MM

2202147

$79.99

3

KIT, HARNESS, TPS

2878498

$113.32

3

KIT, FUSIBLE LINK, .8MM

2202607

$39.99

3

Kit, Harness, Key Switch

2878509

$149.99

3

Kit, Harness, Engine Air Temp

2875900

$123.19

3

Kit, Harness, Engine Map Sensor

2876315

$139.99

3

Kit, Harness, Engine Injector

2875901

$123.19

4

Harness, Winch

2410837

$93.08

5

RELAY

4011141

$71.99

6

Relay

4011998

$48.56

7

FUSE, 20 AMP

4011683

$8.79

8

FUSE, 15 AMP

4011682

$7.19

9

FUSE, 5 AMP

4011681

$7.91

10

SCREW

7512024

$4.79

11

BRACKET, FUSE BLOCK

5250236

$7.03
