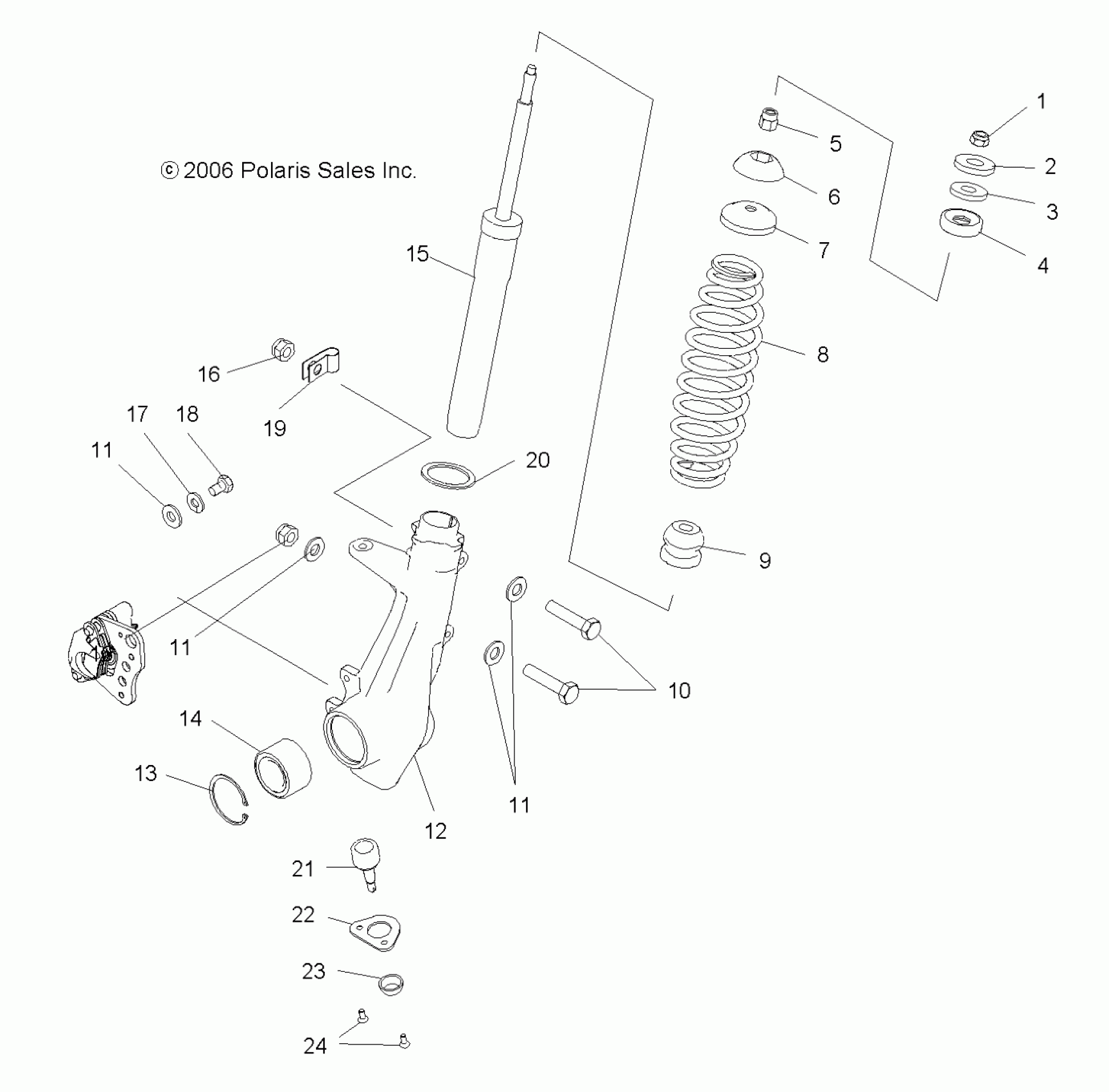

Polaris SPORTSMAN 500 EFI - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY SUSPENSION, STRUT, FRONT - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY (49ATVSTRUT500EFI) Diagram

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

WASHER

7555749

$1.49

SPACER-RUBBER

5810291

$3.99

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

SPACER

5132062

$19.99

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

RETAINER-SPRING,STRUT

5243364

$19.99

Spring, Compression, Black [MH50AB/AQ/AX][MN50AF/AN/AT]

7043247-067

$91.99

Spring, Compression, Silver [MH50AL][MH50AY][MH50AZ]

7043247-385

Unavailable

BUMPER-MCU,17.8MM ID

5412665

$6.39

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

Hubstrut, RH

1822826

$303.99

Hubstrut, LH [Incl. 11,13,14,21,22,23]

1822825

$303.99

RING, RETAINING

7710507

$2.39

Bearing, Axle Tube, Hubstrut

3514342

Unavailable

STRUT, FRONT

7041762

$123.99

NUT-5/16-18 NYLOK-Y

7542324

$1.49

WASHER, SPRING LOCK

7552901

$1.49

SCREW, CAP

7512365

$1.49

CLAMP-CABLE

7080367

$2.39

WASHER-2.06X2.62X.105-Y

5211115

$3.99

Joint, Ball, Greaseless [If built before 10/27/06]

7061130

Unavailable

Joint, Ball, Greaseless [If built after 10/27/06]

7061153

Unavailable

BRACKET-BALL JOINT

5211121

$31.99

BOOT, BALL JOINT, GREASELESS

5412658

$4.79

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49
