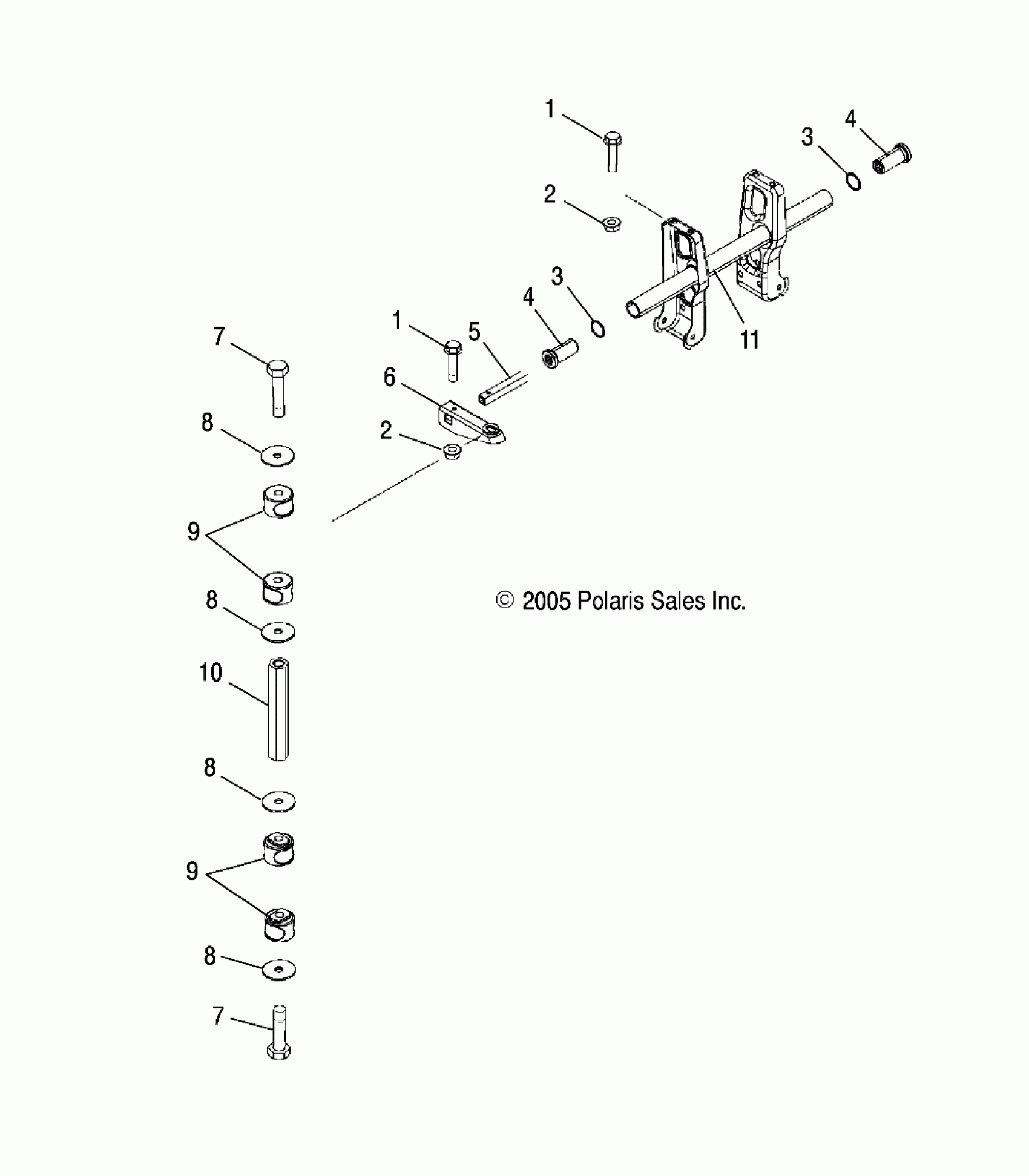

Polaris SPORTSMAN 500 EFI - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY SUSPENSION, REAR, TORSION BAR - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY (4999200139920013C10) Diagram

#

Description
Price

1

BOLT, FLANGE

7518341

$4.79

1

BOLT, FLANGE

7518341

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

3

Washer

7555939

Unavailable

3

Washer

7555939

Unavailable

4

Bushing, Stabilizer Tube

5434549

$8.48

4

Bushing, Stabilizer Tube

5434549

$8.48

5

BAR, STABILIZER TUBE, BLACK

5334114-067

$111.33

6

Arm, Stabilizer Bar, Black

1580107-067

$62.92

7

SCREW

7517231

$7.19

7

SCREW

7517231

$7.19

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

9

Bushing, Stabilizer Link

5436576

Unavailable

9

Bushing, Stabilizer Link

5436576

Unavailable

10

ROD, LINKAGE, STABILIZER

5020827

$47.99

11

Support, Stabilizer, Black

1541802-067

Unavailable
