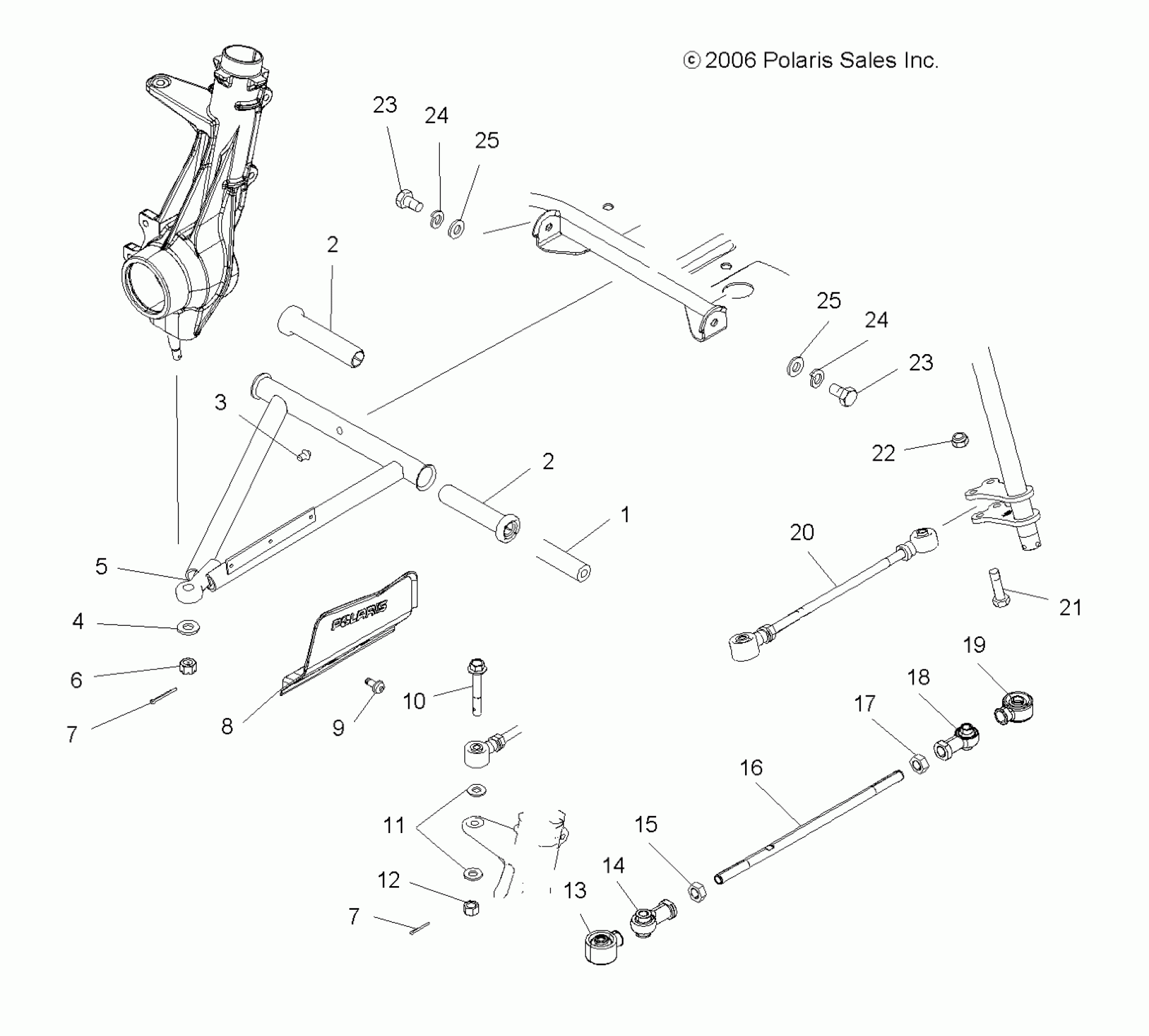

Polaris SPORTSMAN 500 EFI - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY SUSPENSION, FRONT - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY (49ATVAARM500EFI) Diagram

#

Description
Price

1

Shaft, A-Arm

5133806

$30.79

2

Bushing, A-Arm, Long

5434551

$5.01

2

Bushing, A-Arm, Long

5434551

$5.01

3

Fitting, Lubrication

7080433

$1.49

4

Washer [If built before 10/27/06]

7555957

$4.79

5

Kit, A-Frame, RH [Incl. 7,23,24,26,27]

2202907

$127.99

5

Kit, A-Frame, LH [Incl. 7,23,24,26,27]

2202906

$127.99

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

Pin, Cotter

7661203

$1.49

7

Pin, Cotter

7661203

$1.49

8

Shield, CV Front, Black, LH

5435028-070

$23.99

8

Shield, CV Front, Black, RH

5435029-070

$23.99

9

Screw

7512084

$1.49

10

Bolt

7517909

$5.59

11

Washer

7556099

$1.59

12

Nut

7547177

$2.39

13

Boot, Seal, Rod End

5412929

$11.19

14

Rod End, LH

7061138

$51.99

15

Nut, Jam, LH

7547028

$2.39

16

Tie Rod

5134242

$39.99

17

Nut, Jam

7542711

$2.39

18

ROD END, RH

7061139

$55.99

19

Boot, Seal, Rod End

5412928

$11.32

20

Asm., Tie Rod [Incl. 14-19]

1822851

$103.99

21

Screw

7515415

$1.49

22

Nut, Nylok

7542439

$1.49

23

Screw

7512492

$1.49

23

Screw

7512492

$1.49

24

Washer, Spring Lock

7552603

$1.49

24

Washer, Spring Lock

7552603

$1.49

25

WSHR-.813X.406X.105-Y

7555832

$2.39

25

WSHR-.813X.406X.105-Y

7555832

$2.39
