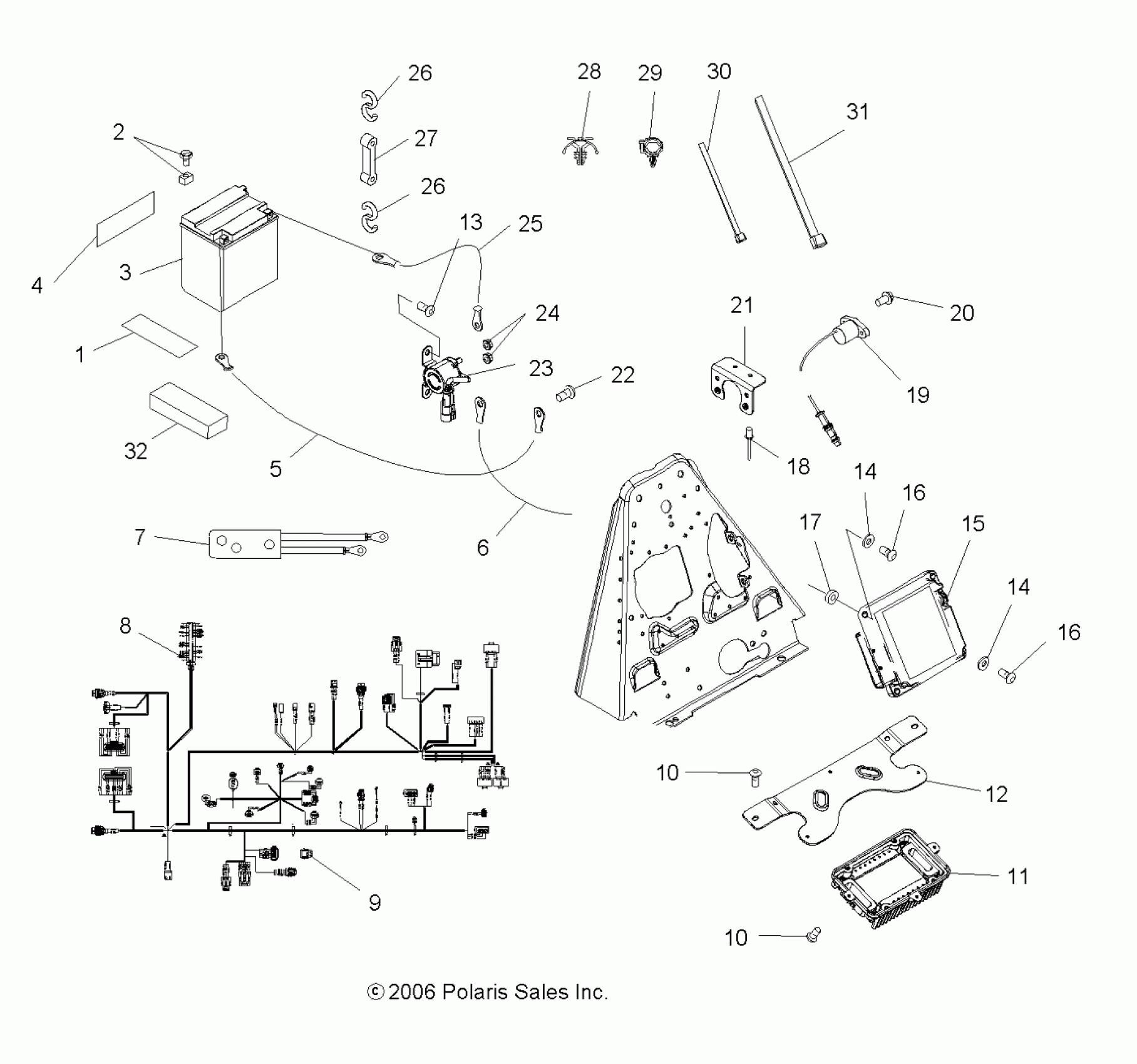

Polaris SPORTSMAN 500 EFI - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY ELECTRICAL - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY (49ATVELECT500EFI) Diagram

#

Description
Price

1

FOAM-SEAL,REAR COOLER

5810947

$4.03

2

Kit, Battery Bolt

2202099

$5.99

3

Battery

4011496

Unavailable

4

PAD-BATTERY

5810290

$7.27

5

Cable

4010074

Unavailable

6

Cable, Solenoid/Starter

4010093

$47.99

7

Harness, Winch, Prewire

2410837

$93.08

8

Kit, Fusible Link, 1mm

2202670

$35.99

8

KIT, HARNESS, TPS

2878498

$113.32

8

Kit, Harness, Engine Air Temp

2875900

$123.19

8

Kit, Harness, Engine Map Sensor

2876315

$139.99

8

Kit, Harness, Engine Injector

2875901

$123.19

8

Harness, Main [MN50AF/AN/AT/AY][Incl. 9, Fuse Link Kits, Harness Kits]

2410769

Unavailable

8

Harness, Main [MH50AB/AL/AQ/AX/AY/AZ][If built before 4/18/07][Incl. 9, Fuse Link Kit, Harness Kits]

2410861

Unavailable

8

Harness, Main [MH50AB/AL/AQ/AX/AY/AZ][If built after 4/18/07][Incl. 9, Fuse Link Kit, Harness Kits]

2411003

Unavailable

9

Kit, Harness, Resistor Module

2204890

$127.99

10

SCREW

7512024

$4.79

10

SCREW

7512024

$4.79

11

Module, Control

4011517

$523.26

12

Bracket, Module

5249459

Unavailable

13

Screw

7512084

$1.49

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

15

ECM, Service

4012443

Unavailable

16

Screw

7518552

$3.99

16

Screw

7518552

$3.99

17

Washer, Nylon

7555932

$2.39

18

RIVET-3/16-.090-.290

7661637

$1.49

19

Coil, Ignition

4011487

Unavailable

20

Screw

7518196

$1.49

21

Bracket, Coil Mount

5249815

$6.39

22

Bolt

7512232

$1.49

23

Solenoid, Starter

4010947

Unavailable

24

NUT, FLANGE

7547270

$3.99

25

Cable, Battery/Solenoid

4010471

Unavailable

26

Hook, Battery Strap

7010032

$1.59

26

Hook, Battery Strap

7010032

$1.59

27

STRAP, BATTERY HOLDDOWN

5412499

$4.62

28

MOUNT, CABLE TIE

7080965

$7.19

29

CLIP, ROSEBUD

4020139

$4.79

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

32

Foam, Panel, LH

5812138

$6.39
