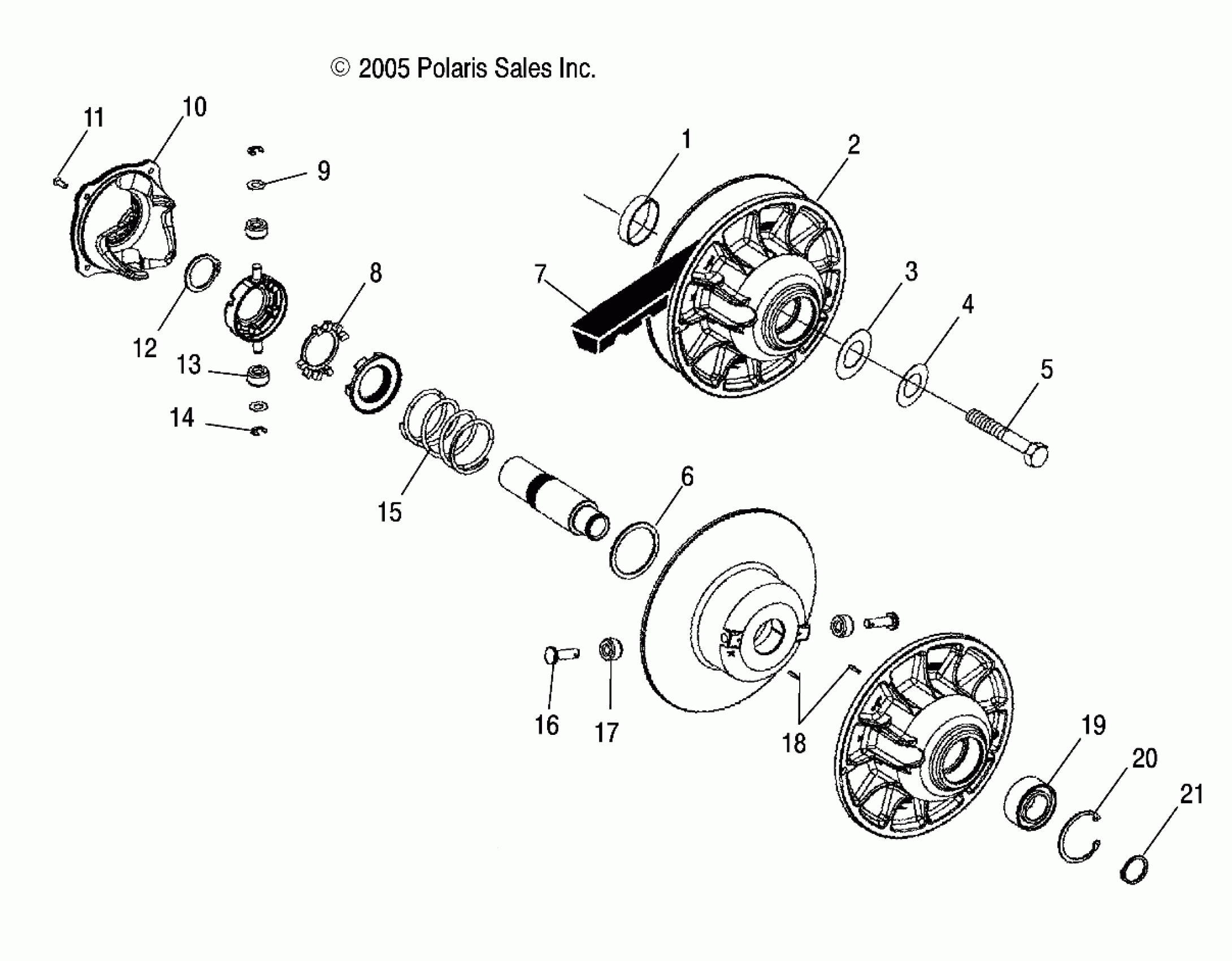

Polaris SPORTSMAN 500 EFI - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY CLUTCH, DRIVEN - A07MH50AL/MN50AF/AN/AT/AY (4999200229920022C06) Diagram

BUSHING

7556120

Unavailable

Asm., Driven Clutch [Incl. 6,8,9,11-14,16-19][If built before 8/07/06]

1322548

Unavailable

Asm., Driven Clutch, EBS, Damped [Incl. 6,8,9,11-14,16-19][If built after 8/07/06]

1322706

$479.69

WASHER, DOMED

5250562

$2.39

WASHER, SPRING LOCK

7552901

$1.49

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

WASHER, THRUST

3234200

$7.19

BELT, DRIVE

3211113

$79.99

BELT-HD,DRIVE,14.35,CD,N [HD OPTION]

3212332

$139.99

RETAINER, SPRING, INNER

7710564

Unavailable

WASHER, THRUST

7556226

$5.65

Asm., Cam

3234356

$371.99

Screw, Cap

3234192

$4.79

RING, RETAINING

7710522

$13.59

ROLLER, CLUTCH

3234207

$47.99

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

Spring, Compression, White/Yellow [Use w/1322548]

3234199

Unavailable

Spring, Compression, Red [Use w/1322706]

3234451

$67.99

PIN, ROLLER

3234201

$15.99

ROLLER, CLUTCH

3234197

$47.99

PIN,SPRING SLOTTED .125X.625

3234202

$3.99

BEARING, BALL

3234203

$23.99

Ring, Retaining

3234204

$7.99

RING, RETAINING

3234205

$11.19
