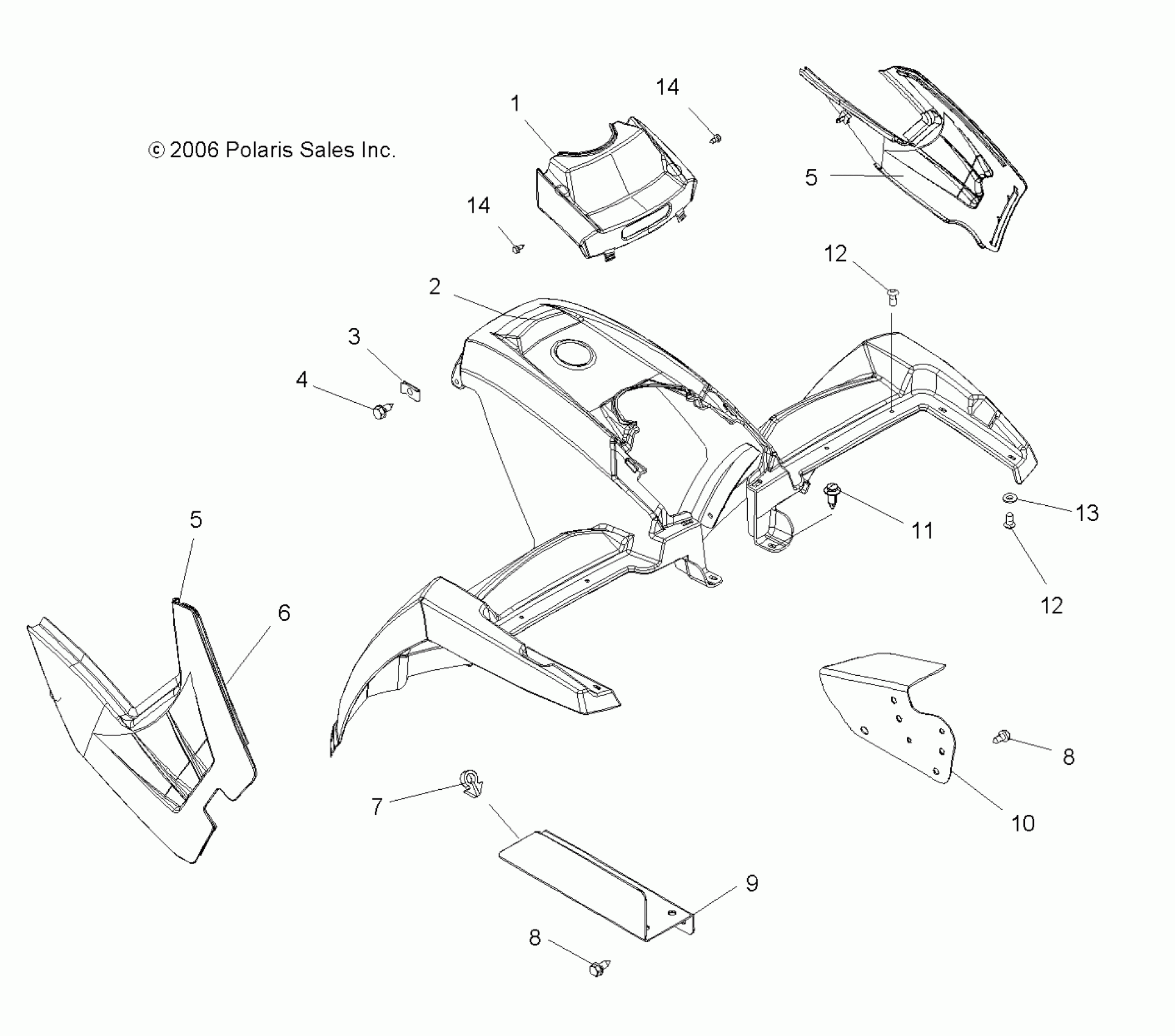

Polaris SPORTSMAN 500 EFI - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY CAB, FRONT - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY (49ATVCAB500EFI) Diagram

#

Description
Price

1

Cover, Front, Indy Red [MH50AZ]

5436715-293

$93.08

1

Clip, Trim, Metal

7661893

$4.79

1

Cover, Front, Black Metallic [MH50AY][MN50AY]

5436715-177

$89.03

1

Cover, Front, Painted Stealth Black [MN50AN]

5436717-464

Unavailable

1

Cover, Front, Sonic Blue [MN50AF]

5436715-341

$115.99

1

Cover, Front, NBU [MH50AQ][MN50AT]

5436716-455

Unavailable

1

Cover, Front, Painted Sunset Red [MH50AB]

5436717-520

Unavailable

1

Cover, Front, Camo Green Metallic [MH50AX]

5436715-400

Unavailable

1

Cover, Front, Sage Brush [MH50AL]

5436717-498

Unavailable

2

Cab, Front, Black Metallic [MH50AY][MN50AY]

5437001-177

Unavailable

2

Asm., Cab, Front, NBU [MH50AQ][MN50AT]

2632975-455

Unavailable

2

Cab, Front, Camo Green Metallic [MH50AX]

5437001-400

Unavailable

2

Asm., Cab, Front, Sonic Blue [MN50AF]

2632864-341

Unavailable

2

Cab, Front, Indy Red [MH50AZ]

5437001-293

Unavailable

2

Asm., Cab, Front, Painted Stealth Black [MN50AN]

2633176-464

Unavailable

2

Asm., Cab, Front, Painted Sunset Red [MH50AB]

2633176-520

Unavailable

2

Asm., Cab, Front, Sage Brush [MH50AL]

2633176-498

Unavailable

3

NUT, SPEED

7670057

$1.49

4

SCREW

7517219

$4.79

5

Asm., Panel/Foil, Black Metallic, RH [MN50AF][MH50AX]

2632936-177

$224.99

5

Asm., Panel/Foil, Black, RH [MH50AZ]

2632936-070

$224.99

5

Panel, Side, Black, LH [MH50AZ]

5435559-070

Unavailable

5

Panel, Side, Black Metallic, LH [MN50AF][MH50AX]

5435559-177

$188.79

5

Asm., Panel/Foil, Painted Stealth Black, RH [MN50AN]

2633179-464

$404.99

5

Asm., Panel/Foil, Silver, RH [MH50AY][MN50AY]

2632936-473

$224.99

5

Panel, Side, Silver, LH [MH50AY][MN50AY]

5435559-473

$184.99

5

Panel, Side, NBU, LH [MH50AQ][MN50AT]

5435919-455

Unavailable

5

Asm., Panel/Foil, NBU, RH [MH50AQ][MN50AT]

2633048-455

Unavailable

5

Panel, Side, Painted Stealth Black, LH [MN50AN]

5436537-464

$549.99

5

Panel, Side, Black Metallic, LH [MH50AB/AL]

5436537-177

Unavailable

5

Asm., Panel/Foil, Black Metallic, RH [MH50AB/AL]

2633179-177

$384.99

5

Asm., Panel/Foil, Black Metallic, RH [MN50AF][MH50AX]

2632936-177

$224.99

5

Asm., Panel/Foil, Black, RH [MH50AZ]

2632936-070

$224.99

5

Panel, Side, Black, LH [MH50AZ]

5435559-070

Unavailable

5

Panel, Side, Black Metallic, LH [MN50AF][MH50AX]

5435559-177

$188.79

5

Asm., Panel/Foil, Painted Stealth Black, RH [MN50AN]

2633179-464

$404.99

5

Asm., Panel/Foil, Silver, RH [MH50AY][MN50AY]

2632936-473

$224.99

5

Panel, Side, Silver, LH [MH50AY][MN50AY]

5435559-473

$184.99

5

Panel, Side, NBU, LH [MH50AQ][MN50AT]

5435919-455

Unavailable

5

Asm., Panel/Foil, NBU, RH [MH50AQ][MN50AT]

2633048-455

Unavailable

5

Panel, Side, Painted Stealth Black, LH [MN50AN]

5436537-464

$549.99

5

Panel, Side, Black Metallic, LH [MH50AB/AL]

5436537-177

Unavailable

5

Asm., Panel/Foil, Black Metallic, RH [MH50AB/AL]

2633179-177

$384.99

6

Foil, Side Panel, RH

5813041

Unavailable

6

Foil, Side Panel, Front

5813055

Unavailable

6

Foil, Side Panel, L-Shape

5813031

Unavailable

7

Clip [If built after 11/28/06]

7670102

$2.39

7

Clip, Snap-In [If built before 11/28/06]

7080756

$4.79

8

SCREW

7517386

$1.49

8

SCREW

7517386

$1.49

9

Guard, Splash, RH

5248100

Unavailable

10

GUARD, SPLASH, LH

5246872

$44.99

11

Rivet

7661855

$1.49

12

SCREW

7512026

$1.49

12

SCREW

7512026

$1.49

13

WASHER

7556034

$2.39

14

Screw [MH50AX]

7517561

$1.59

14

Screw [MH50AX]

7517561

$1.59
