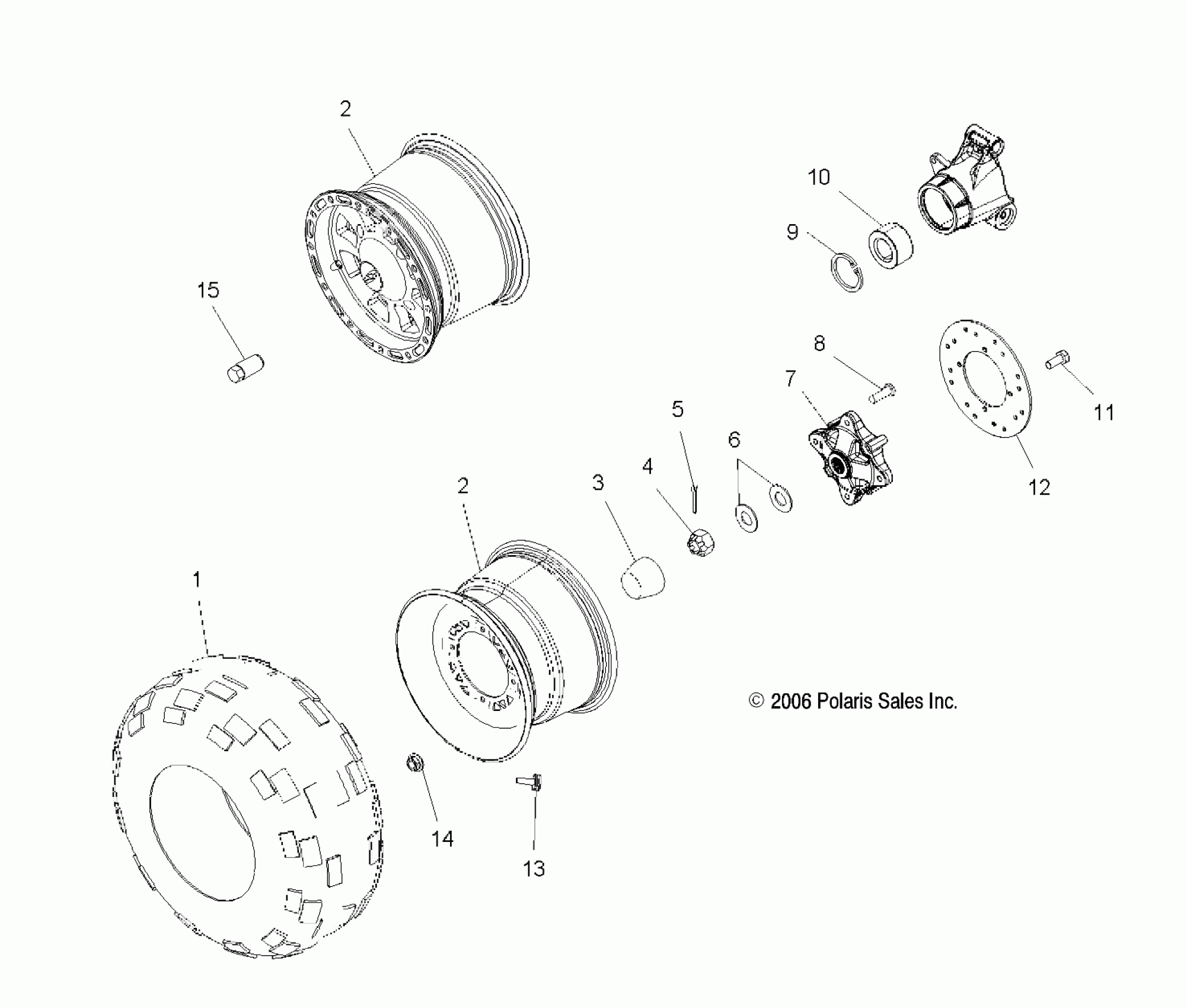

Polaris SPORTSMAN 500 EFI - A06MH50AQ WHEEL DRIVE, REAR - A06MH50AQ/AX/AY/AZ/AL/AT (49ATVWHEELREAR06500EFI) Diagram

#

Description
Price

1

Tire, Rear, 26x11R12

5412661

$184.99

2

WELD-RIM,REAR,12X8.0,BLK

1520457-067

Unavailable

2

Rim, Rear, Cast Aluminum [AL]

1520899

Unavailable

2

Rim, Rear, NBU Camo [AT]

1520457-455

$196.17

2

WELD-RIM,REAR,12X8.0,BLK

1520457-067

Unavailable

2

Rim, Rear, Cast Aluminum [AL]

1520899

Unavailable

2

Rim, Rear, NBU Camo [AT]

1520457-455

$196.17

3

Cover, Dust, Hub [Not on AL]

5411164

$24.27

4

Nut, Castle

7543005

Unavailable

5

PIN, COTTER

7661404

$4.79

6

WASHER, CONE

7555796

$7.99

7

Hub, Rear Wheel

5134311

Unavailable

8

Stud [AL]

7518378

$1.59

8

Stud

7515513

$1.49

9

RING, RETAINING

7710440

$10.39

10

Bearing

3585502

Unavailable

11

BOLT

7512325

$2.39

12

Disc, Brake, Rear

5244635

$75.99

13

VALVE-RIM

1525017

$5.59

14

NUT, FLANGE

7547237

$2.39

15

Nut, Wheel [AL]

7547309

$3.59
