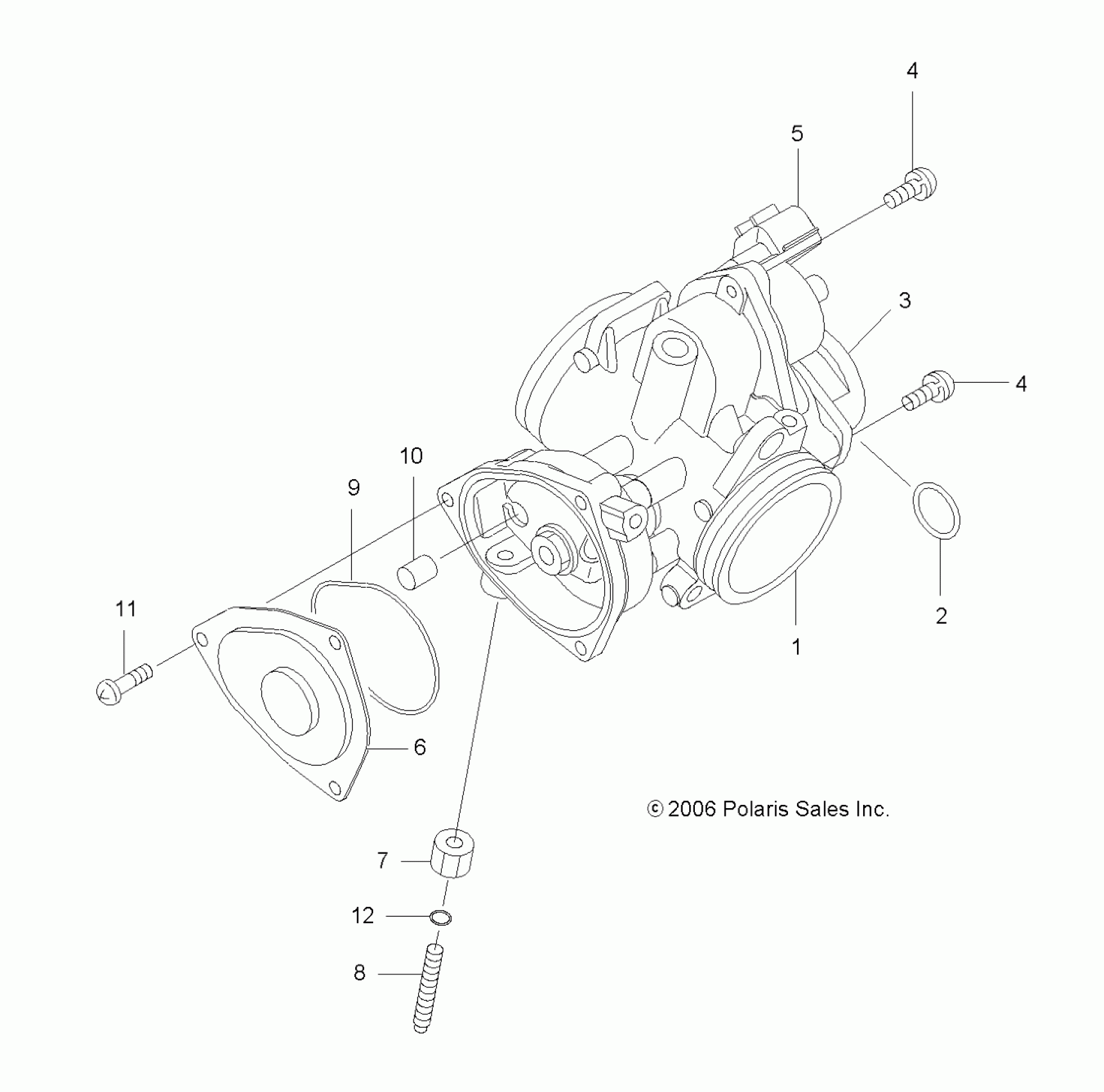

Polaris SPORTSMAN 500 EFI - A06MH50AQ THROTTLE BODY (If built after 2/01/06) - A06MH50AQ/AX/AY/AZ/AL/AT (49ATVTHROTTLEBODY500EFI) Diagram

#

Description
Price

1

Asm., Throttle Body

3131640

$859.99

2

O-Ring

3131627

$28.32

3

SENSOR, THROTTLE POSITION

3140173

$232.74

4

SCREW

3131628

$5.69

4

SCREW

3131628

$5.69

5

KIT, HARNESS, IAC

2878507

$179.99

5

MOTOR, ISC STEPPING

3131629

$237.49

6

COVER

3131643

$28.99

7

NUT

3131644

$29.99

8

SCREW, ADJUST

3131645

$39.99

9

O-RING

3131646

$3.22

10

GUIDE, CABLE

3130543

$32.37

11

SCREW

3131647

$1.59

12

O-RING

3131501

$2.83
