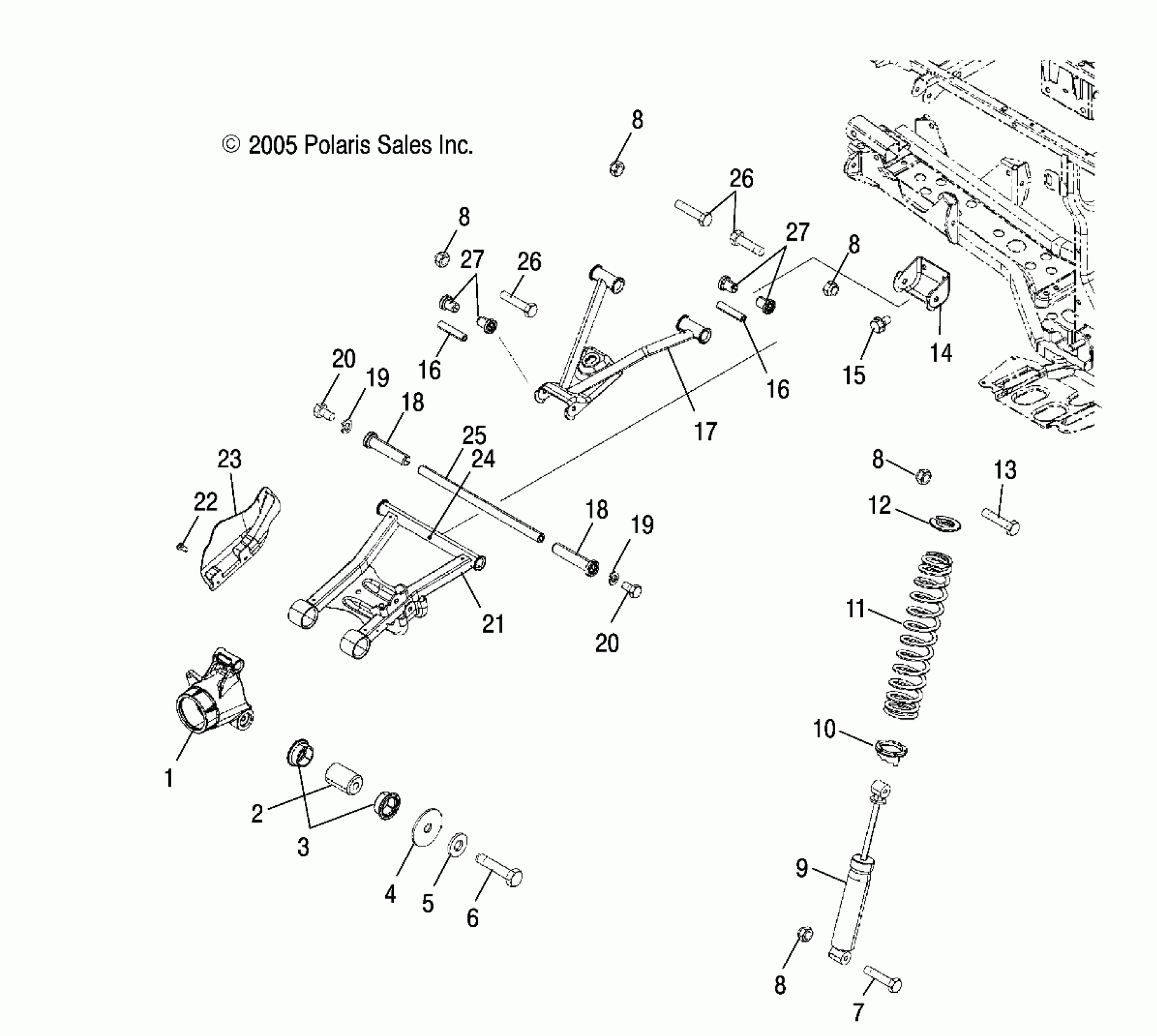

Polaris SPORTSMAN 500 EFI - A06MH50AQ SUSPENSION, REAR - A06MH50AQ/AX/AY/AZ/AL/AT (4999200139920013C09) Diagram

#

Description
Price

1

Carrier, Wheel Bearing

5134206

$115.99

2

Bushing, Bearing Carrier

5631142

$23.16

3

Bushing, Control, Lower

5434550

$4.62

4

WASHER, FLAT

7555740

$1.59

5

WASHER-LOCK, 7/16-B

7552614

$1.59

6

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

7

Screw

7515415

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

9

SHOCK, REAR

7043100

$87.99

10

CAM, ADJUSTING, SPRING

5630551

$31.99

11

Spring, Compression, Rear, Black [AQ][AT]

7043091-067

$97.76

11

Spring, Compression, Rear, Silver [AL]

7043091-385

$89.03

11

Spring, Compression, Rear, Indy Red

7043091-293

$97.76

12

Retainer, Spring

5630885

$10.03

13

Screw

7515433

$1.59

14

Bracket, A-Arm Pivot

5247345

$64.99

15

Bolt

7518364

$1.59

16

SHAFT, A-ARM, SHORT

5020826

$11.99

16

SHAFT, A-ARM, SHORT

5020826

$11.99

17

Arm, Control, Upper, Indy Red, LH

1014320-293

Unavailable

17

Arm, Control, Upper, Indy Red, RH

1014321-293

$121.02

17

Arm, Control, Upper, Black, LH [AQ][AT]

1014320-067

$95.99

17

Arm, Control, Upper, Black, RH [AQ][AT]

1014321-067

$95.99

17

Arm, Control, Upper, Silver, LH [AL]

1014320-385

Unavailable

17

Arm, Control, Upper, Silver, RH [AL]

1014321-385

$70.39

18

Bushing, A-Arm, Long

5434551

$5.01

18

Bushing, A-Arm, Long

5434551

$5.01

19

Washer, Spring Lock

7552603

$1.49

19

Washer, Spring Lock

7552603

$1.49

20

Screw

7512492

$1.49

20

Screw

7512492

$1.49

21

Control, Lower, Indy Red, LH

1015117-293

Unavailable

21

Control, Lower, Indy Red, RH

1015118-293

Unavailable

21

Control, Lower, Black, LH [AQ][AT]

1015117-067

Unavailable

21

Control, Lower, Black, RH [AQ][AT]

1015118-067

Unavailable

21

Control, Lower, Silver, RH [AL]

1015118-385

Unavailable

21

Control, Lower, Silver, LH [AL]

1015117-385

Unavailable

22

Screw

7512084

$1.49

23

SHIELD, CV REAR, BLACK, LH

5435008-070

$23.99

23

SHIELD, CV REAR, BLACK, RH

5435009-070

$23.99

24

Fitting, Lubrication

7080433

$1.49

25

Shaft, A-Arm

5133806

$30.79

26

BOLT

7515472

$2.39

26

BOLT

7515472

$2.39

27

Bushing, A-Arm, Short

5434548

$2.38

27

Bushing, A-Arm, Short

5434548

$2.38
