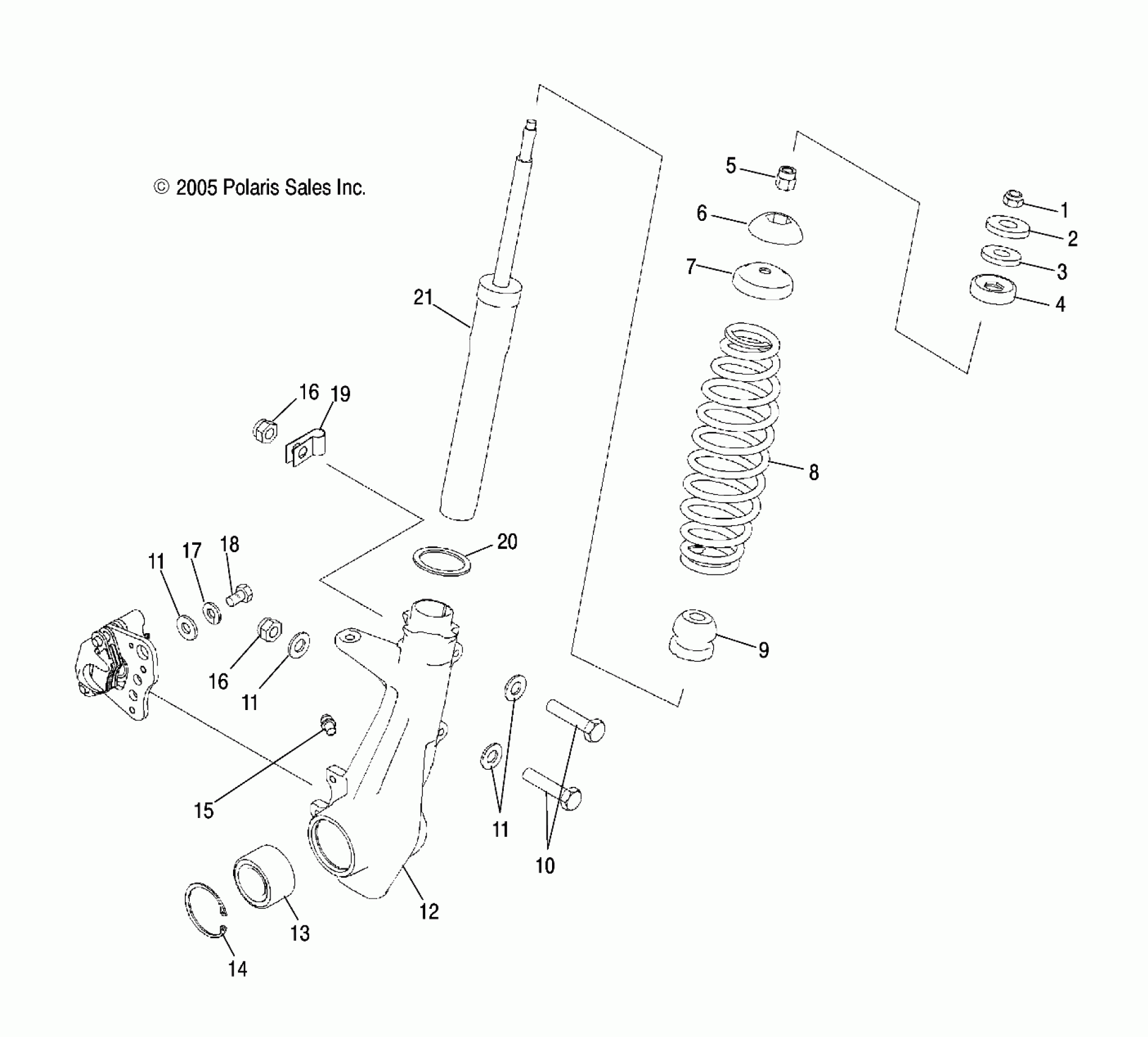

Polaris SPORTSMAN 500 EFI - A06MH50AQ STRUT, FRONT - A06MH50AQ/AX/AY/AZ/AL/AT (4999201699920169B06) Diagram

#

Description
Price

1

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

2

WASHER

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

5

SPACER

5132062

$19.99

6

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

7

RETAINER-SPRING,STRUT

5243364

$19.99

8

Spring, Compression, Black [AQ]

7042299-067

$139.99

8

Spring, Compression, Red

7042299-293

$139.99

8

Spring, Compression, Silver [AL]

7042299-385

$139.99

9

BUMPER-MCU,17.8MM ID

5412665

$6.39

10

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Support, Hubstrut, RH

5134155

Unavailable

12

Support, Hubstrut, LH

5134154

$293.80

13

Bearing, Hubstrut

3514342

Unavailable

14

RING, RETAINING

7710507

$2.39

15

Fitting, Lubrication w/Ball

7080306

$3.19

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

WASHER, SPRING LOCK

7552901

$1.49

18

SCREW, CAP

7512365

$1.49

19

CLAMP-CABLE

7080367

$2.39

20

WASHER-2.06X2.62X.105-Y

5211115

$3.99

21

STRUT, FRONT

7041762

$123.99
