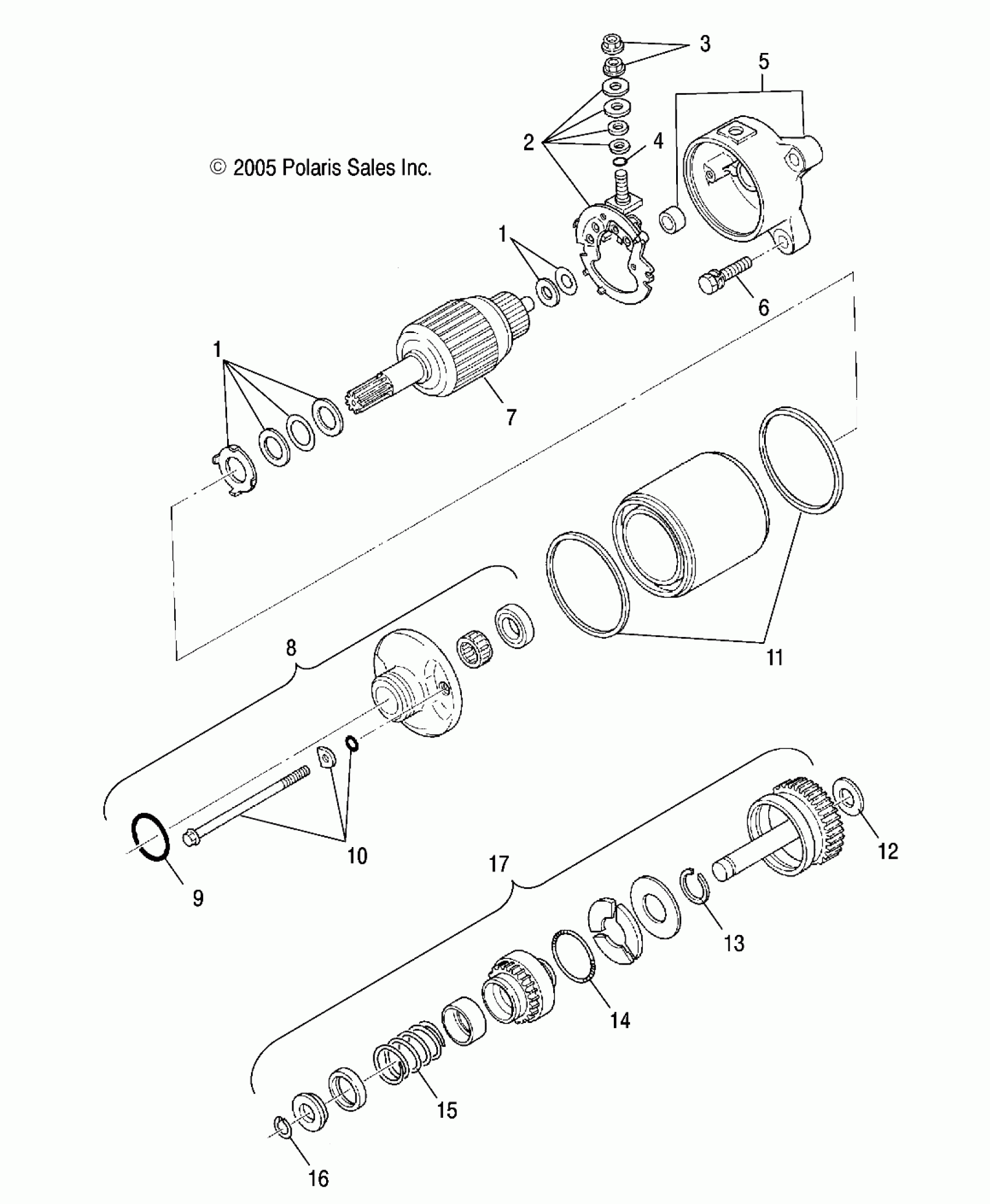

Polaris SPORTSMAN 500 EFI - A06MH50AQ STARTING MOTOR - A06MH50AQ/AX/AY/AZ/AL/AT (4999200139920013D14) Diagram

#

Description
Price

-

Asm., Starting Motor [Incl. 1-5,7-11]

3084981

Unavailable

1

Washer Set

3084982

Unavailable

1

Washer Set

3084982

Unavailable

2

Brush, Carbon, Set

3084406

Unavailable

3

NUT, FLANGE

3083649

$3.99

4

O-RING

3084408

Unavailable

5

Asm., Bracket, Rear

3085034

$91.99

6

ASM., BOLT AND WASHER

3082038

$3.99

7

Asm., Armature

3085353

Unavailable

8

Asm., Front Bracket [Incl. 9]

3085033

$137.60

9

O-Ring

3088161

Unavailable

10

Asm., Bolt Set [Incl. 4]

3084983

$23.99

11

RING, RUBBER

3084405

Unavailable

12

Washer

3083737

Unavailable

13

CLIP

3084412

$9.59

14

SPRING, WEIGHT

3084411

$15.67

15

SPRING, RETURN

3084410

$2.47

16

CLIP

3084409

$7.19

17

Asm., Gear Shaft [Incl. 13-16]

3087030

Unavailable
