Partiron

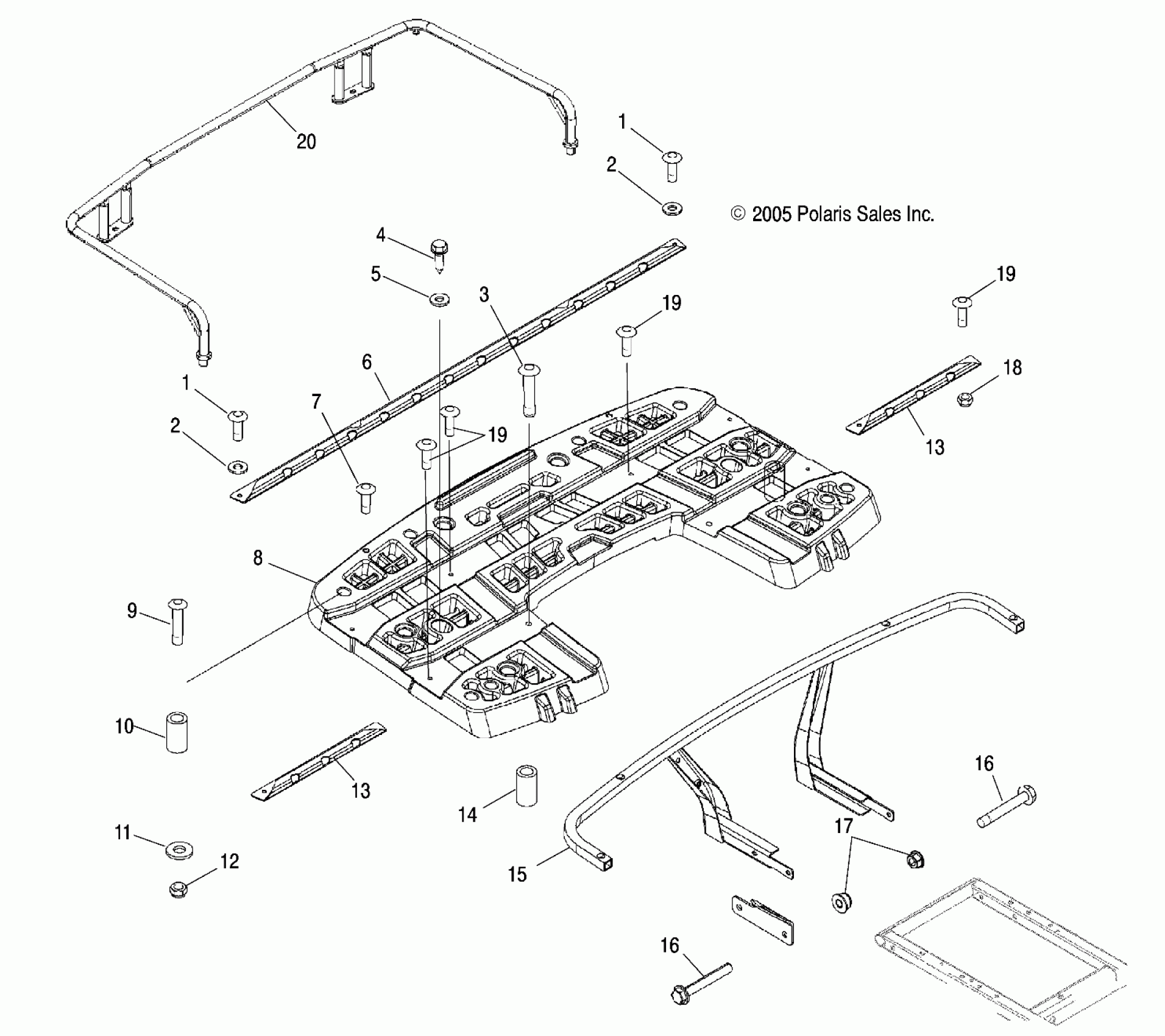

Polaris SPORTSMAN 500 EFI - A06MH50AQ RACK MOUNTING, REAR - A06MH50AQ/AX/AY/AZ/AL/AT (4999200139920013A05) Diagram

#

Description
Price

1

SCREW

7517686

$1.59

1

SCREW

7517686

$1.59

2

Washer

7555935

$2.39

2

Washer

7555935

$2.39

3

Screw

7517983

$9.59

4

Screw

7512095

$4.79

5

Washer

7555798

$1.49

6

Channel, Rear Rack, Flat Black Wrinkle

5248469-418

$99.99

7

SCREW

7518504

$1.59

8

Asm., Rack, Rear, Black [Incl. Warning Decal]

2633208-070

$231.99

9

SCREW

7518462

$2.39

10

Spacer

5436146

Unavailable

11

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

Channel, Front, Flat Black Wrinkle

5248471-418

$23.99

13

Channel, Front, Flat Black Wrinkle

5248471-418

$23.99

14

Spacer

5334787

Unavailable

15

SUPPORT, REAR RACK, BLACK

1014668-067

$255.19

16

BOLT, FLANGE

7518341

$4.79

16

BOLT, FLANGE

7518341

$4.79

17

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

18

Nut, Nylok, Flange

7542153

$1.59

19

SCREW

7517230

$1.49

19

SCREW

7517230

$1.49

19

SCREW

7517230

$1.49

20

Extender, Rack, Flat Black Wrinkle [AT]

1014768-418

$259.99
