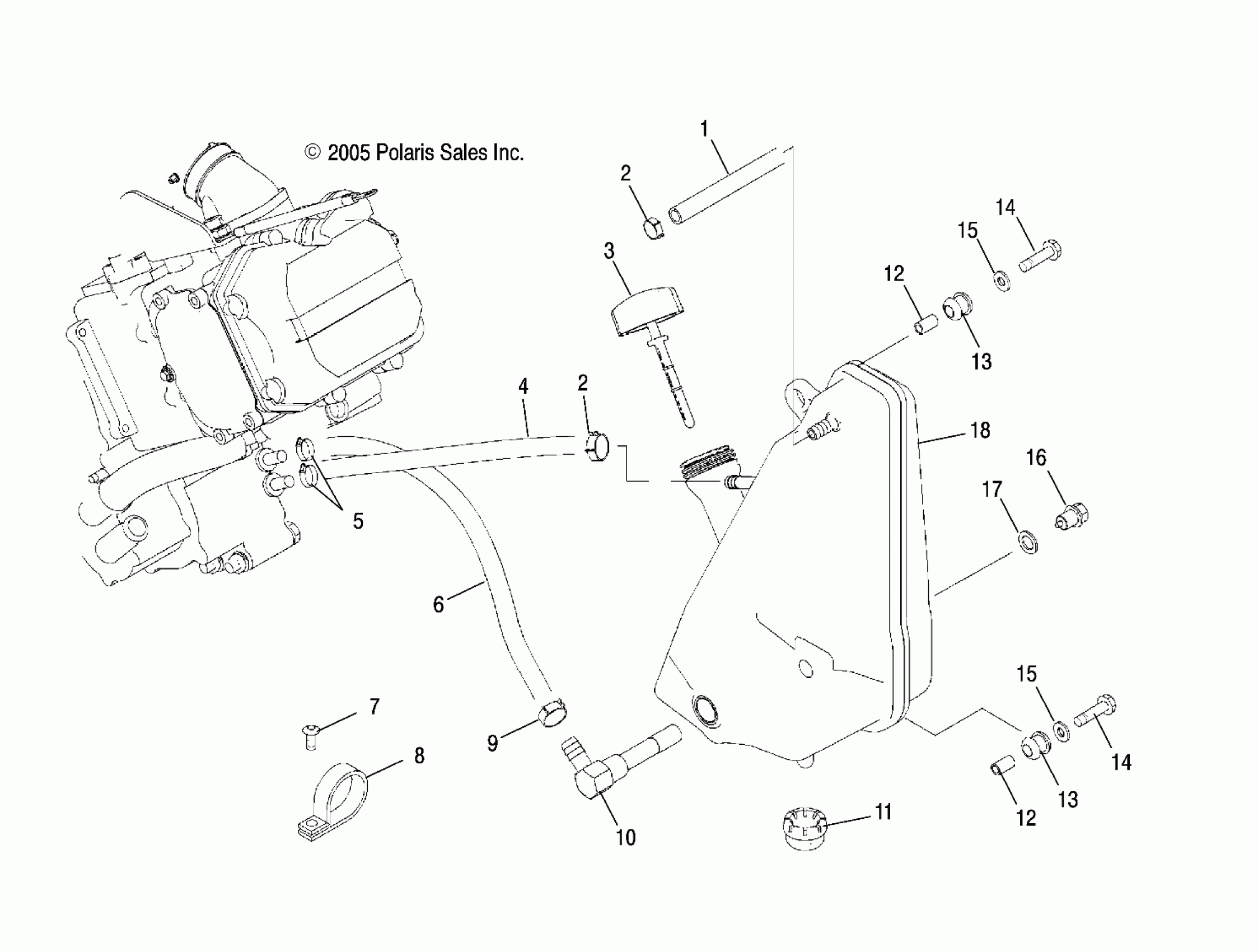

Polaris SPORTSMAN 500 EFI - A06MH50AQ OIL TANK - A06MH50AQ/AX/AY/AZ/AL/AT (4999200099920009B01) Diagram

#

Description
Price

1

Line, Breather

5413003

Unavailable

2

Clamp, Hose

7080699

$1.59

2

Clamp, Hose

7080699

$1.59

3

DIPSTICK, OIL TANK

5434574

$31.99

4

Hose, Breather

8450073-600

Unavailable

5

CLAMP-HOSE,.875-SS

7080474

$8.40

6

LINE, FUEL

8450096-100

Unavailable

7

SCREW

7512024

$4.79

8

CLAMP, HOSE

7080693

$5.59

9

CLAMP, HOSE

7081026

$7.99

10

SCREEN, OIL FILTER, 90 DEGREE

7052326

$39.99

11

GROMMET

5412507

$6.39

12

BUSHING, MOUNTING

5333204

$26.39

12

BUSHING, MOUNTING

5333204

$26.39

13

GROMMET, MOUNTING, RESERVOIR

5410828

$3.99

13

GROMMET, MOUNTING, RESERVOIR

5410828

$3.99

14

SCREW

7512242

$2.39

14

SCREW

7512242

$2.39

15

Washer, Flat

7558301

$1.49

15

Washer, Flat

7558301

$1.49

16

PLUG

7051524

$27.99

17

WASHER

5850135

$3.19

18

TANK, OIL

1261653

$259.99
