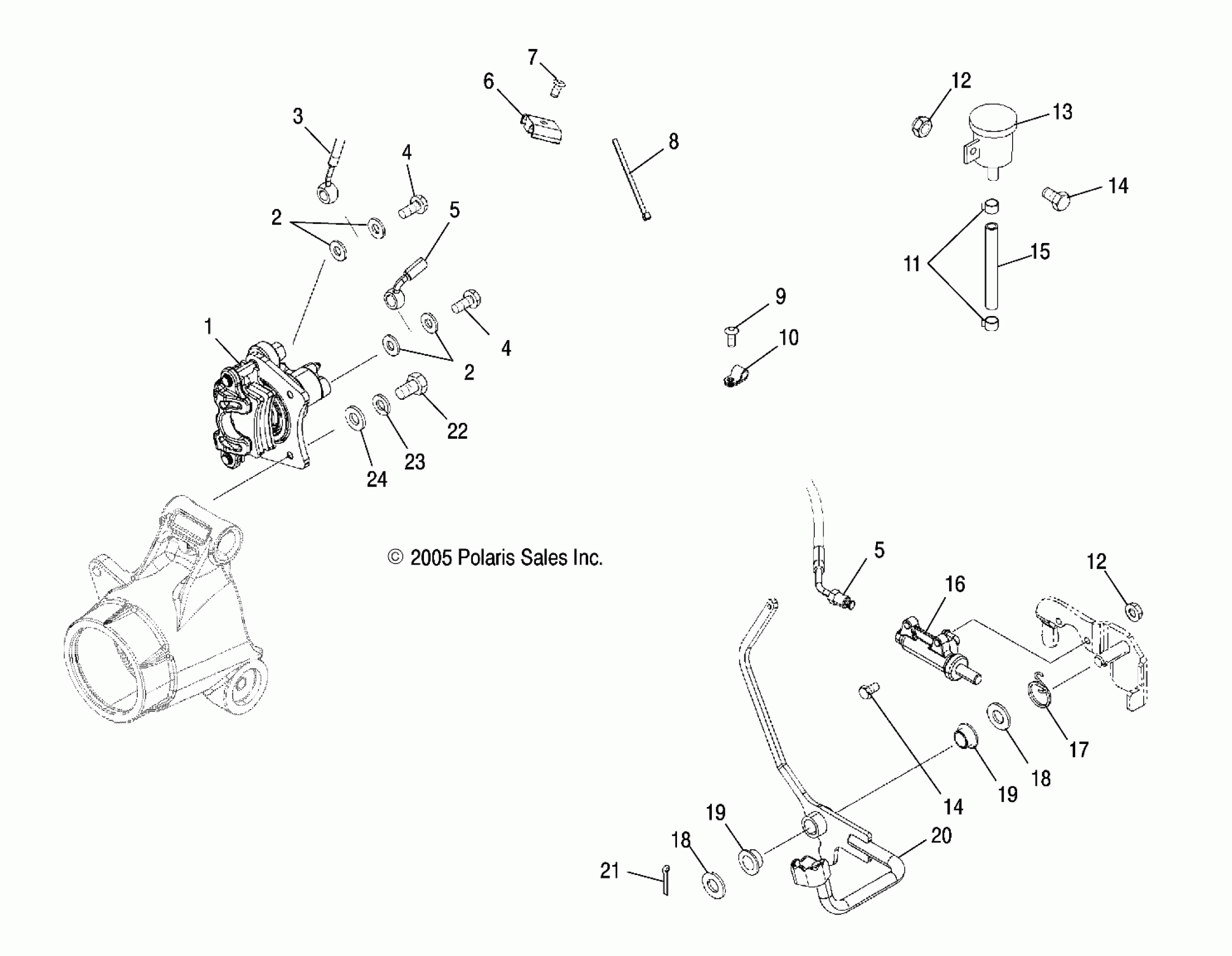

Polaris SPORTSMAN 500 EFI - A06MH50AQ MASTER CYLINDER, REAR/FOOT PEDAL - A06MH50AQ/AX/AY/AZ/AL/AT (4999200139920013B06) Diagram

#

Description
Price

-

Kit, Brake Line, Rear [Incl. 5]

2202708

$93.08

-

Kit, Brake Line, Rear [Incl. 3]

2202660

$109.99

1

Asm., Caliper

1910690

$288.87

2

Seal

5410988

$4.84

2

Seal

5410988

$4.84

3

Line, Brake, Caliper, Rear

1910760

$89.03

4

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

4

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

5

Line, Rear Brake

1910765

$89.03

5

Line, Rear Brake

1910765

$89.03

6

CLIP, RETAINING

7670126

$4.76

7

Screw

7517756

$1.19

8

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

9

SCREW

7512024

$4.76

10

Clamp

7080499

$5.56

11

HOSE CLAMP, RED

7080003

$1.19

12

NUT, NYLOK, FLANGED

7542153

$1.59

12

NUT, NYLOK, FLANGED

7542153

$1.59

13

Asm., Reservoir, Brake, Rear

1930854

Unavailable

14

Bolt

7512247

Unavailable

14

Bolt

7512247

Unavailable

15

Hose, Reservoir

1910315

$14.51

16

Asm., Master Cylinder, Brake, Rear

1910790

$174.03

17

SPRING-TORSION,BRAKE

7041750

$8.89

18

WASHER

7555919

$4.99

18

WASHER

7555919

$4.99

19

BUSHING, PIVOT, PEDAL

5433189

$3.97

19

BUSHING, PIVOT, PEDAL

5433189

$3.97

20

Pedal, Brake, Black [If built before 9/26/05]

1910814-067

Unavailable

20

Pedal, Brake, Black [If built after 9/26/05]

1911047-067

$53.17

21

PIN, COTTER

7661401

$0.79

22

SCREW, CAP

7512365

$1.19

23

WASHER, SPRING LOCK

7552901

$1.19

24

WASHER-.344X.688X.063 FL-Y

7558402

$0.99
