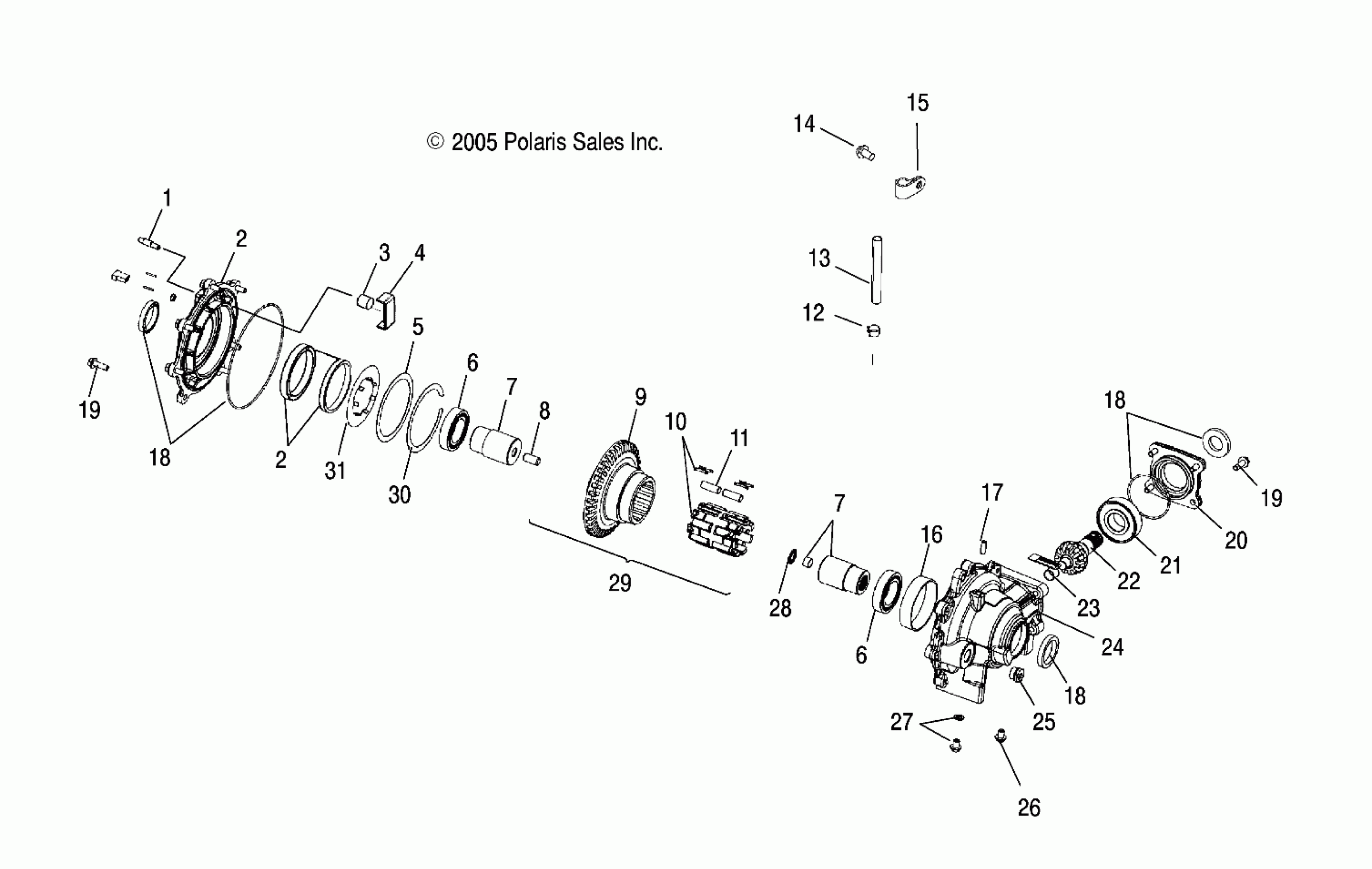

Polaris SPORTSMAN 500 EFI - A06MH50AQ HOUSING, FRONT (DEMAND DRIVE) - A06MH50AQ/AX/AY/AZ/AL/AT (4999205499920549D03) Diagram

#

Description
Price

-

Kit, Bolt

3233955

$31.75

-

Asm., Front Gearcase

1332428

$2,099.99

1

Screw, Set

3234163

Unavailable

2

Asm., Cover Plate [Incl. Output Cover, Insert and Coil]

3234159

$565.24

2

Asm., Cover Plate [Incl. Output Cover, Insert and Coil]

3234159

$565.24

3

Button, Thrust

3234375

$10.51

4

Plate, Thrust

3234165

$28.32

5

Shim, Armature Plate

3234161

$36.41

6

Bearing, Roller Ball

3233926

$59.52

6

Bearing, Roller Ball

3233926

$59.52

7

Asm., Race/Output Hub [Incl. 28]

3233953

$404.75

7

Asm., Race/Output Hub [Incl. 28]

3233953

$404.75

8

Pin, Dowel

3233928

$23.81

9

Clutch Housing/Ring Gear

3234376

Unavailable

10

Spring

----

Unavailable

10

Asm., Roll Cage [Incl. 31, Spring and Roll Cage]

3234377

$372.37

11

Kit, Roll

3233957

Unavailable

12

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

13

Line, Fuel

8450003-1525

Unavailable

14

SCREW

7512024

$4.76

15

CLAMP, HOSE

7080693

$5.56

16

Bushing

3234378

Unavailable

17

Fitting, Vent

3234379

$6.19

18

Kit, Minor Repair [Incl. O-Rings and Seals]

3233956

$76.89

18

Kit, Minor Repair [Incl. O-Rings and Seals]

3233956

$76.89

18

Kit, Minor Repair [Incl. O-Rings and Seals]

3233956

$76.89

19

Screw

3233918

$31.75

19

Screw

3233918

$31.75

20

Cover, Input

3233947

$72.84

21

Bearing, Roller Ball

3234112

$59.52

22

Shaft, Pinion, 11T

3233944

$839.99

23

BUSHING

----

Unavailable

24

GEARCASE, LH

----

Unavailable

25

Plug, Oil Fill

3233942

$32.37

26

Screw, Flange

7518364

$1.59

27

Asm., Drain Plug [Incl. Plug and Washer]

3233951

Unavailable

28

Bearing, Needle, Roller Thrust

3233929

$404.75

29

Asm., Clutch [Incl. 9-11]

3234380

Unavailable

30

Ring, Retaining, Internal

3234162

$27.78

31

Plate Armature

3234160

$109.27
