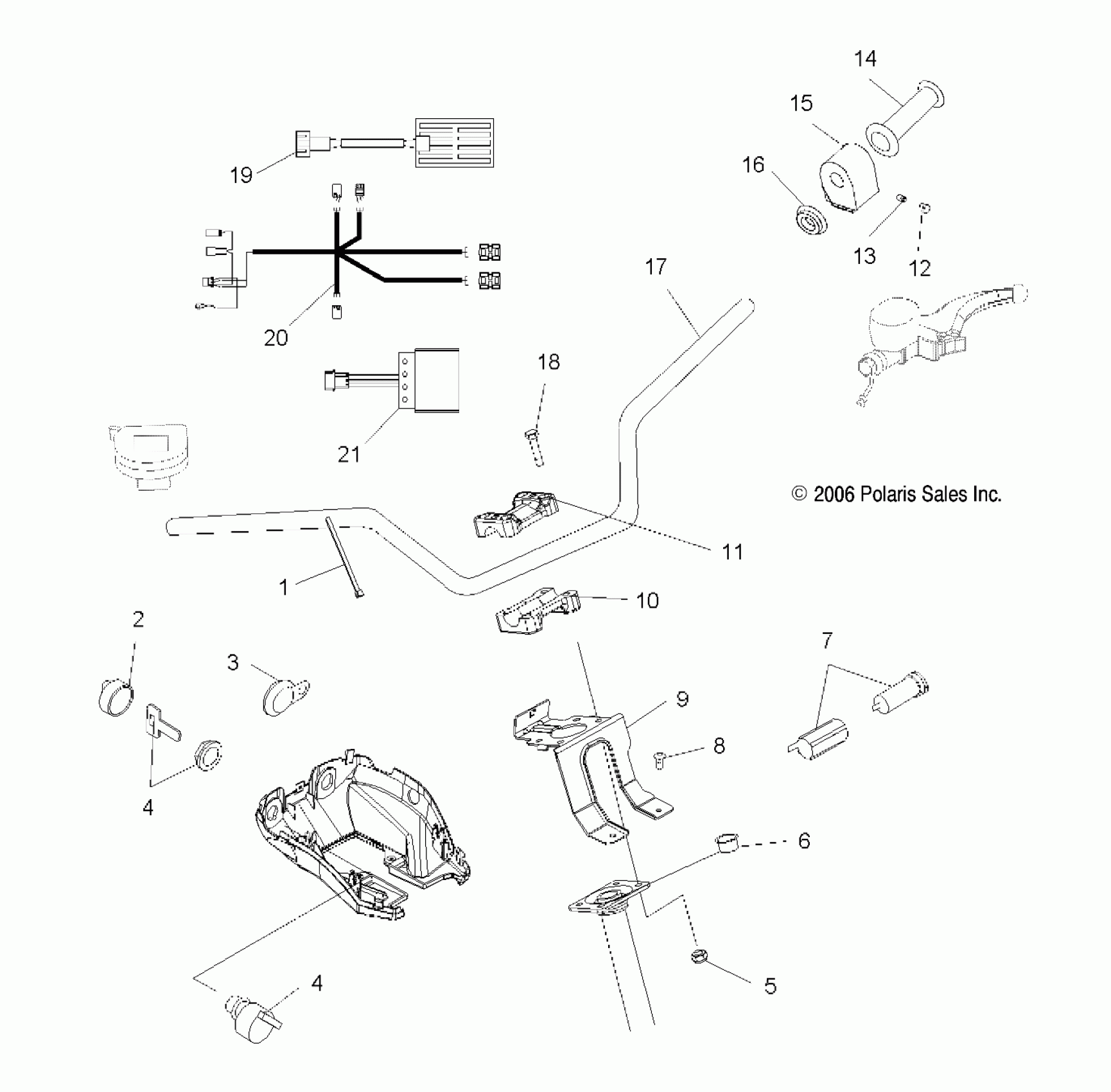

Polaris SPORTSMAN 500 EFI - A06MH50AQ HANDLEBAR and CONTROLS - A06MH50AQ/AX/AY/AZ/AL/AT (49ATVHANDLEBAR07500EFI) Diagram

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

KEY SWITCH KEY COVER

5433534

$12.35

Grommet

5412330

Unavailable

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

Nut, Nylok

7542122

$1.49

PLUG, STEERING POST

5435661

$4.79

Receptacle, Pod Mount, 12V

4010638

$24.27

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

BRACKET, POD MOUNTING, BLACK

5244969-067

$44.99

BLOCK, HANDLEBAR

5631973

$27.99

BLOCK, HANDLEBAR, PEGGED

5631972

$27.99

PLUG, HOLE

5432952

$5.59

SCREW, SET

7517625

$4.79

Grip, Handlebar, Black

5433834-070

$24.27

Control, LH, Hi/Lo/Off

4011385

$38.60

Spacer, Switch, LH

5433903

Unavailable

TUBE, HANDLEBAR, BLACK

5244581-067

$83.59

SCREW

7515189

Unavailable

Asm., Hand Warmer

2410567

$83.99

Harness, Wire, Warmers

2461213

$99.99

Module, Load Shed

4010970

Unavailable
