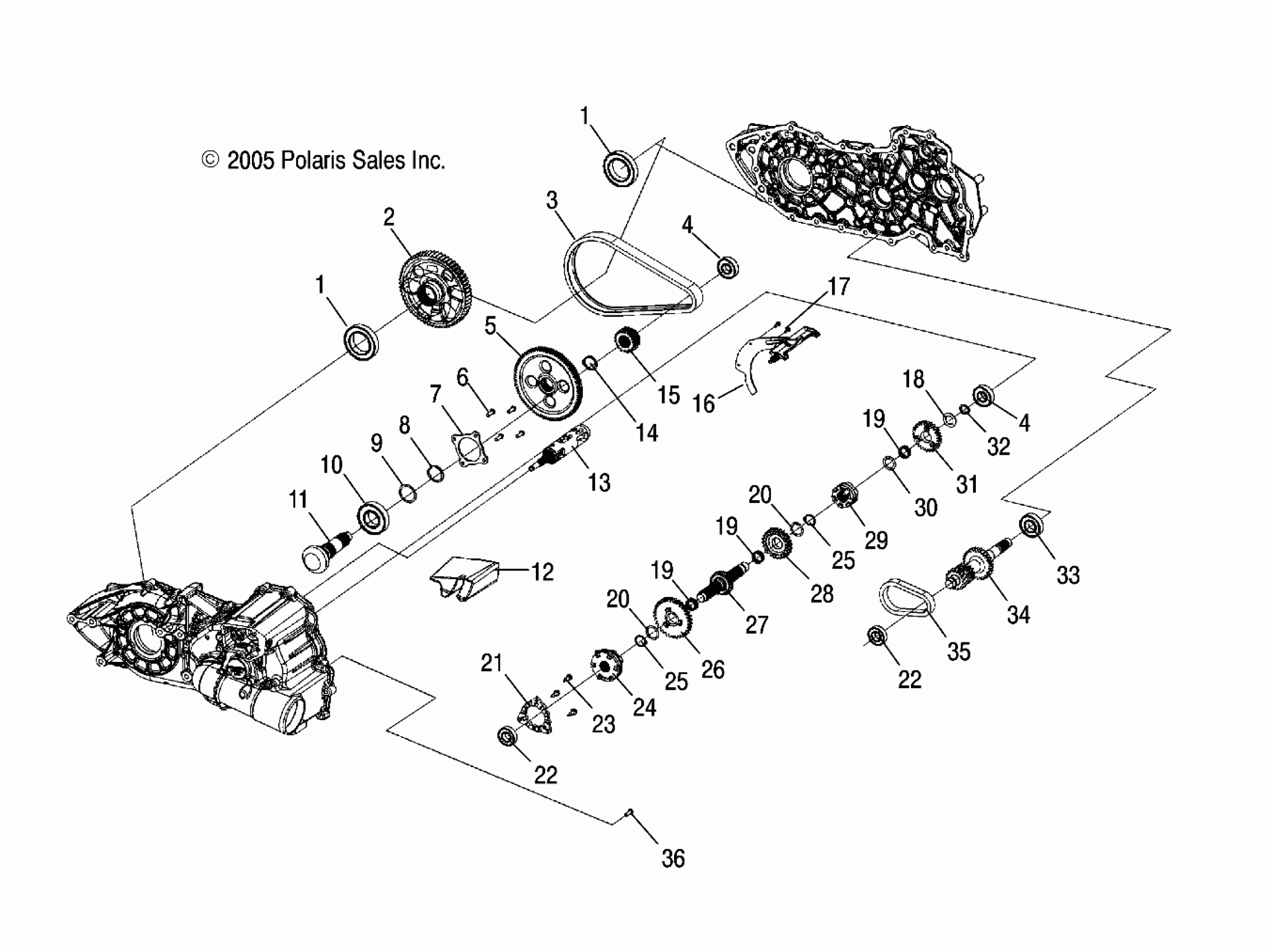

Polaris SPORTSMAN 500 EFI - A06MH50AQ GEARCASE, INTERNAL - A06MH50AQ/AX/AY/AZ/AL/AT (4999200059920005C14) Diagram

#

Description
Price

-

Asm., Gearcase

1332435

Unavailable

1

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

1

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

2

Subasm., Shaft, 59T, Final Output w/Bearings

3234421

$752.39

3

CHAIN

3234057

$263.99

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

5

GEAR, OUTPUT, 91T

3234062

$251.99

6

SCREW

3234086

$5.59

7

COVER, CENTER DRIVE BEARING

3234063

$27.99

8

RING, RETAINING

3233364

$6.39

9

Spacer

3234064

$3.41

10

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

11

Shaft, Center Drive

3234066

$216.67

12

Baffle, Oil

3234088

$30.55

13

DRUM, SHIFT

3234360

$171.99

14

RING, RETAINING

3233699

$7.19

15

SPROCKET, 19T

3234060

$239.99

16

DEFLECTOR, OIL

3234061

$23.99

17

SCREW

3233749

$5.59

18

Washer

3233176

$9.59

19

BEARING, NEEDLE

3233718

$35.99

19

BEARING, NEEDLE

3233718

$35.99

19

BEARING, NEEDLE

3233718

$35.99

20

WASHER

3233851

$10.39

20

WASHER

3233851

$10.39

21

PLATE, PARK

3233915

$39.99

22

Bearing, Ball

3234074

Unavailable

22

Bearing, Ball

3234074

Unavailable

23

SCREW

3233826

$9.59

24

Dog, Engagement

3234257

$143.99

25

RING, RETAINING

3233850

$10.39

25

RING, RETAINING

3233850

$10.39

26

GEAR, 33T

3233852

$231.99

27

Shaft, Reverse, 26T

3234071

$250.94

28

Sprocket, 24T

3233854

$149.59

29

Dog, Engagement

3234258

$91.99

30

WASHER

3233855

$10.39

31

Gear, 28T

3234068

$254.98

32

RING, RETAINING

3234067

$7.99

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

34

Asm., Input Shaft

3234075

$404.99

35

Chain, Silent

3233036

Unavailable

36

SCREW

3234086

$5.59
