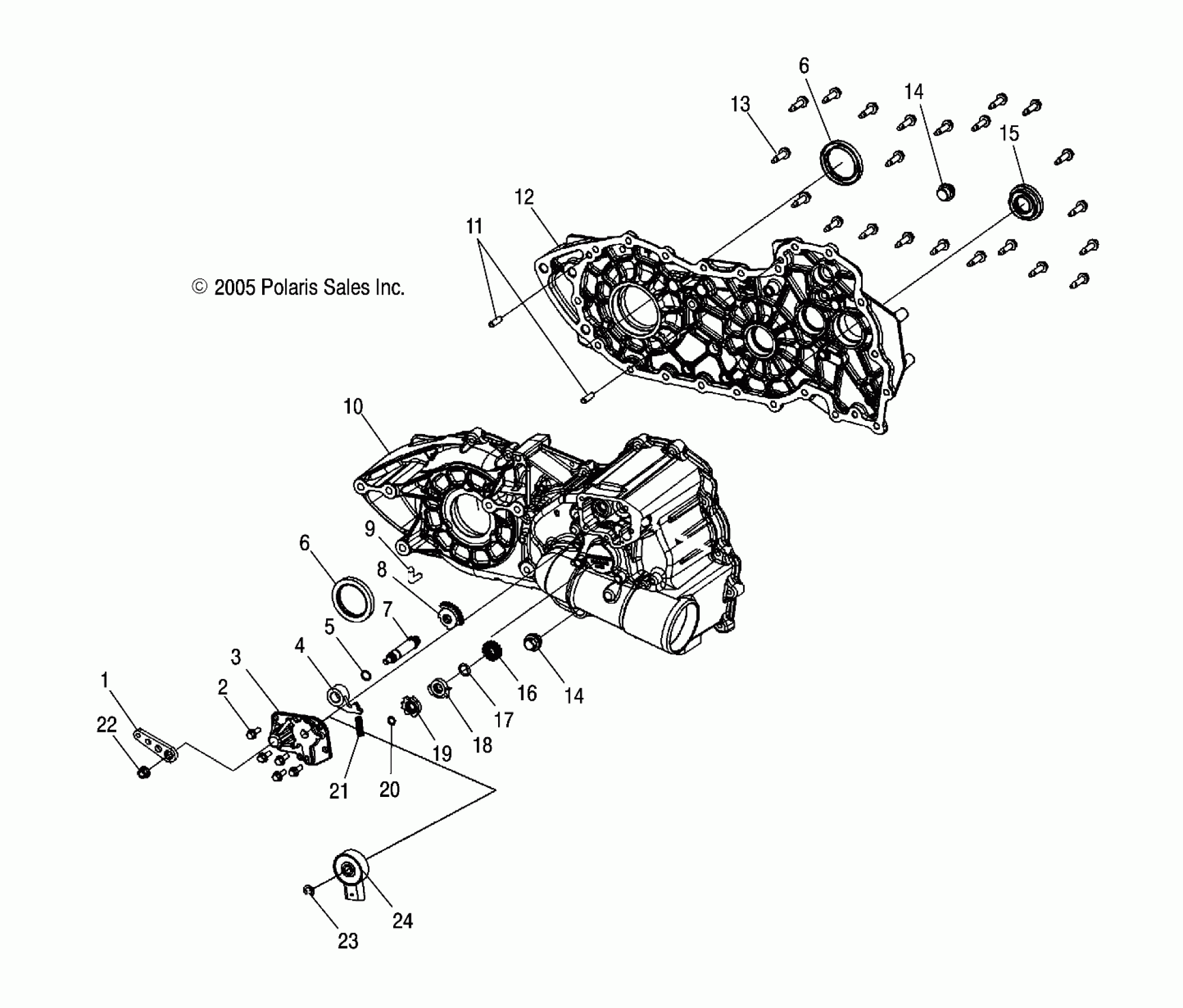

Polaris SPORTSMAN 500 EFI - A06MH50AQ GEARCASE - A06MH50AQ/AX/AY/AZ/AL/AT (4999200059920005C13) Diagram

#

Description
Price

-

Asm., Gearcase

1332435

Unavailable

1

Bellcrank

3233906

Unavailable

2

SCREW

3233826

$9.59

3

Cover, Gear

3234188

$107.99

4

Pawl, Detent

3233829

$31.99

5

O-RING

3233869

$5.59

6

SEAL, TRIPLE LIP

3233878

$32.37

6

SEAL, TRIPLE LIP

3233878

$32.37

7

SHAFT, SHIFT

3233831

$59.99

8

GEAR-SECTOR,31T

3233832

$31.99

9

TUBE, VENT

3234230

$9.59

10

Gearcase, RH

3234242

$609.99

11

PIN, DOWEL

3233247

$7.19

12

Gearcase, LH

3234056

Unavailable

13

Screw

3233846

Unavailable

14

Plug

3234087

$14.66

14

Plug

3234087

$14.66

15

Seal, Dual Lip

3233874

$31.99

16

GEAR, 16T

3233839

$31.99

17

O-Ring

3233548

$27.99

18

DISC, LOCKOUT

3234081

Unavailable

19

Star, Detent

3233909

$23.99

20

O-RING

3233076

$6.39

21

Spring, Compression

3234359

$8.79

22

NUT, LOCK

3233961

$2.79

23

RING, RETAINING

3233834

$10.39

24

SWITCH

3233835

Unavailable
