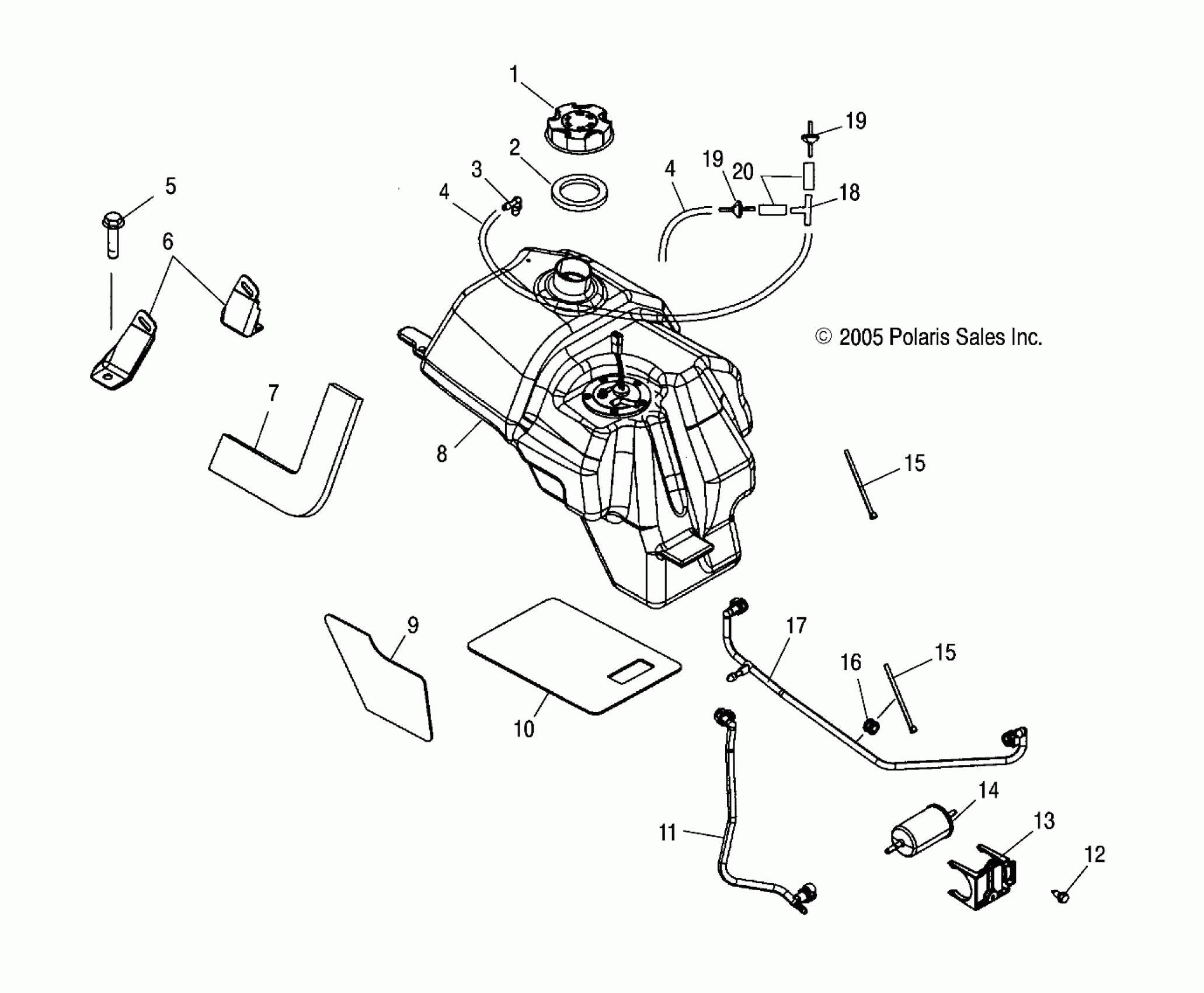

Polaris SPORTSMAN 500 EFI - A06MH50AQ FUEL TANK - A06MH50AQ/AX/AY/AZ/AL/AT (4999200139920013A14) Diagram

#

Description
Price

1

Cap, Gas Tank

5433687

$20.22

2

GASKET

5812123

$5.65

3

Vent, Tank

5431053

$19.99

4

LINE, FUEL

8360009-600

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Screw

7515179

$2.39

6

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

6

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

7

SEAL, FOAM

5812265

$27.99

8

Tank, Fuel

2520437

Unavailable

9

Foil

5813044

$20.22

10

Foil

5813045

$19.99

11

Asm., Fuel Line, Tank to Filter

2520443

$43.99

12

Bolt

7512232

$1.49

13

Mount, Fuel Filter

5436013

$8.79

14

Filter, Fuel

2520464

$39.99

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

Grommet

5411774

Unavailable

17

Asm., Fuel Line, Filter to Rail

2520543

$67.99

18

FITTING, T

7052048

Unavailable

19

VALVE, CHECK, VENT

7051011

Unavailable

19

VALVE, CHECK, VENT

7051011

Unavailable

20

LINE, OIL

8450061-600

Unavailable
